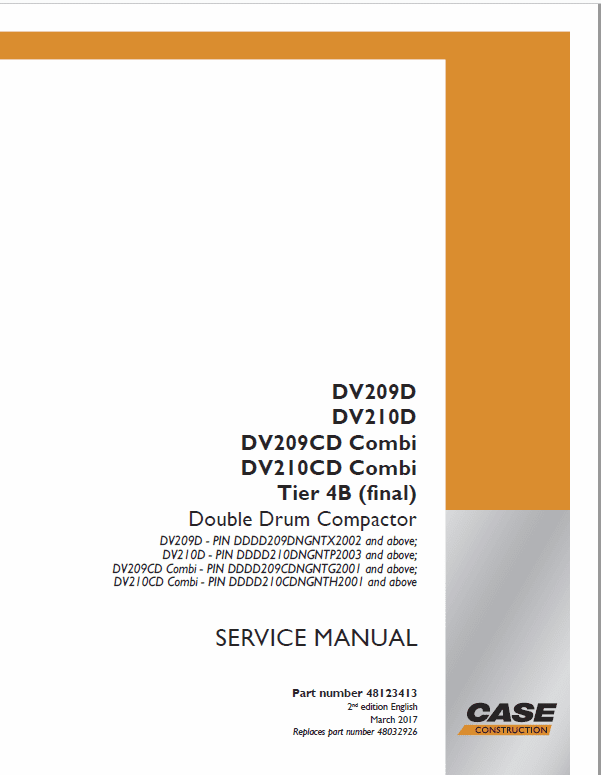

Case DV209D, DV210D, DV209CD, DV210CD Drum Compactor Service Manual Workshop Guide

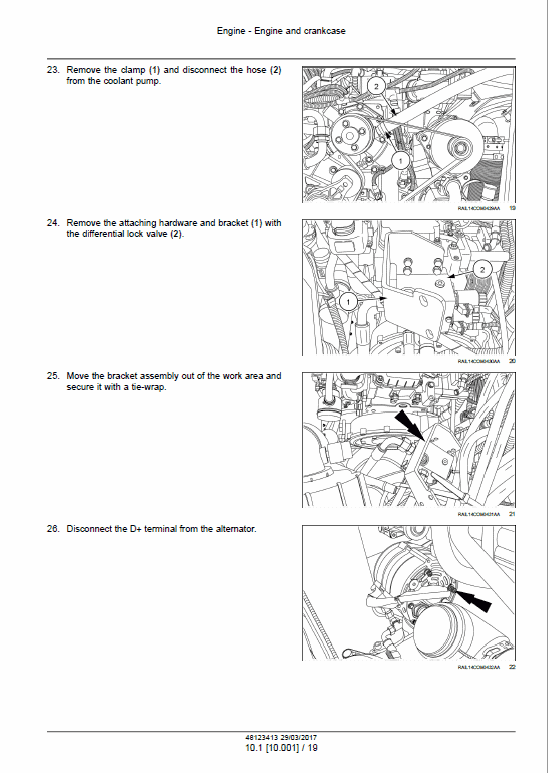

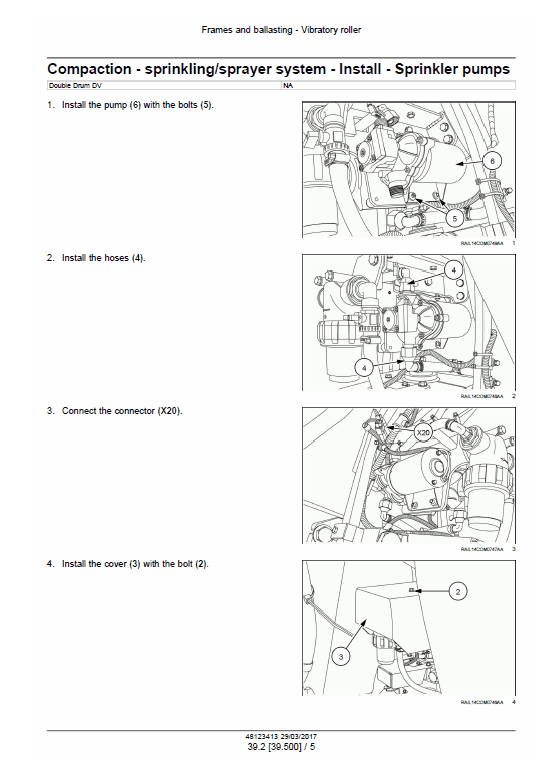

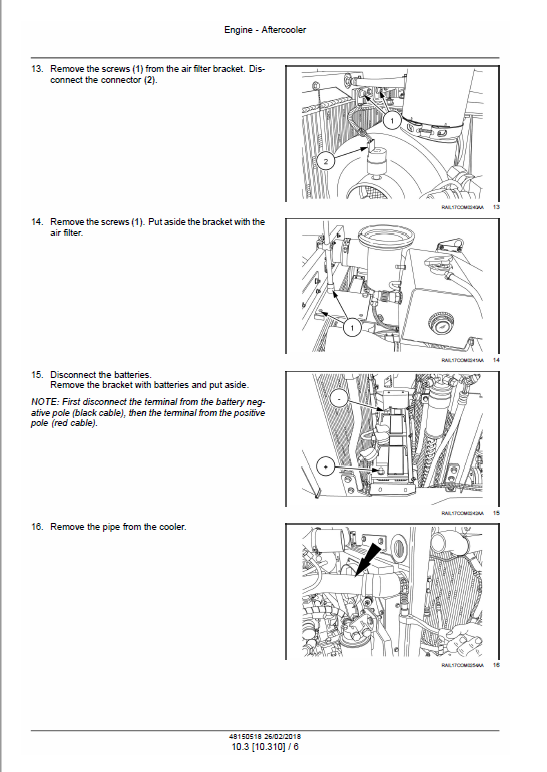

Manual Included: • Service Manual: 846 pages Specifications: • Brand: New Holland • Model: DV209D, DV210D, DV209CD, DV210CD • Type: Compactor • Manuals: Service Manual • Publication Numbers: 48123413 (Mar 2017) • Language: English • Format: PDF Description Table of Contents Content Introduction Hydraulic System Engine Frames and Ballasting Steering Wheels Cab Climate Control Electrical System Platform, Cab, Bodywork and Decals Electrical Schematics Hydraulic Schematics Manual Extract: Removal of terminals from the connectors Special tools are required to remove the terminal without damaging it or the connector in which it is inserted. Please use harness diagnostic and repair kit, part number 380040185, to assist you with repairs to wires, harnesses, and connectors. Because connectors are designed to firmly retain terminals, it is sometimes difficult to remove the terminals. Different style terminals have different removal procedures, but the most common terminals can be removed by using the procedure below. A terminal removal tool (Ex: pick or safety pin) is required to remove a push-to-seat terminal from a connector. 1. Disconnect the mating connector. 2. Remove any wire or TPA lock. 3. Grasp the wire and push the terminal to the foremost position in the cavity of the connector. Hold the terminal in this position. 4. The terminal locking tang should be separated from the ridge inside the connector cavity. This makes it easy for the terminal removal tool to unseat the terminal. 5. Locate the terminal lock tang in the connector cavity channel by looking into the connector from the mating end. 6. Insert an appropriately sized pick into the connector cavity from the mating end of the connector. 7. Depress the lock tang with the pick or pin to unseat the terminal. 8. Gently pull the wire to remove the terminal through the back of the connector.
