Case Farmall 75N, 85N, 95N, 105N, 105V Tractor Service Manual Workshop Guide

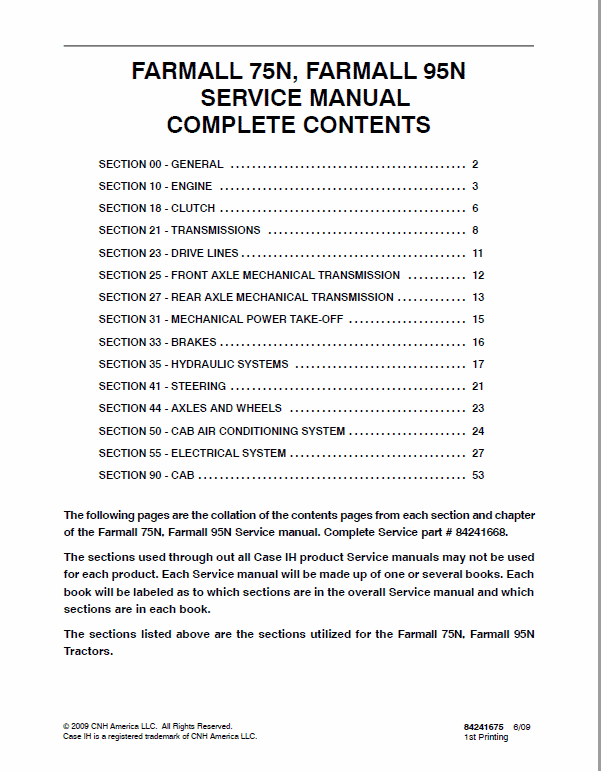

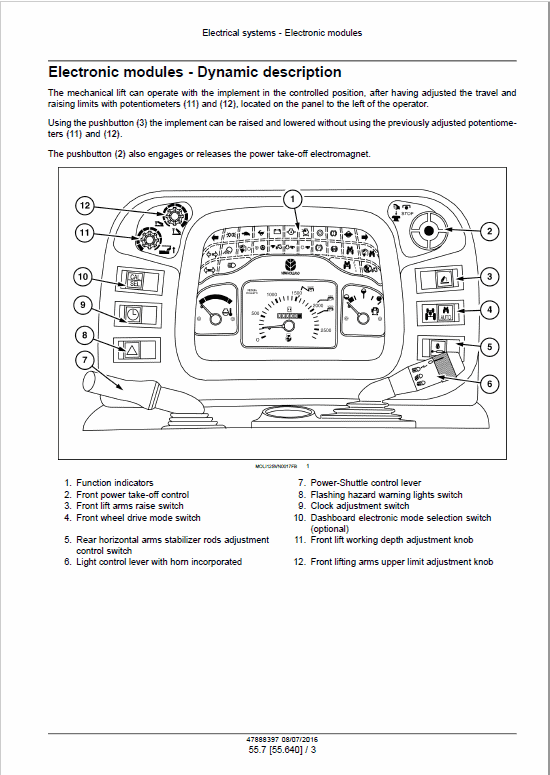

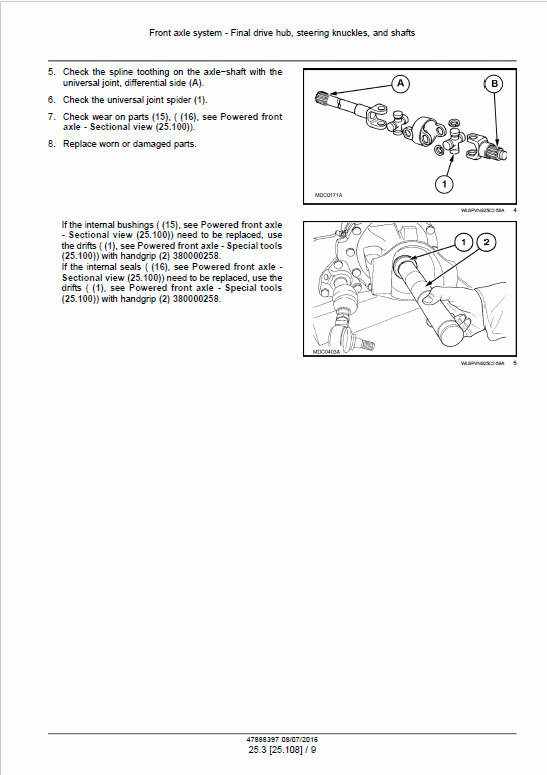

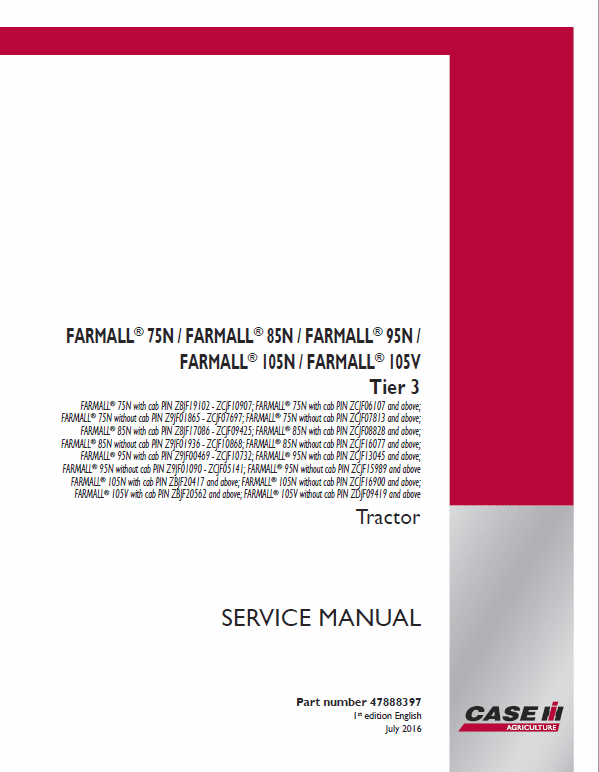

Manual Included: • Service Manual: 1668 pages and 2545 pages Specifications: • Brand: Case • Model: 75N with cab PIN Z8)F19102 – ZCJF 10907 75N with cab PIN ZCJF06107 and above 75N without cab PIN Z9FO1865 -ZCF07697 75N without cab PIN ZCJF07813 and above 85N with cob PIN ZB)F1 7086 – ZCJF09425 85N with cab PIN ZCJF08828 and above 85N without cab PIN Z9)F01936 – ZCIF 10868 85N without cab PIN ZCIF16077 and above 95N with cab PIN Z9)F00469 -ZCJF 10732 95N with cab PIN ZCJF13045 and above 95N without cab PIN Z9)F01090 – ZCJF05141 95N without cab PIN ZCJF 15989 and above 105N with cab PIN ZBIF20417 and above 105N without cab PIN ZCjF16900 and above 105V with cab PIN ZBIF20562 and above 105V without cab PIN ZD/F09419 and above • Type: Tractor • Manuals: Service Manual • Publication Numbers: 47888397 (July 2016) & 84241675 • Language: English • Format: PDF Description Table of Content ( Service Manual) Introduction Engine Clutch Transmission Four Wheel Drive Front Axle Rear Axle Power Take Off Brake and Controls Hydraulic Systems Hitches, Drawbars and implement couplings Steering wheels Cab climate control Electrical System Platform, cab, bodywork and decals Special Tools Manual Extract: Remote control valve – Install Refit the auxiliary control valves and the trailer brake valve as described here: • Fit the control valves together with the bracket and lock the bolts securing the bracket to the engine. • Connect the control valve tie rods. • Refit the two hydraulic hoses connected to the control valves. • Fit the trailer brake valve and lock it with the two retaining bolts. • Disconnect the six pipes connected to the trailer brake valve. • Check the oil level and top up if necessary. • Connect the battery negative lead. • With the engine running, carry out a few operations using the controls of the control valves and check there is no leakage from the pipes.
