Case WX148 Wheeled Excavator Service Manual Workshop Guide

Case WX148 Wheeled Excavator Service Manual Workshop Guide

Regular price $36.00 USD
Regular price Sale price $36.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

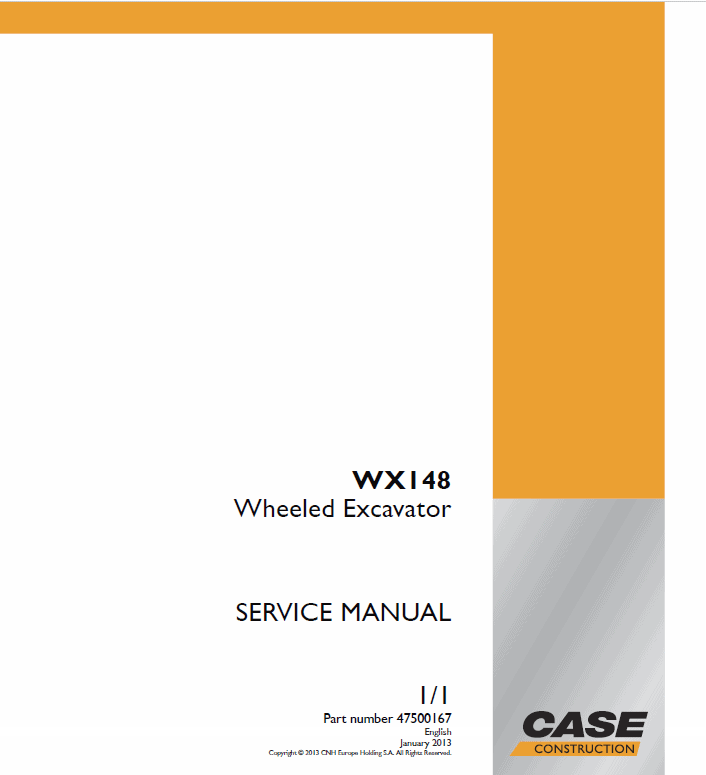

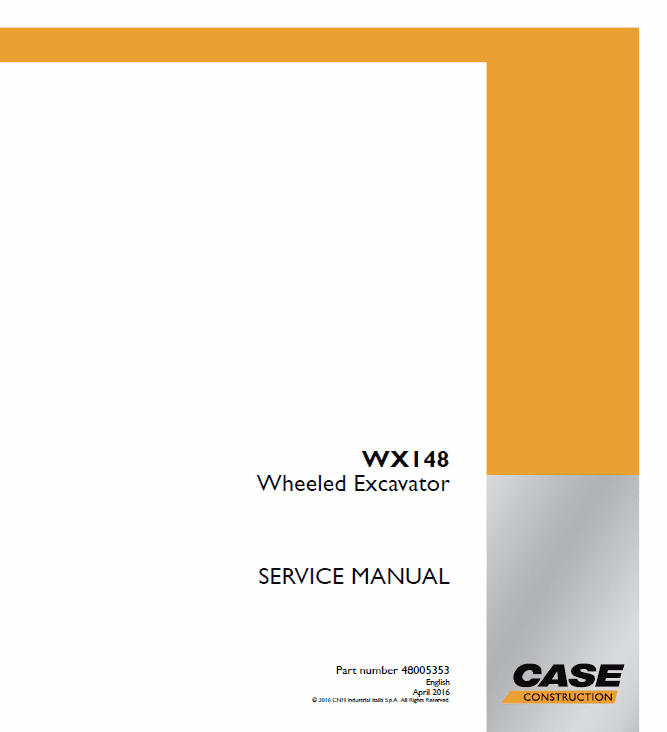

Manual Included: • Service Manual: 1177 Pages Specifications: • Brand: Case • Model: WX148 • Type: Excavator • Manuals: Service Manual • Publication Numbers: 47500167 (Jan 2013) and 48005353 (Apr 2016) • Language: English • Format: PDF Description Table of Contents Content Introduction Engine Transmission Four Wheel Drive Front Axle Rear Axle Brakes and Controls Hydraulic System Frames and ballasting Steering Wheels Cab climate Control Electrical System Boom, dippers and arm Platform, cab, bodywork and decals Special Index Tool Engines Fuel System Electrical Track and Suspension Power Train Hydraulics Mounted Equipment Manual Extract Inspection Removal and installation of slewing gearbox Park the machine on a level and firm surface. Lower the attachment to the ground. Lower the blade and the stabilizers to the ground. Engage the parking brake. Lock the upper structure. Stop the engine. Move both hydraulic control levers in all directions, to release possible residual pressure inside the hydraulic system. In order to remove the slewing gearbox (1) from its seat, it is necessary to remove the main valve (2). Gain access to the main valve by climbing the relevant machine plate from the left. Remove any residual pressure from the hydraulic tank by using the breather valve. ATTENTION: The procedure provides for the disconnection of the hydraulic lines which can contain a certain amount of hydraulic oil. Adequately protect yourself from contact. Adequately mark the lines to be disconnected from the main valve for a subsequent reassembly. Disassemble all hydraulic lines (2) from the main valve installed on the upper side, on the arm's side and on the engine's side. Install plugs to prevent the escape of the oil trapped inside the main valve and a possible introduction of dust and/or dirt. Moreover, on the engine side, disconnect all electric connections (3) after adequately marking them for a subsequent reassembly. Sling the main valve and loosen the 3 screws (1) which fasten it to the supporting bracket. After checking that no lines or electric cables interfere with the assembly to be removed, lift the assembly. NOTICE: Slowly lift the main valve, and avoid hitting the surrounding components.
