Challenger MT285, MT295 Tractor Service Manual Workshop Guide

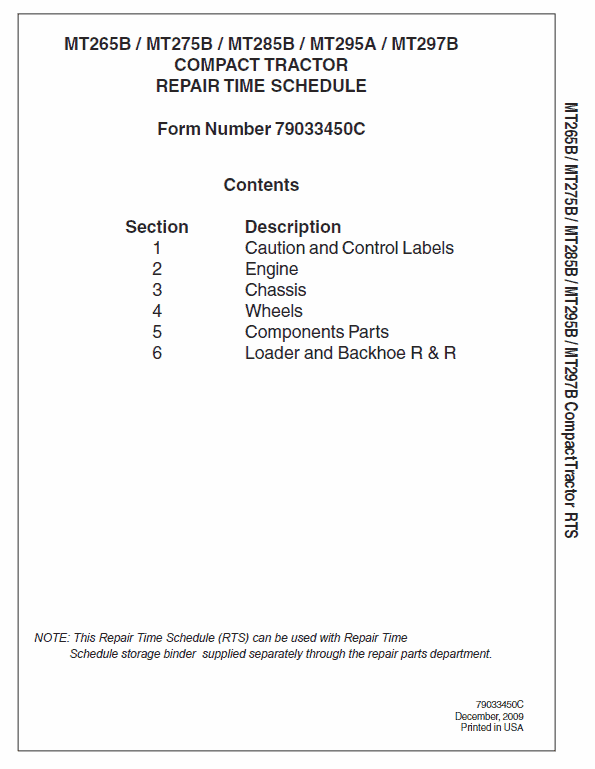

Challenger MT285, MT295 Tractor Workshop Manual : 1117 Pages Challenger MT285, MT295 Tractor Repair Schedule Manual : 175 Pages Format: PDF Book Number: 79028573 & 79033450C English Description Challenger MT285, MT295 Tractor Repair Workshop Manual Manual for: AGCO Challenger MT285, MT295 Tractor Format: PDF Book Number: 79028573 & 79033450C English Challenger MT285, MT295 Tractor Workshop Manual : 1117 Pages Challenger MT285, MT295 Tractor Repair Schedule Manual : 175 Pages Challenger MT285, MT295 Series Manual TABLE OF CONTENTS General Information Engine Major Components Clutch Transmission Hydrostatic Transmission Rear Axle And Brakes Front Axle Hydraulics Electrical Hydrostatic Steering Cab And Air Conditioning MT285, MT295 Manual Extract – Features of the Governor on This Engine As the injection pump casing forms a part of the cylinder block and governor casing a part of the gear case, the strength of the casings is very high. The injection pump gear and governor are held more securely accordingly. As the governor side bearing of the injection pump camshaft is held in the front of the cylinder block, the injection pump gear is installed on the supported part of the camshaft (overhung) and the governor is installed near the governor bearing, which prevents the governor from running out. As the overhung part becomes short, the size of the governor and related parts becomes compact. The oil in the gear case also lubricates the governor. Refrain from adjusting the tension arm and adapter spring. When changing the adapter spring, the parts adjusted in load together with the spring should be changed at the same time as a set component. (1) Injecting Volume for Starting (2) Control range by angleichung spring (3) Control range by full load stop (4) Torque point (5) Rated point (6) Control range by governor stopper
