Challenger MT297 Tractor Service Manual Workshop Guide

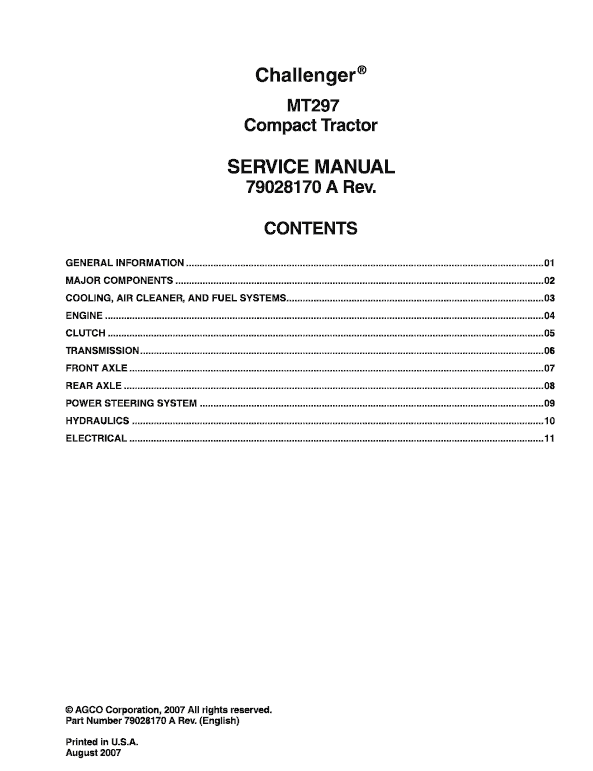

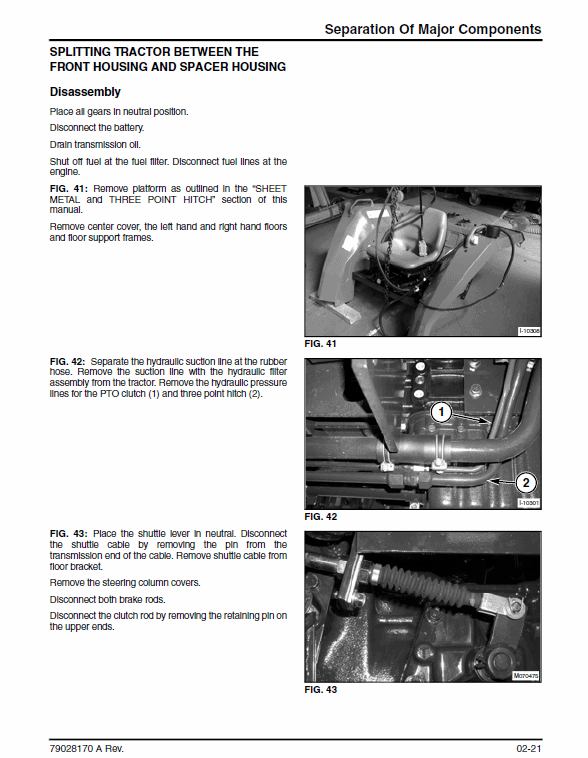

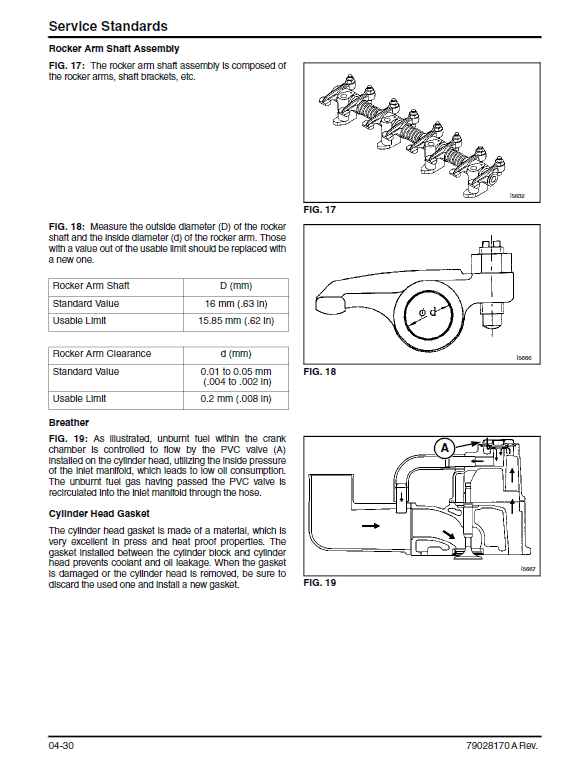

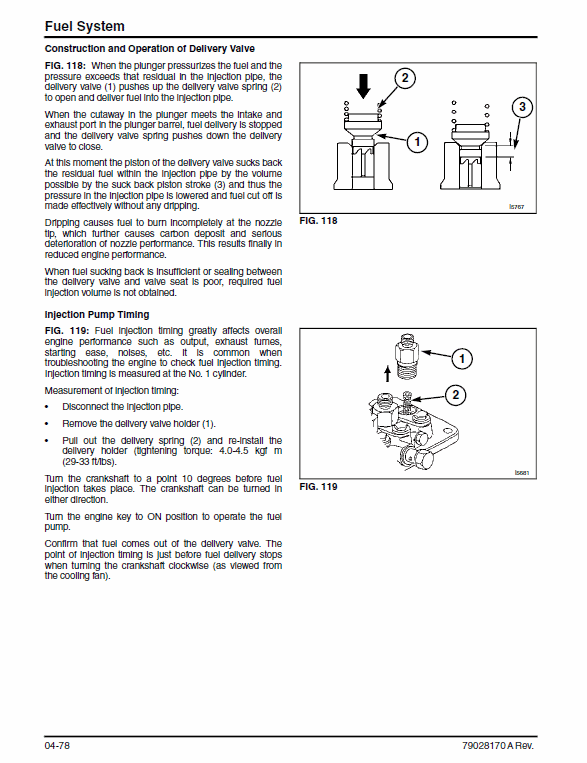

Challenger MT297 Compact Tractor Power Shuttle Manual : 1104 Pages Challenger MT297 Tractor Workshop Manual : 557 Pages Format: PDF Book Number: 790288170 & 79028569 English Description Challenger MT297 Tractor Repair Workshop Manual Manual for: AGCO Challenger MT297 Tractor Format: PDF Book Number: 790288170 & 79028569 English Challenger MT297 Compact Tractor Power Shuttle Manual : 1104 Pages Challenger MT297 Tractor Workshop Manual : 557 Pages MT297 Series Manual TABLE OF CONTENTS General Information Major Components Cooling, Air Cleaner and Fuel Systems Engine Clutch Transmission Front Axle Rear Axle Power Steering System Hydraulics Electrical MT297 Manual Extract – Cylinders, Pistons And Connecting Rods No cylinder liner is used for the cylinders of this engine, which leads to easy disassembling operation. The piston is made of aluminum alloy and the connecting rod bearings are made of aluminum based material which is very resistive to high load. A bushing is used in the small end of the connecting rod, the connecting rod bearings are under forced lubrication, and the piston and small end bushing are under splash lubrication. This leads to high durability against high speed, high temperature, and high load operation. Cylinder Block Water Pressure Proof of Cylinder Block: The cylinder block should be considered to be water tight if it is immune to 3 minute application of water pressure of k kgf/sq cm (71.1 psi) without any water leakage. Distortion of Cylinder Block Top: Measure the flatness of the top surface of the cylinder block by putting a straight rule diagonally across the four corners on the top and check for clearance with thickness gauges. If the measured clearance is exceeds 0.15 mm (.006 in), correct the surface on a surface grinder so that the clearance becomes less than 0.08 mm (.0031 in). The ground down limit should be 0.4 mm (0.16 in). Consider that excessive ground down affects the compression ratio.
