Challenger MT455D, MT465D, MT475D Tractor Service Manual Workshop Guide

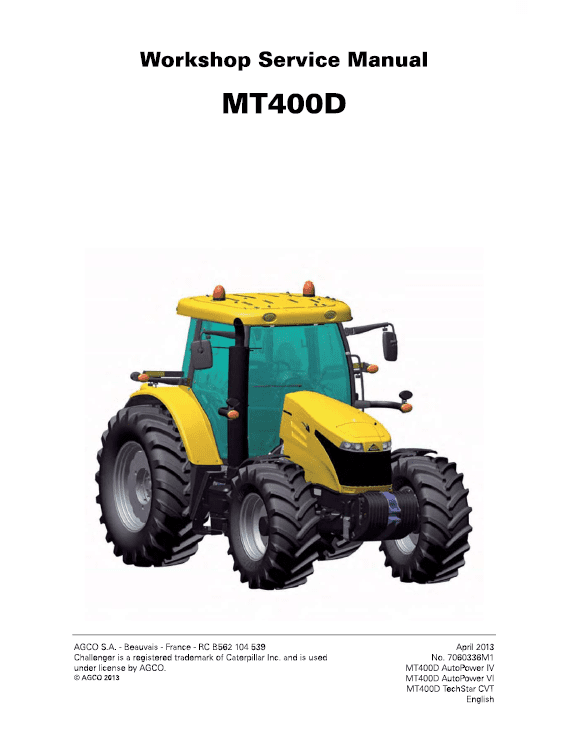

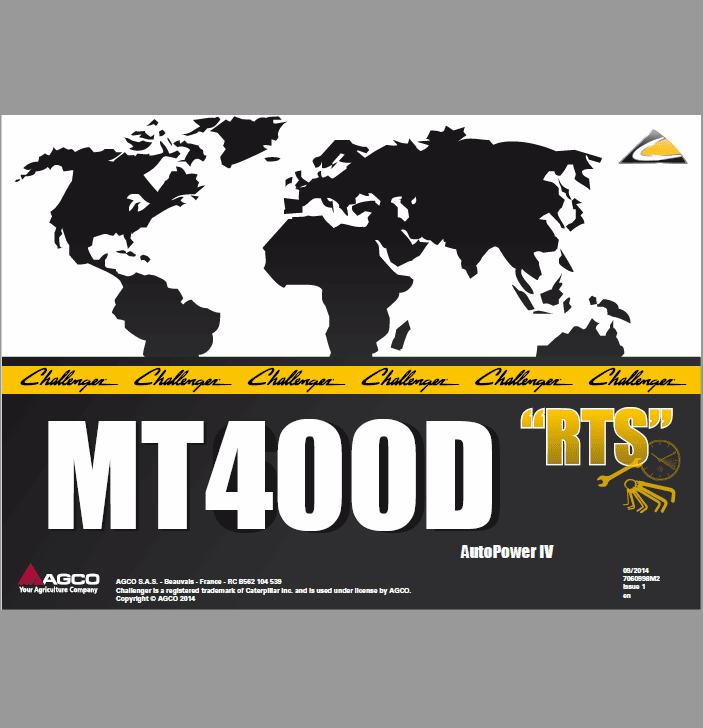

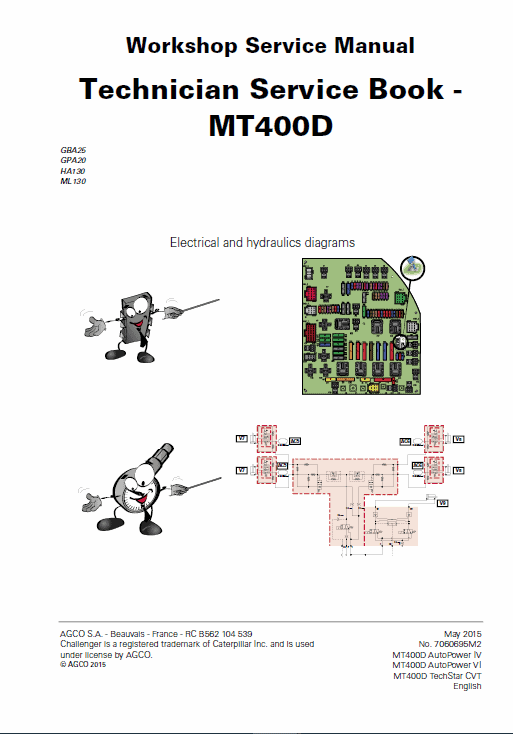

Challenger MT455D, MT465D, MT475D Tractor Workshop Manual : 3627 Pages Technician Service Book -MT400D -683 Pages Parts Catalog – 359 Pages AGCO Sisu Engine Manual: 116 Pages Description Challenger MT455D, MT465D, MT475D Tractor Repair Workshop Manual Manual for: AGCO Challenger MT4000D Series Tractor Format: PDF Publication Number: 7060336M1 English Issued April 2013 Challenger MT455D, MT465D, MT475D Tractor Workshop Manual : 3627 Pages Technician Service Book -MT400D -683 Pages Parts Catalog – 359 Pages AGCO Sisu Engine Manual: 116 Pages Challenger MT4000D  Series Manual TABLE OF CONTENTS Introduction Separating of assemblies Engine Clutch Gearbox Rear Axle Power take off Front Axle Electronics Accessories Service tools The Challenger MT455D, MT465D, MT475D Tractor Manual Extract High-pressure system, high flow rate The high-pressure system, high flow rate is supplied via a pump 19 cm³ (1.16 in³) fitted to the internal face of the right-hand cover plate. The pump 19 cm³ (1.16 in³) supplies, in the following order: – The trailer brake spool valve (1) which is priority (if fitted) – The front axle suspension (via a priority valve) – The high-pressure braking system (via a priority valve) – The auxiliary spool valves – The linkage valve on the left-hand cover plate A safety valve (2), set to 200 bar (2901 psi), is fitted in the delivery channel on the right-hand cover plate to protect the high-pressure system. Oil not used by the priority systems supplies the auxiliary spool valves fitted at the back of the linkage cover plate. Starting at the auxiliary spool valves, a line supplies the linkage spool valve located on the left-hand hydraulic cover plate. Excess flow from the high flow rate – high-pressure system returns to the pump inlet manifold without passing through the 150-micron filter (3). When the tractor is fitted with a suspended front axle or a high-pressure braking system, a priority unit (4) is fitted to the right-hand cover plate. This supplies the front suspension or the braking system as required. This unit has a flow limiter controlled via a load sensing line.
