Challenger MT635B, MT645B, MT655B, MT665B Tractor Workshop Manual Workshop Guide

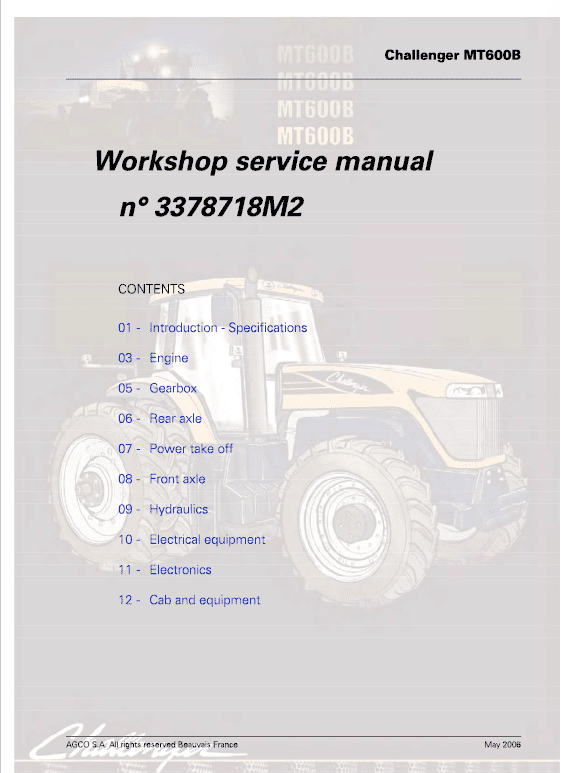

Challenger MT635B, MT645B, MT655B, MT665B Tractor Workshop Manual : 1243 Pages Parts Catalog MT600B: 439 Pages Description Challenger MT635B, MT645B, MT655B, MT665B Tractor Repair Workshop Manual Manual for: AGCO Challenger MT600B Series Tractor Format: PDF Book Number: 3378718M2 English Issued May 2016 Challenger MT635B, MT645B, MT655B, MT665B Tractor Workshop Manual : 1243 Pages Parts Catalog MT600B: 439 Pages Challenger MT600B Series Manual TABLE OF CONTENTS 01 – Introduction – Specifications 03 – Engine 05 – Gearbox 06 – Rear axle 07 – Power take off 08 – Front axle 09 – Hydraulics 10 – Electrical equipment 11 – Electronics 12 – Cab and equipment MT635B, MT645B, MT655B, MT665B Manual Extract – Calibration error Errors Description Solutions 41D1 Incorrect preliminary operations for transmission calibration Ensure that all steps are followed (see GUF404) 41D2 After switching the ignition off, the Autotronic 4 internal relay does not break down – Check the connection with the transmission control module (TR18) – Change the Autotronic 4 41D3 The control module does not control with the exact specified value Check the mobility of the transmission control by engaging limp home mode for example. 41D4 Transmission ratio adjustment not performed within 8 seconds time. Check the mobility of the transmission control by engaging limp home mode for example. 41D5 Step 1: Neutral position "0" cannot be found in the forward direction Step 2: Neutral position "0" cannot be found in the reverse direction Check the connection with the transmission control module (TR18) 41D6 Transmission ratio adjustment not performed within 8 seconds time. Check the mobility of the transmission control by engaging limp home mode for example 41D7 Step 2: The forward and reverse "0" neutral positions are more than 8° apart Check the connection with the transmission control module (TR18)
