Daewoo Mega M400-III Wheel Loader Service Manual Workshop Guide

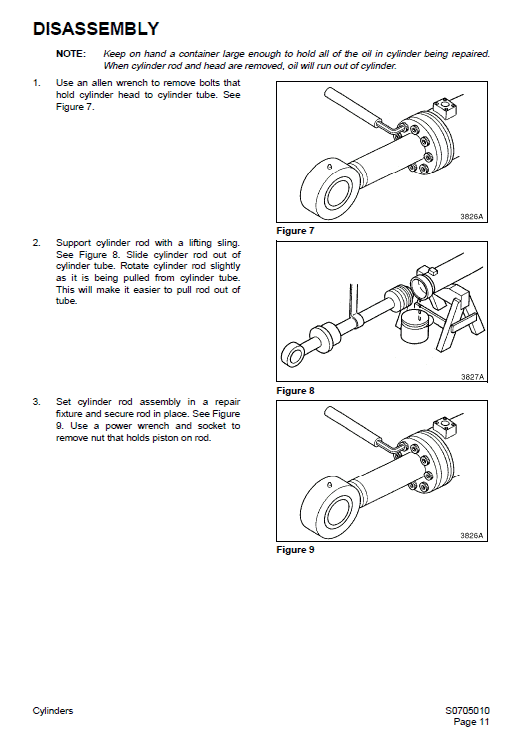

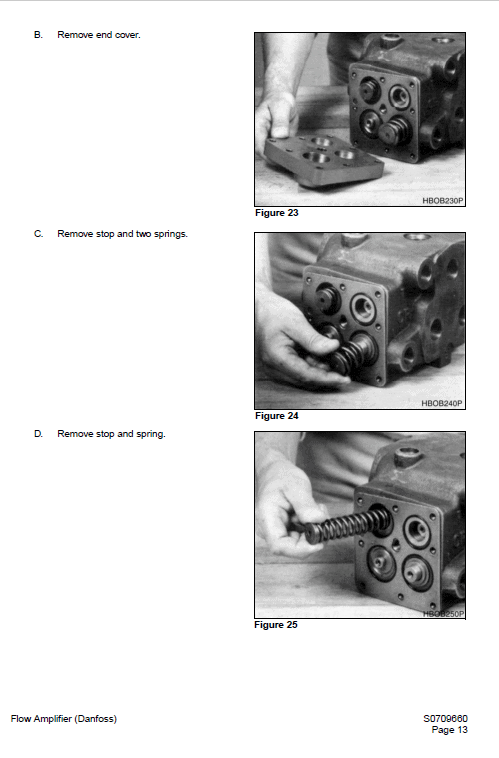

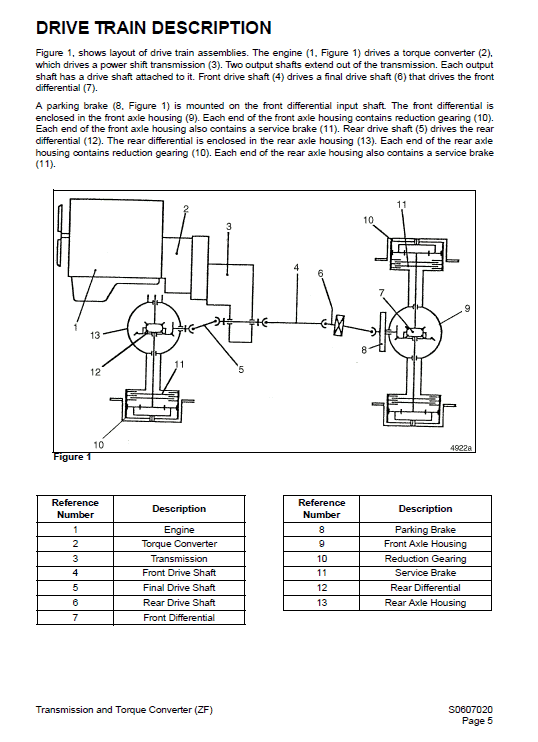

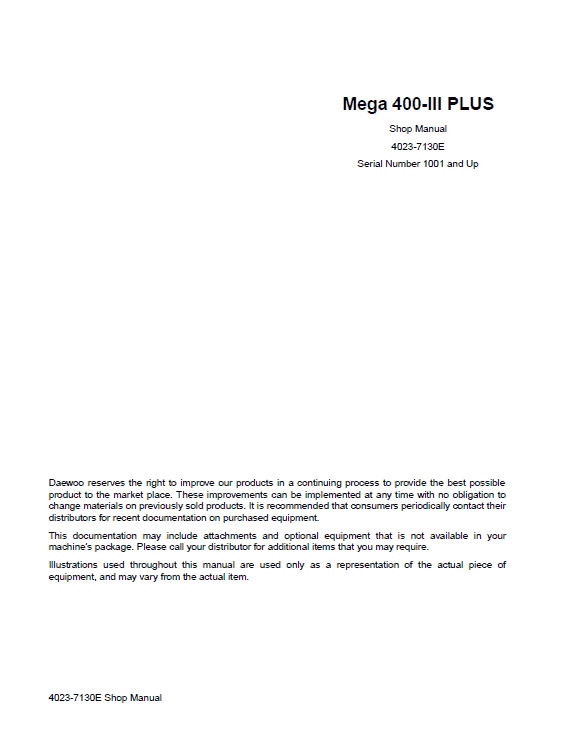

Manual Included: Shop Manual: 532 Pages Specifications: Brand: Doosan Model: Daewoo Mega M400-III Serial Number: 1001 and Up Type: Loader Manuals: Shop Manual Publication Numbers: 4023-7130E Language: English Format: PDF Description Table of Contents Safety Wheel Loader Safety …………………………………………………………………..S0103000 Specifications Specifications for Mega 400-III PLUS…………………………………………….S0203020 General Maintenance General Maintenance Procedures…………………………………………………S0302000 Standard Torques……………………………………………………………………….S0309000 Upper Structure Lower Structure and Chassis Engine and Drive Train Front Axle (Graziano) ………………………………………………………………….S0602070 Rear Axle (Graziano) …………………………………………………………………..S0602080 Air-Conditioner……………………………………………………………………………S0605020 Transmission and Torque Converter (ZF) ………………………………………S0607020 Hydraulics Hydraulic System………………………………………………………………………..S0702040 Accumulator……………………………………………………………………………….S0703000 Cylinders……………………………………………………………………………………S0705010 Main Pump (Vickers 35VQ Series) ………………………………………………..S0708330 Steering and Brake Pump (Vickers 3520V.QS)……………………………….S0708400 Brake Pedal Valve (Rexroth) ………………………………………………………..S0709200 Flow Amplifier (Danfoss)………………………………………………………………S0709660 Power Steering Unit…………………………………………………………………….S0709700 Hydraulic Schematic (Mega 400-III PLUS) ……………………………………..S0793020 Electrical System Electrical System………………………………………………………………………..S0802050 Electrical Schematic (Mega 400-III PLUS) ……………………………………..S0893020 Attachments How to Use The Guide Manual This manual provides information for servicing the Wheel Loader. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components. The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages. A schematic of each of the major engine systems is provided at the beginning of the section of the manual devoted to troubleshooting and repairing that particular system. Basic safety precautions are list in the Safety section of the Service Manual. Additional safety precautions are list in the Safety section of the owner/operation/maintenance publication. Specific safety warnings for all these publications are provided in the description of operations where hazards exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
