Daewoo Solar S018-VT Excavator Service Manual Workshop Guide

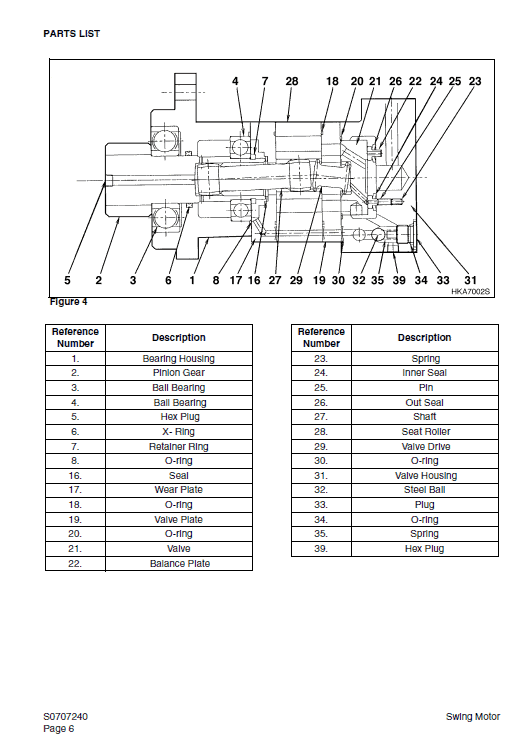

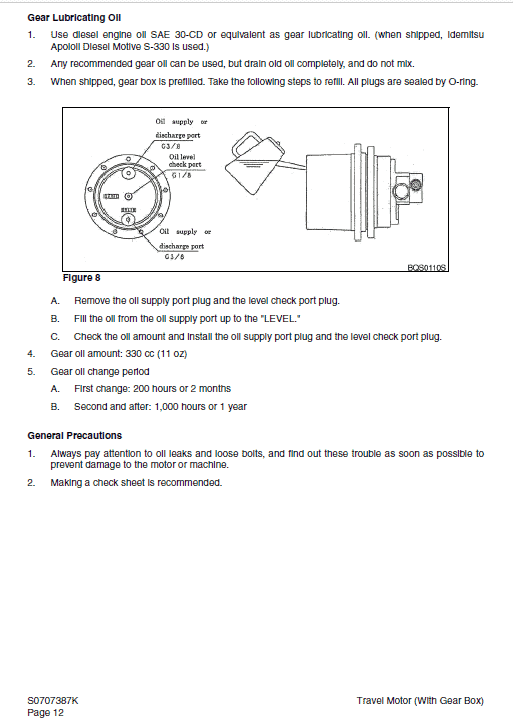

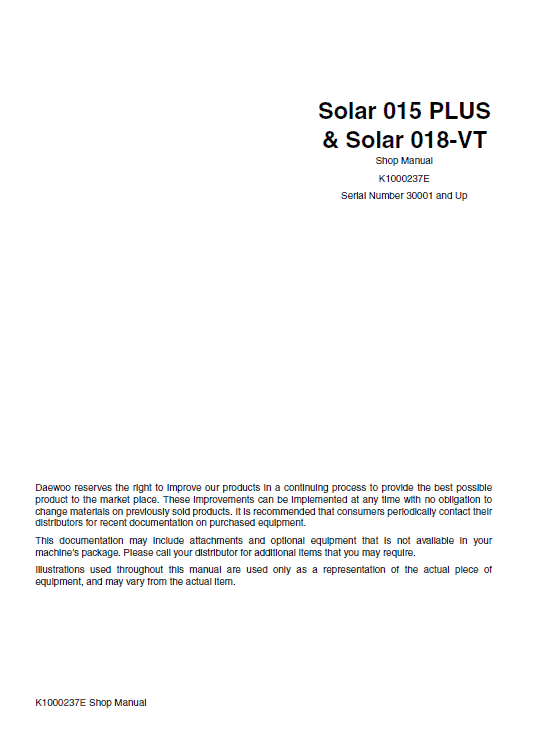

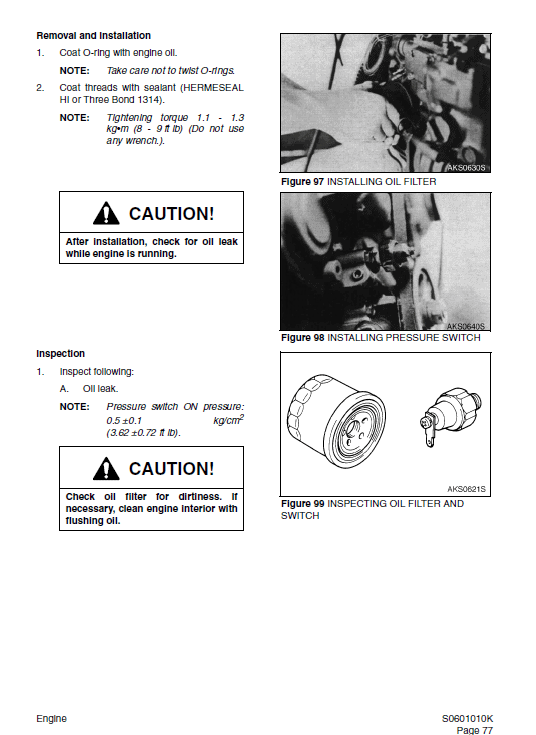

Manual Included: Shop Manual: 478 Pages Specifications: Brand: Doosan Model: Daewoo Solar S018-VT Serial Number: 30001 and Up Type: Excavator Manuals: Shop Manual Publication Numbers: K1000237E Language: English Format: PDF Description Table of Contents Safety Track Excavator Safety………………………………………………………………..S0102040 Specifications Specifications for Solar 015 PLUS / Solar 018-VT …………………………..S0202140 General Maintenance General Maintenance Procedures…………………………………………………S0302000 Standard Torques……………………………………………………………………….S0309000 Upper Structure Lower Structure and Chassis Track Assembly ………………………………………………………………………. S0505130K Engine and Drive Train Engine……………………………………………………………………………………. S0601010K Hydraulics Center Joint (Swivel)……………………………………………………………………S0704060 Cylinders……………………………………………………………………………………S0705080 Swing Motor……………………………………………………………………………….S0707240 Travel Motor (With Gear Box)……………………………………………………. S0707387K Pilot Control Valve (Work Lever / Joystick)…………………………………..S0709485C Main Pump……………………………………………………………………………… S0708495K Main Control Valve ………………………………………………………………….. S0709495K Solenoid Valve………………………………………………………………………… S0709517K Hydraulic Schematic (Solar 015 PLUS / Solar 018-VT)…………………. S0792155K Electrical System Electrical System …………………………………………………………………….. S0802210K Electrical Schematic (Solar 015 PLUS / Solar 018-VT)…………………. S0892155K Attachments Boom and Arm………………………………………………………………………… S0902130K Bucket……………………………………………………………………………………….S0904000 How to Use The Guide Manual This manual provides information for servicing the Excavator. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components. The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages. A schematic of each of the major engine systems is provided at the beginning of the section of the manual devoted to troubleshooting and repairing that particular system. Basic safety precautions are list in the Safety section of the Service Manual. Additional safety precautions are list in the Safety section of the owner/operation/maintenance publication. Specific safety warnings for all these publications are provided in the description of operations where hazards exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
