Daewoo Solar S140LC-V Excavator Service Manual Workshop Guide

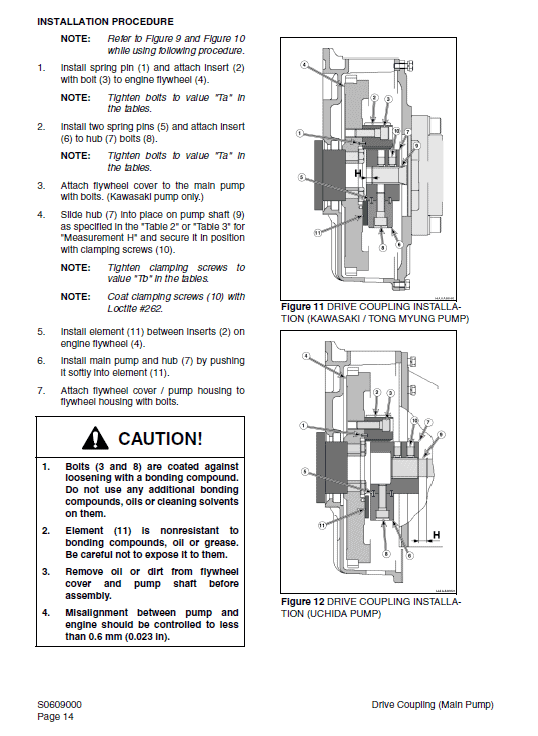

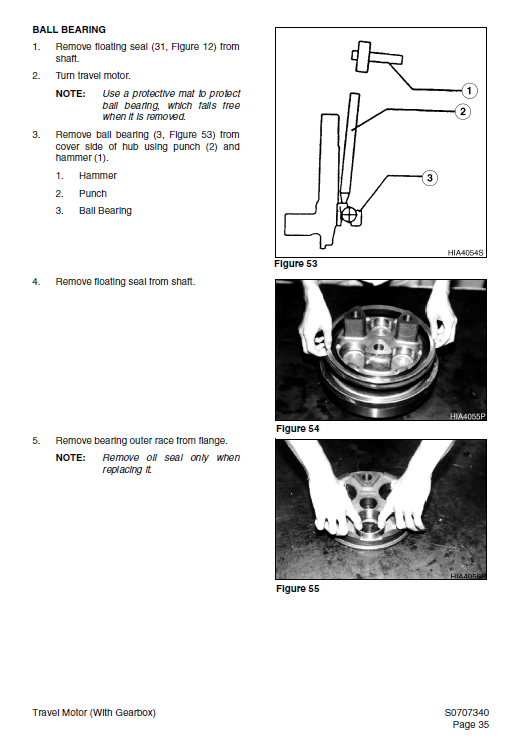

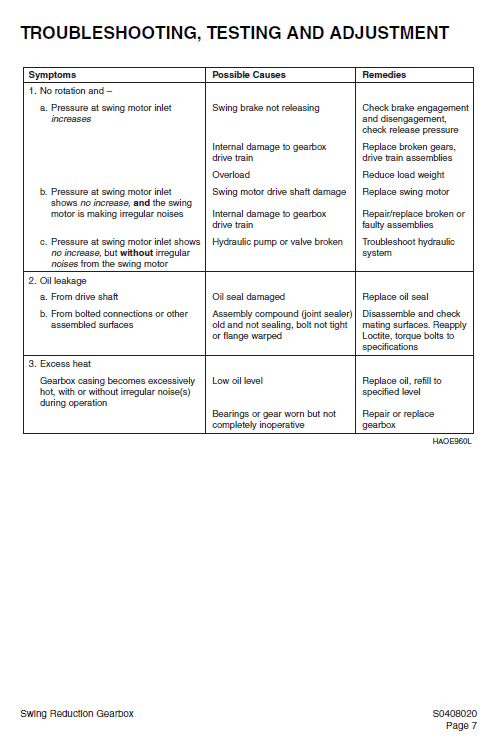

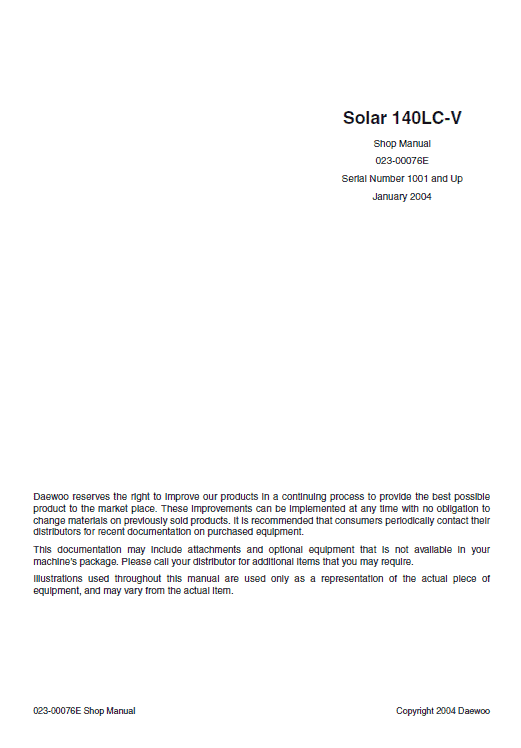

Manual Included: Shop Manual: 636 Pages Specifications: Brand: Doosan Model: Daewoo Solar S140LC-V Serial Number: 1001 and Up Type: Excavator Manuals: Shop Manual Publication Numbers: 023-00076E (Jan 2004) Language: English Format: PDF Description Table of Contents Safety Track Excavator Safety………………………………………………………………..S0102000 Specifications Specifications for Solar 140LC-V…………………………………………………..S0202130 General Maintenance General Maintenance Procedures…………………………………………………S0302000 Standard Torques……………………………………………………………………….S0309000 Upper Structure Cab ……………………………………………………………………………………….. S0402040K Counterweight…………………………………………………………………………….S0403000 Fuel Tank…………………………………………………………………………………..S0405000 Fuel Transfer Pump…………………………………………………………………….S0405500 Swing Bearing…………………………………………………………………………….S0407000 Swing Reduction Gearbox……………………………………………………………S0408020 Lower Structure and Chassis Track Assembly ………………………………………………………………………….S0505050 Engine and Drive Train Air Conditioner ………………………………………………………………………… S0605060K Drive Coupling (Main Pump)…………………………………………………………S0609000 Hydraulics Hydraulic System Troubleshooting, Testing and Adjustment …………….S0702055 Accumulator……………………………………………………………………………. S0703010K Cylinders……………………………………………………………………………………S0705000 Swing Motor……………………………………………………………………………….S0707220 Travel Motor (With Gearbox) ………………………………………………………..S0707340 Main Pump (With Regulator) ………………………………………………………..S0708340 Main Control Valve ……………………………………………………………………..S0709420 Pilot Control Valve (Work Lever / Joystick)………………………………….. S0709451K Travel Control Valve (With Damper)…………………………………………… S0709820K Hydraulic Schematic (S140LC-V)………………………………………………….S0792210 Electrical System Electrical System …………………………………………………………………….. S0802220K Electrical Schematic (S140LC-V) ………………………………………………….S0892210 Attachments Boom and Arm……………………………………………………………………………S0902030 Bucket……………………………………………………………………………………….S0904000 How to Use The Guide Manual This manual provides information for servicing the Excavator. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components. The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages. A schematic of each of the major engine systems is provided at the beginning of the section of the manual devoted to troubleshooting and repairing that particular system. Basic safety precautions are list in the Safety section of the Excavator Service Manual. Additional safety precautions are list in the Safety section of the owner/operation/maintenance publication. Specific safety warnings for all these publications are provided in the description of operations where hazards exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
