Daewoo Solar S220LC-6 Excavator Service Manual Workshop Guide

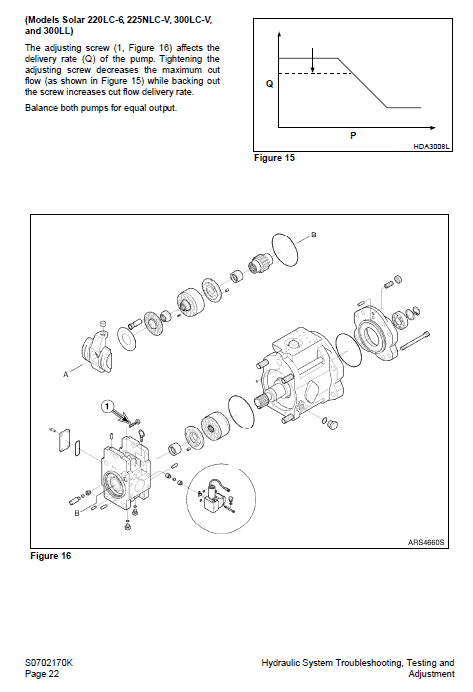

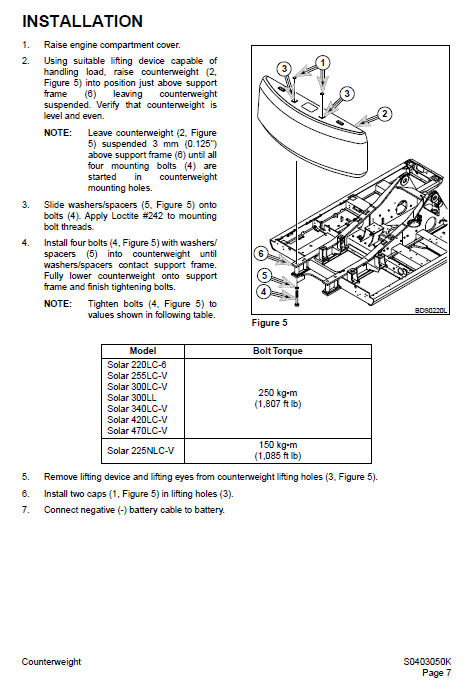

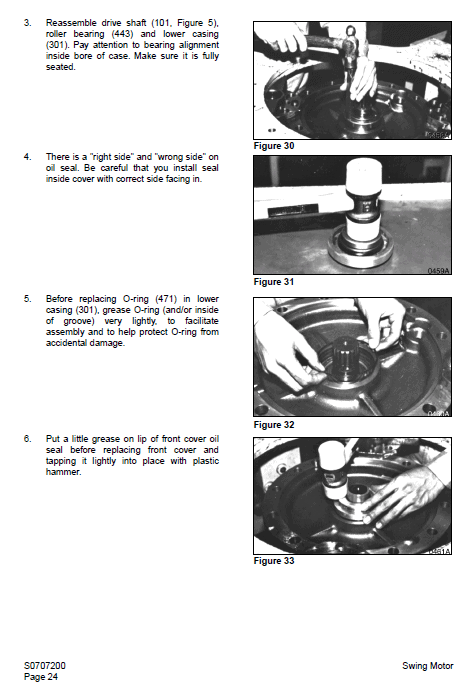

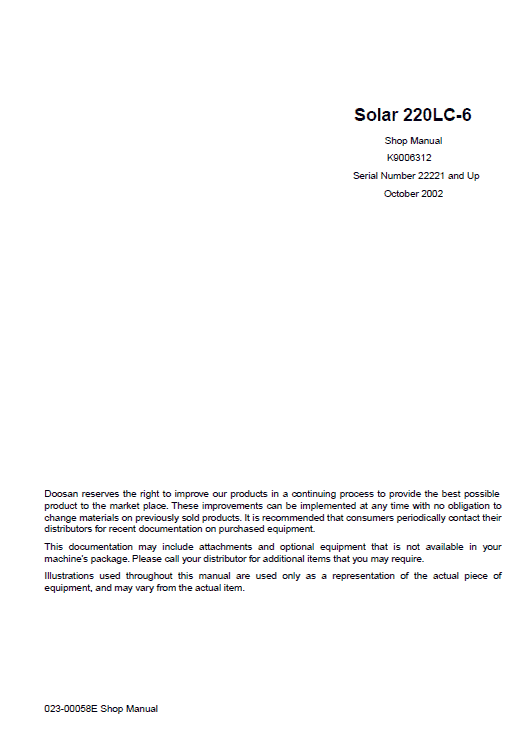

Manual Included: Shop Manual: 666 Pages Specifications: Brand: Doosan Model: Daewoo Solar S220LC-6 Serial Number: 22221 and Up Type: Excavator Manuals: Shop Manual Publication Numbers: K9006312( Oct 2002) Language: English Format: PDF Description Table of Contents Safety Track Excavator Safety………………………………………………………………..S0102000 Specifications Specifications for Solar 220LC-6 ……………………………………………….. S0205015K General Maintenance General Maintenance Procedures…………………………………………………S0302000 Standard Torques……………………………………………………………………….S0309000 Upper Structure Cab ……………………………………………………………………………………….. S0402040K Counterweight…………………………………………………………………………. S0403050K Fuel Tank……………………………………………………………………………….. S0405005K Fuel Transfer Pump…………………………………………………………………….S0405500 Swing Bearing…………………………………………………………………………….S0407000 Swing Reduction Gearbox………………………………………………………… S0408015K Lower Structure and Chassis Track Assembly ………………………………………………………………………….S0505030 Engine and Drive Train Air-Conditioner………………………………………………………………………… S0605060K Drive Coupling (Main Pump)…………………………………………………………S0609000 Hydraulics Hydraulic System Troubleshooting, Testing and Adjustment …………. S0702170K Accumulator……………………………………………………………………………. S0703010K Center Joint (Swivel)……………………………………………………………………S0704010 Cylinders……………………………………………………………………………………S0705000 Swing Motor……………………………………………………………………………….S0707200 Travel Motor (With Gearbox) (GM35VL)…………………………………………S0707330 Main Pump (With Regulator) ………………………………………………………..S0708320 Main Control Valve (Kayaba)…………………………………………………….. S0709401K Pilot Control Valve (Work Lever / Joystick)………………………………….. S0709451K Travel Control Valve (With Damper)…………………………………………… S0709820K Hydraulic Schematic (Solar 220LC-6/225NLC-V) ………………………… S0792105K Electrical System Electrical System …………………………………………………………………….. S0802220K Electrical Schematic (Solar 220LC-6/225NLC-V)…………………………. S0892105K Attachments Boom and Arm……………………………………………………………………………S0902010 Bucket……………………………………………………………………………………. S0904015K How to Use The Guide Manual This manual provides information for servicing the Excavator. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components. The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages. A schematic of each of the major engine systems is provided at the beginning of the section of the manual devoted to troubleshooting and repairing that particular system. Basic safety precautions are list in the Safety section of the Service Manual. Additional safety precautions are list in the Safety section of the owner/operation/maintenance publication. Specific safety warnings for all these publications are provided in the description of operations where hazards exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
