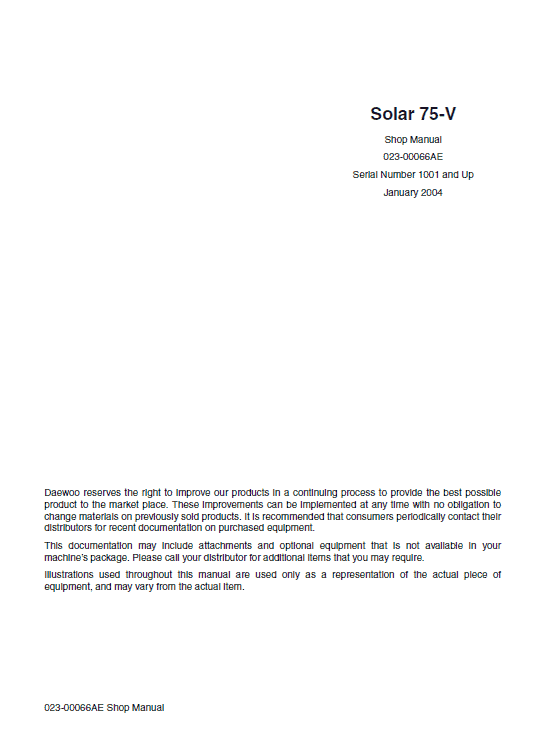

Daewoo Solar S75-V Excavator Service Manual Workshop Guide

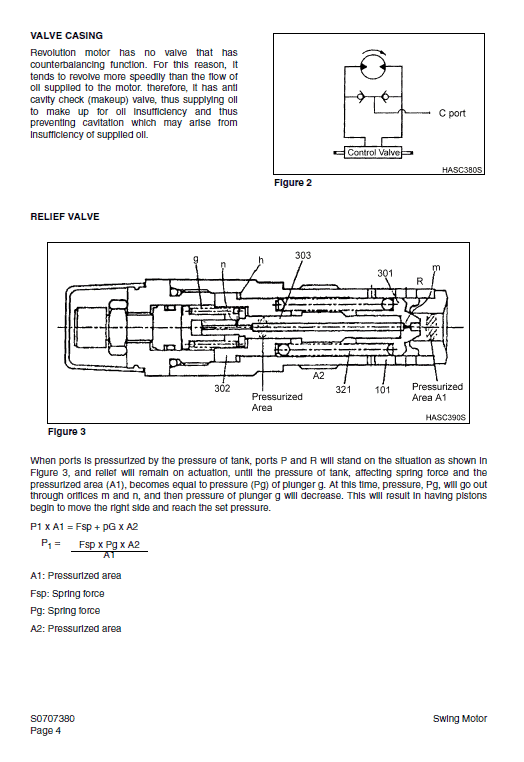

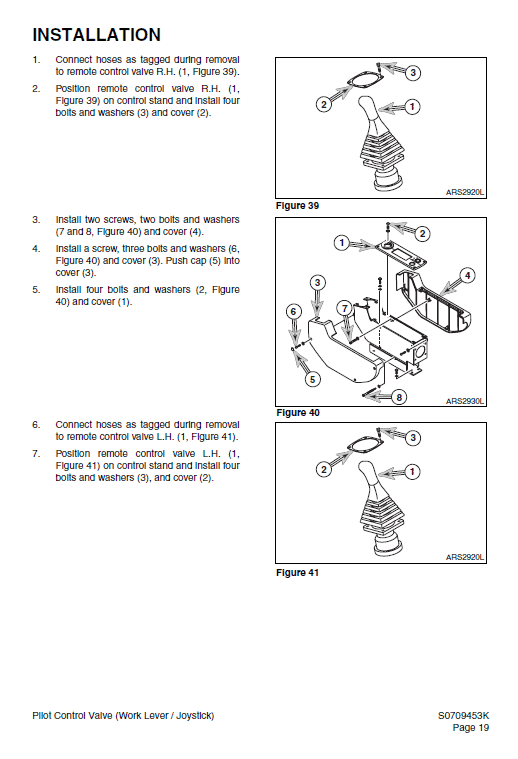

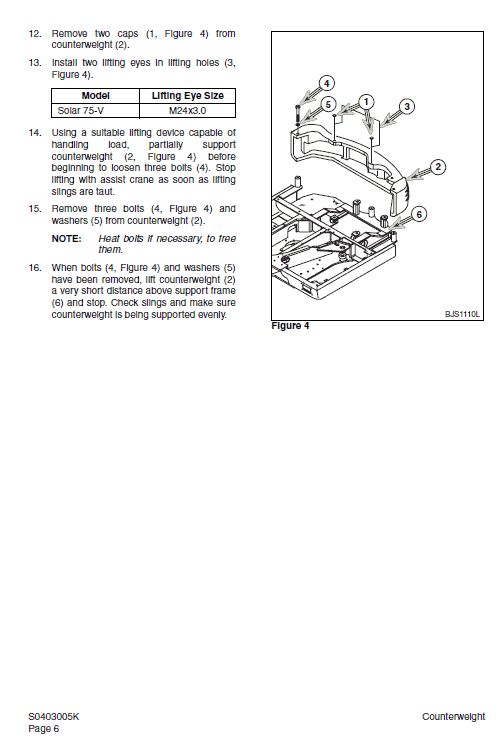

Manual Included: Shop Manual: 426 Pages Specifications: Brand: Doosan Model: Daewoo Solar S75-V Serial Number: 1001 and Up Type: Excavator Manuals: Shop Manual Publication Numbers: 023-00066AE (Jan 2004) Language: English Format: PDF Description Table of Contents Safety Track Excavator Safety…………………………………………………………….. S0102035K Specifications Specifications for Solar 75-V …………………………………………………….. S0202025K General Maintenance General Maintenance Procedures…………………………………………………S0302000 Standard Torques……………………………………………………………………….S0309000 Upper Structure Counterweight…………………………………………………………………………. S0403005K Fuel Tank……………………………………………………………………………….. S0405015K Swing Bearing…………………………………………………………………………….S0407000 Lower Structure and Chassis Track Assembly ………………………………………………………………………. S0505075K Engine and Drive Train Air Conditioner ……………………………………………………………………………S0605015 Hydraulics Accumulator……………………………………………………………………………. S0703010K Center Joint (Swivel)………………………………………………………………… S0704015K Cylinders……………………………………………………………………………………S0705000 Travel Motor (with Gearbox)……………………………………………………… S0707355K Swing Motor……………………………………………………………………………….S0707380 Main Pump (Rexroth)……………………………………………………………….. S0708375K Pilot Control Valve (Work Lever / Joystick)………………………………….. S0709453K Main Control Valve (REXROTH) …………………………………………………. S709466K Travel Control Valve (With Damper)…………………………………………… S0709820K Hydraulic Schematic (Solar 75-V)………………………………………………. S0792096K Electrical System Electrical System …………………………………………………………………….. S0802095K Electrical Schematic (Solar 75-V)………………………………………………. S0892096K Attachments Boom and Arm………………………………………………………………………… S0902025K Bucket……………………………………………………………………………………….S0904000 How to Use The Guide Manual This manual provides information for servicing the Excavator. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components. The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages. A schematic of each of the major engine systems is provided at the beginning of the section of the manual devoted to troubleshooting and repairing that particular system. Basic safety precautions are list in the Safety section of the Service Manual. Additional safety precautions are list in the Safety section of the owner/operation/maintenance publication. Specific safety warnings for all these publications are provided in the description of operations where hazards exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
