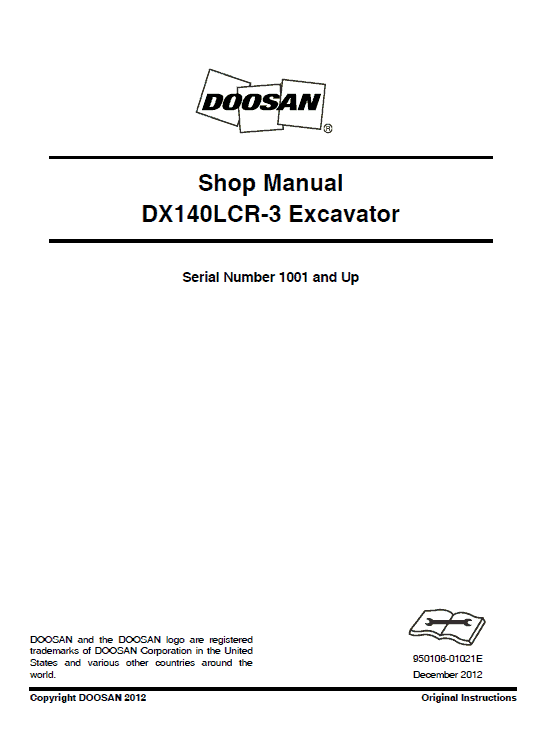

Doosan DX140LCR and DX140LCR-3 Excavator Service Manual Workshop Guide

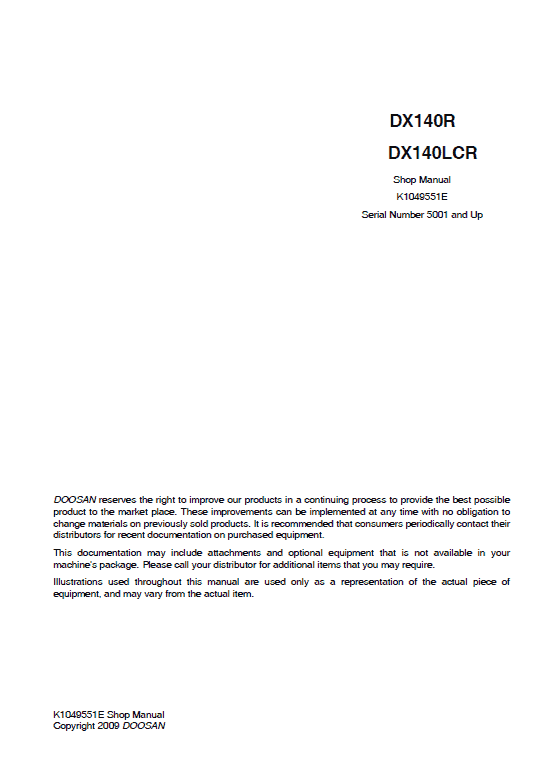

Manual Included: Service Manual: 1024 pages and 1114 Pages Specifications: Brand: Doosan Excavator Model: DX140LCR and DX140LCR-3 Serial Number: 5001 and Up Type: Excavator Manuals: Shop Manual Publication Number: K1049551E and 950106-01021E (Dec 2012) Language: English Format: PDF Description Table of Contents:- Safety Track Excavator Maintenance Safety …………………………………………… SP002907 Specifications Specifications for DX140LCR-3…………………………………………………… SP002908 General Maintenance General Maintenance Instructions……………………………………………….. SP002454 Standard Torques……………………………………………………………………… SP002404 Upper Structure Cabin ………………………………………………………………………………………. SP002909 Counterweight…………………………………………………………………………… SP002910 Fuel Tank…………………………………………………………………………………. SP002911 Fuel Transfer Pump (Option) ………………………………………………………. SP002912 Swing Bearing…………………………………………………………………………… SP002913 Swing Reduction Gear……………………………………………………………….. SP002526 Lower Structure and Chassis Track Assembly ………………………………………………………………………… SP002914 Engine and Drivetrain QSB4.5 Engine…………………………………………………………………………. SP002915 Drive Coupling (Main Pump)……………………………………………………….. SP002931 Hydraulics Hydraulic System Troubleshooting, Testing and Adjustment …………… SP002916 Accumulator……………………………………………………………………………… SP002455 Center Joint (Swivel)………………………………………………………………….. SP002917 Cylinders………………………………………………………………………………….. SP002918 Swing Motor……………………………………………………………………………… SP002919 Travel Device……………………………………………………………………………. SP002920 Main Pump……………………………………………………………………………….. SP002930 Gear Pump ………………………………………………………………………………. SP002500 Main Control Valve ……………………………………………………………………. SP002528 Remote Control Valve (Work Lever / Joystick) ………………………………. SP002921 Travel Control Valve (with Damper)……………………………………………… SP002922 Solenoid Valve Assembly …………………………………………………………… SP002923 Breaker EPPR Valve (Option) …………………………………………………….. SP002458 Hydraulic Schematic (DX140LCR-3) ……………………………………………. SP002924 Electrical System Electrical System ………………………………………………………………………. SP002925 Electrical Schematic ………………………………………………………………….. SP002926 Attachments Boom and Arm………………………………………………………………………….. SP002927 Bucket……………………………………………………………………………………… SP002506 Doosan DX140LCR and DX140LCR-3 Manual Instruction Extract: Do not twist or bend the EGR connection tube duringremoval or installation, or damage to the hose can result. To install the EGR cooler side connection tube (1): Use new gaskets. Install the mounting cap screws and EGR connection tube (1) to the EGR cooler. • Tighten the cap screws. • Torque Value: 24 Nm (212 in lb) Install the support brace (3) mounting cap screws to the EGR tube (1) and cylinder head. • Tighten the cap screws. • Torque Value: 24 Nm (212 in lb) Install the crossover hose (2) and hose clamps to the EGR connection tube. • Tighten the hose clamps. • Torque Value: 5 Nm (44 in lb) Connect the coolant return line support bracket to the EGR casting. • Tighten the cap screws. • Torque Value: 24 Nm (212 in lb) How to Use The Doosan DX140LCR and DX140LCR-3 Excavator Guide Manual: This manual provides information for servicing the DX140LCR and DX140LCR-3 Doosan Excavator. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components. The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages. A schematic of each of the major engine systems is provided at the beginning of the section of the manual devoted to troubleshooting and repairing that particular system. Basic safety precautions are list in the Safety section of the Doosan DX140LCR and DX140LCR-3 Excavator Service Manual. Additional safety precautions are list in the Safety section of the owner/operation/maintenance publication. Specific safety warnings for all these publications are provided in the description of operations where hazards exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
