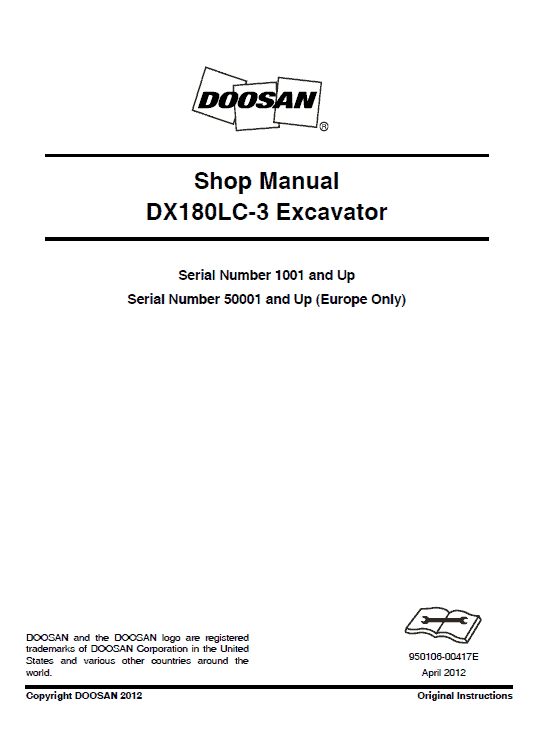

Doosan DX180LC-3 Excavator Service Manual Workshop Guide

Manual Included: Service Manual: 882 Pages Specifications: Brand: Doosan Excavator Model: DX180LC-3 Serial Number: 50001 and Up Type: Excavator Manuals: Service Manual Publication Number: 950106-00417E Language: English Format: PDF Description Table of Contents :- Safety Track Excavator Maintenance Safety …………………………………………… SP002322 Specifications Specifications for DX180LC-3……………………………………………………… SP002521 General Maintenance General Maintenance Instructions……………………………………………….. SP002454 Standard Torques……………………………………………………………………… SP002404 Upper Structure Cabin ………………………………………………………………………………………. SP002324 Counterweight…………………………………………………………………………… SP002522 Fuel Tank…………………………………………………………………………………. SP002523 Fuel Transfer Pump (Option) ………………………………………………………. SP002537 Swing Bearing…………………………………………………………………………… SP002329 Lower Structure and Chassis Track Assembly ………………………………………………………………………… SP002524 Engine and Drivetrain Engine Coolant Heater (Option) ………………………………………………….. SP002328 Drive Coupling (Main Pump)……………………………………………………….. SP002525 Hydraulics Hydraulic System Troubleshooting, Testing and Adjustment …………… SP002608 Accumulator……………………………………………………………………………… SP002455 Center Joint (Swivel)………………………………………………………………….. SP002456 Cylinders………………………………………………………………………………….. SP002579 Swing Device……………………………………………………………………………. SP002498 Travel Device……………………………………………………………………………. SP002514 Main Pump……………………………………………………………………………….. SP002531 Gear Pump ………………………………………………………………………………. SP002500 Main Control Valve ……………………………………………………………………. SP002584 Remote Control Valve (Work Lever / Joystick) ………………………………. SP002395 Travel Control Valve (with Damper)……………………………………………… SP002381 Solenoid Valve Assembly …………………………………………………………… SP002406 Breaker EPPR Valve (Option) …………………………………………………….. SP002458 Dozer Valve ……………………………………………………………………………… SP002529 Hydraulic Schematic (DX180LC-3)………………………………………………. SP002532 Electrical System Electrical System ………………………………………………………………………. SP002337 Electrical Schematic ………………………………………………………………….. SP002508 Attachments Boom and Arm………………………………………………………………………….. SP002533 Bucket……………………………………………………………………………………… SP002506 Doosan DX180LC-3 Manual Instruction Extract: TROUBLESHOOTING, TESTING AND ADJUSTMENT Inspection The center joint must be checked for evidence of external oil leakage every 2,000 operating hours. Leaking or defective O-rings are an indication that dirt and other contaminants could be getting inside the assembly, which will promote accelerated, abnormal wear and can cause early failure of the assembly. If internal seals or other sliding surface components are worn and there is internal fluid leakage, complete overhaul and repair or replacement of the center joint may be required. Testing To check pressure through the center joint, make up a test kit from the following equipment list: • 700 bar (10,000 psi) pressure gauge. • Adapters, connectors, piping and flange block off plates conforming to those used in high-pressure piping connections of the excavator. • A high-pressure relief valve with a setting pressure 1.5 times maximum system pressure. • A stop valve. • A manually operated, in-line changeover valve. Install the changeover valve upstream from one of the stem high-pressure ports. Connect the pressure gauge downstream from one of the body ports. Install the stop valve between the changeover valve and the stem of the center joint. Other components must be installed according to the layout in the block diagram. The test kit is used to pressurize the center swivel above normal working pressure and lock in the higher pressure (as the stop valve is closed manually) for a leak down test. NOTE: The same type of kit can also be made up for the drain port (return line) side of the center joint. Use appropriate piping, connectors, test gauges, etc., How to Use The Doosan DX180LC-3 Excavator Guide Manual: This manual provides information for servicing the DX180LC-3 Doosan Excavator. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components. The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages. A schematic of each of the major engine systems is provided at the beginning of the section of the manual devoted to troubleshooting and repairing that particular system. Basic safety precautions are list in the Safety section of the Doosan DX180LC-3 Excavator Service Manual. Additional safety precautions are list in the Safety section of the owner/operation/maintenance publication. Specific safety warnings for all these publications are provided in the description of operations where hazards exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
