Doosan DX60R Excavator Service Manual Workshop Guide

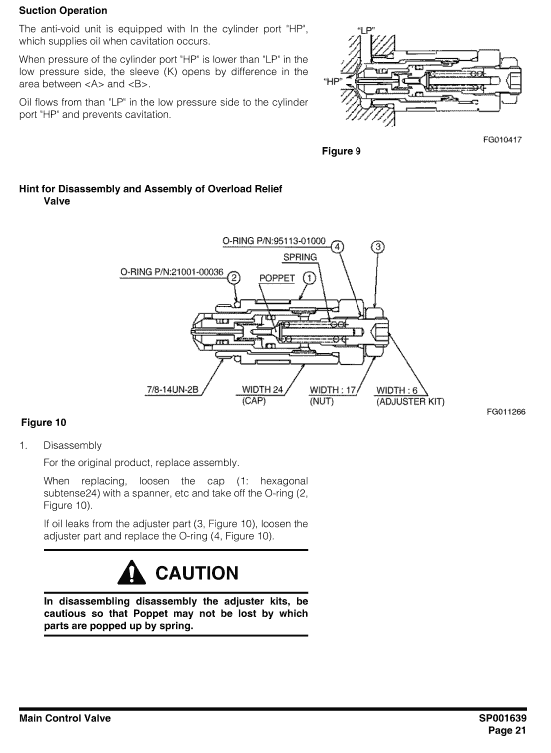

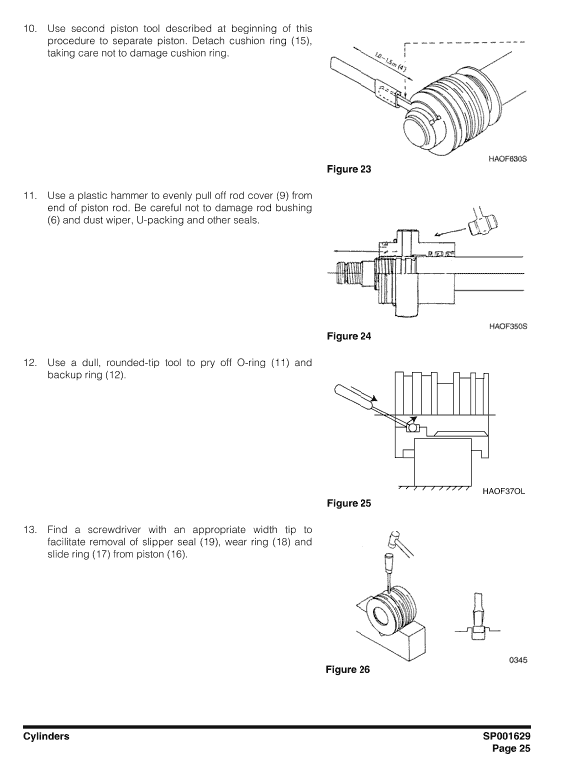

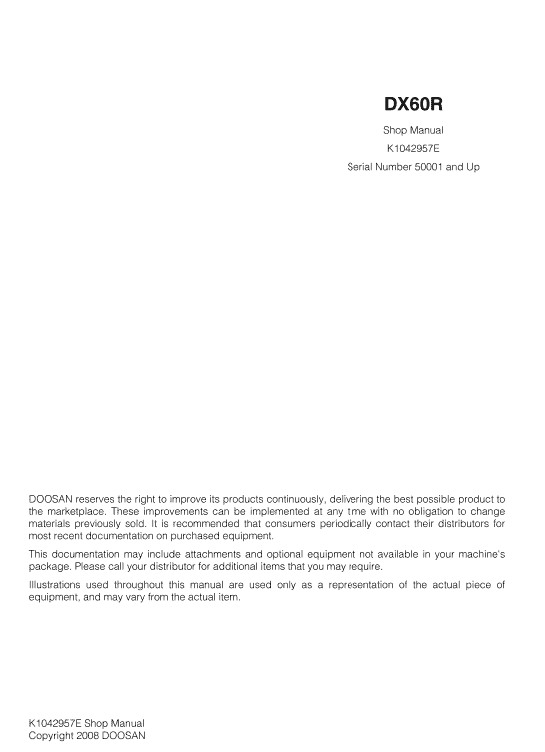

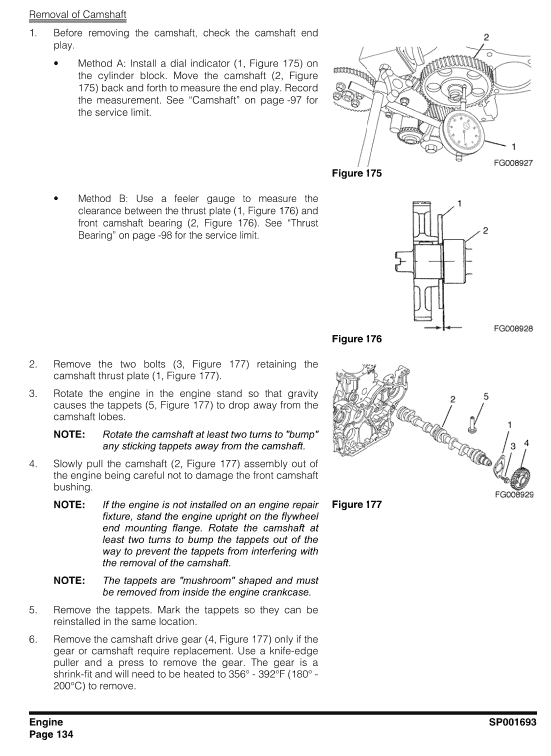

Manual Included: Shop Manual: 868 Pages Specifications: Brand: Doosan Daewoo Model: DX60R Serial Number: 50001 and Up Type: Excavator Manuals: Service Repair Manual Publication Number: K1042957E Language: English Format: PDF Description Table of Contents:- Safety Track Excavator Safety ……………………………………………………………….. SP001614 Specifications Specification for DX60R ………………………………………………………………. SP001615 General Maintenance General Maintenance Procedures ………………………………………………… SP000016 Standard Torques ………………………………………………………………………. SP000813 Upper Structure Cabin ……………………………………………………………………………………….. SP001623 Swing Bearing …………………………………………………………………………… SP001624 Lower Structure and Chassis Track Assembly …………………………………………………………………………. SP001625 Engine and Drive Train Engine ………………………………………………………………………………………. SP001693 Drive Coupling (Main Pump) ……………………………………………………….. SP001627 Hydraulics Accumulator ……………………………………………………………………………… SP000028 Center Joint (Swivel) …………………………………………………………………… SP001628 Cylinders …………………………………………………………………………………… SP001629 Swing Motor ………………………………………………………………………………. SP001630 Travel Motor ………………………………………………………………………………. SP001686 Main Control Valve ……………………………………………………………………… SP001639 Main Pump ………………………………………………………………………………… SP001488 Remote Control Valve (Work Lever/ Joystick) ……………………………….. SP001640 Dozer Valve ………………………………………………………………………………. SP001490 Travel Contorl Valve ……………………………………………………………………. SP001641 Pedal Valve ……………………………………………………………………………….. SP001073 Hydraulic Schematic ………………………………………………………………….. SP001692 Electrical System Electrical System ……………………………………………………………………….. SP001687 Electrical Schematic (DX60R/DX80R) …………………………………………… SP001688 Attachments Boom and Arm …………………………………………………………………………… SP001642 Bucket. ……………………………………………………………………………………… SP001643 Doosan DX60R Manual Instruction Extract: Applicable Parts Component Weight No or Slow Rotation Defective relief valves seats. Foreign objects in relief valve. Broken spring. Remove foreign objects. Replace spring. Pressure too low to over come relief valve set pressure. Loose spring. Clogged orifice. Replace relief valve. Remove foreign objects. Slow Stopping or Will Not Stop Defective relief valve seat. Foreign objects in relief valve. Remove foreign objects. Replace spring. Broken spring. Pressure too low to over come relief valve set pressure. Loose spring. Replace relief valves. Clogged orifice. Clogged orifice. Large Shock When Stopping Shock absorbing function not operating. Foreign objects in pistons. Remove foreign objects. Relief valve set pressure is too high. Readjust pressure. How to Use The Doosan DX60R Excavator Guide Manual: This manual provides information for servicing the DX60R Doosan Excavator. All service procedures are broken down into detailed steps, listed in their recommended sequence. The manual uses both photographs and drawings to help locate and itemize components. The table of Contents on the preceding pages is your best tool for finding the service procedure you need. Be certain to observe all Safety information included in these pages. A schematic of each of the major engine systems is provided at the beginning of the section of the manual devoted to troubleshooting and repairing that particular system. Basic safety precautions are list in the Safety section of the Doosan DX60R Excavator Service Manual. Additional safety precautions are list in the Safety section of the owner/operation/maintenance publication. Specific safety warnings for all these publications are provided in the description of operations where hazards exist. WARNING labels have also been put on the product to provide instructions and to identify specific hazards.
