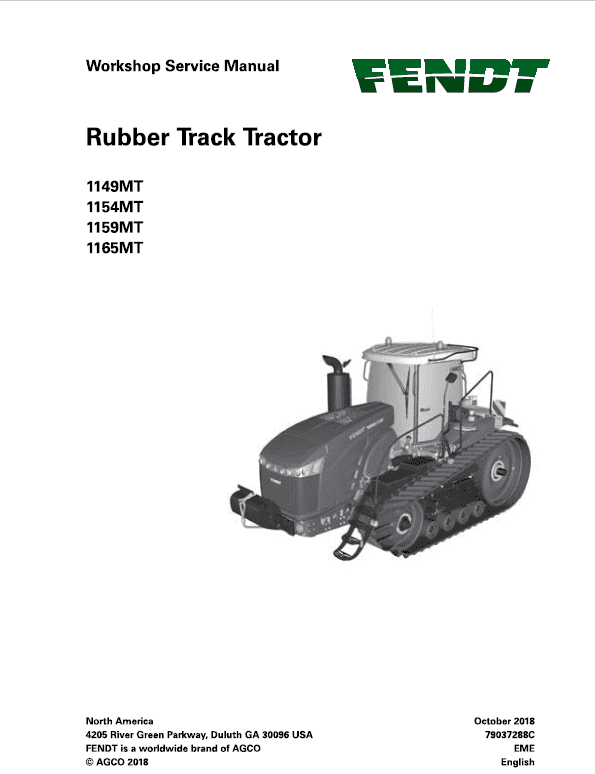

Fendt 1149MT, 1154MT, 1159MT, 1165MT Tractor Service Manual Workshop Guide

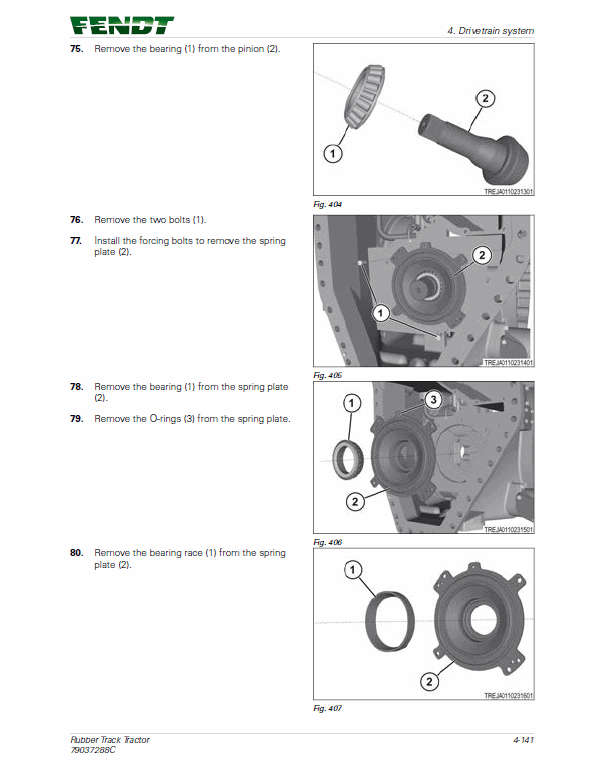

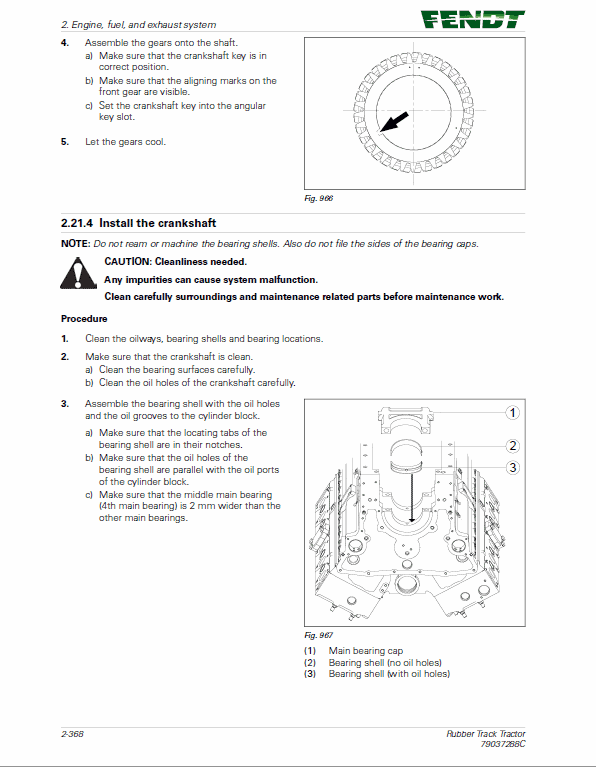

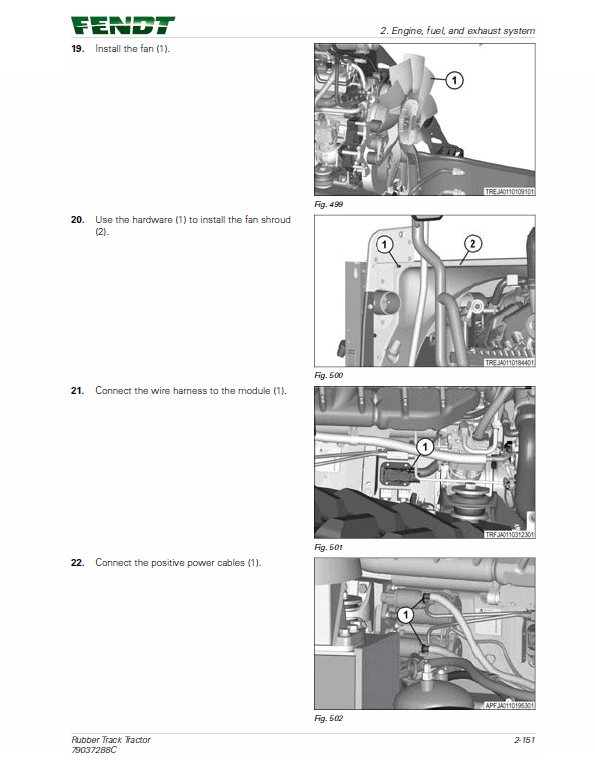

Fendt 1149MT, 1154MT, 1159MT, 1165MT Tractor Workshop Manual : 2748 Pages Fendt 1149MT, 1154MT, 1159MT, 1165MT Tractor Operators Manual : 372 Pages Format: PDF Book Number: 79037288C English Issued October 2018 Description Fendt 1149MT, 1154MT, 1159MT, 1165MT Tractor Service Manual Manual for: AGCO Fendt Format: PDF Book Number: 79037288C English Issued October 2018 Fendt 1149MT, 1154MT, 1159MT, 1165MT Tractor Workshop Manual : 2748 Pages Fendt 1149MT, 1154MT, 1159MT, 1165MT Tractor Operators Manual : 372 Pages Workshop Manual TABLE OF CONTENTS General Engine, Fuel and exhaust Steering System Drive Train System Compressed Air System Hydraulic System Electrical System Cab Air conditioning and Heating System Chassis Track belt system Implement Drive System Implement Lift System Attachments Diagrams Special Tools Index Manual Extract – Fault Code Code SA 03 SPN 521469 FMI 02 Steering motor speed sensor 1 signal is not correct. Diagnosis and solution 1. Check the sensor adjustment. a) Turn the key start switch to the off position. b) Turn the battery disconnect switch to the off position. c) Remove the key from the battery disconnect switch. d) Remove the speed sensor. e) Clean the sensor and the mounting hole. f) Install the sensor. g) Turn the battery disconnect switch to the on position. h) Turn the key start switch to the on position. i) Operate the engine at low idle. j) Check for active diagnostic codes. Result Expected result – SPN 521469 FMI 02 is not active. Results: • Yes – SPN 521469 FMI 02 is not active. Stop. • No – SPN 521469 FMI 02 is active. 2. Check the return circuit. a) Turn the key start switch to the off position. b) Turn the battery disconnect switch to the off position. c) Remove the key from the battery disconnect switch. d) Disconnect the speed sensor from the harness. e) Check resistance from connector contact 2 to frame ground. Result Expected result – resistance is less than 5 ohms. Results: • Yes – resistance is less than 5 ohms. • No – resistance is not less than 5 ohms. Repair or replace the harness.
