Fendt 3X, 4X, 5X Front Loader Service Manual Workshop Guide

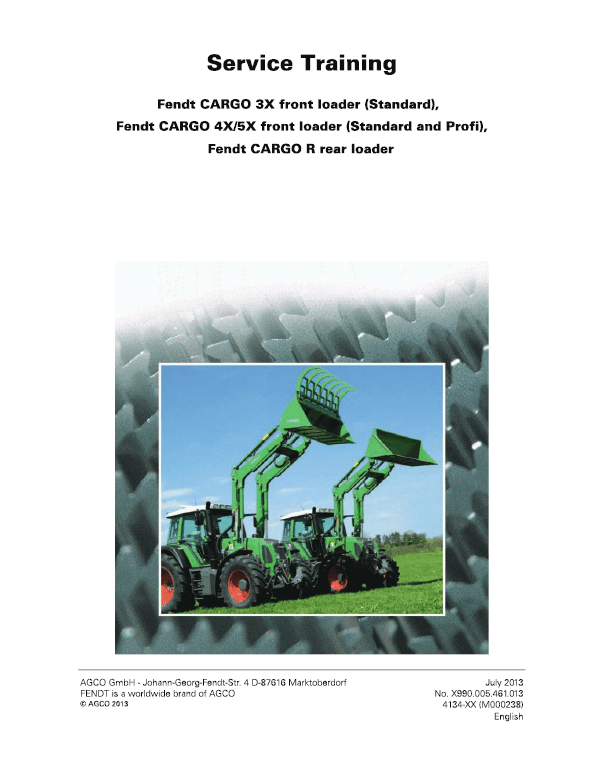

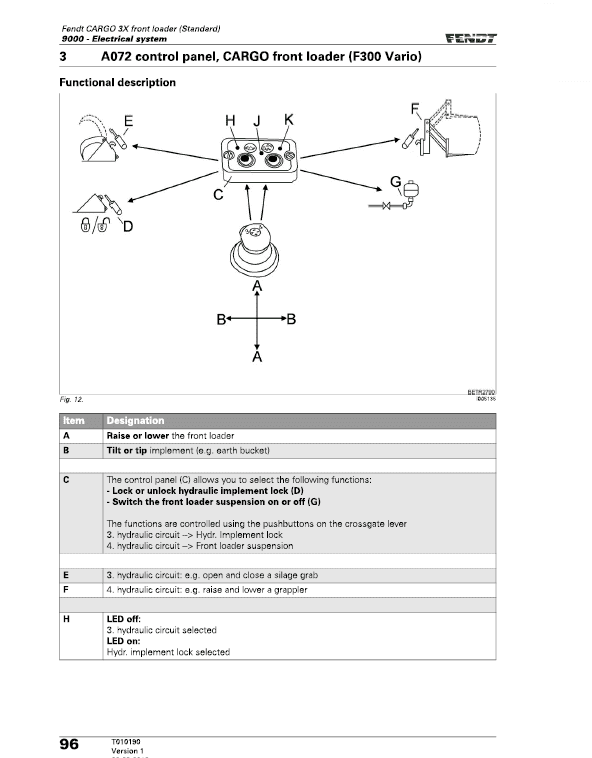

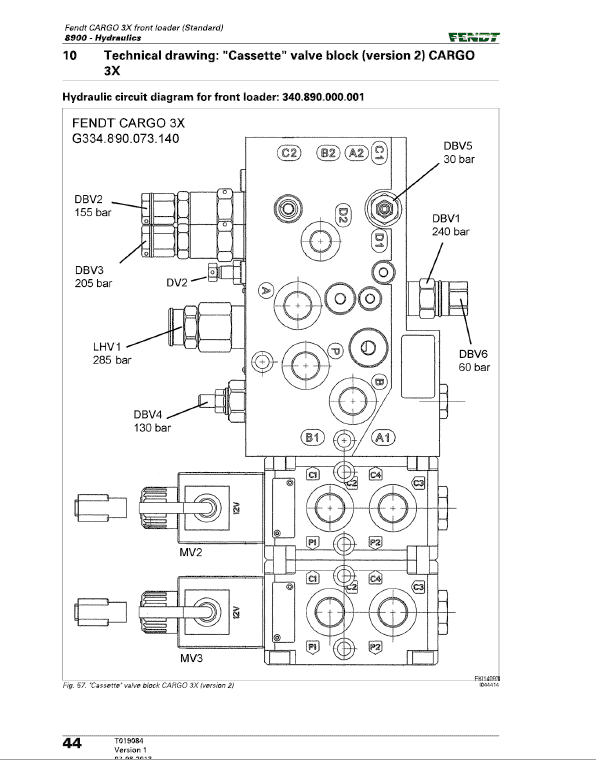

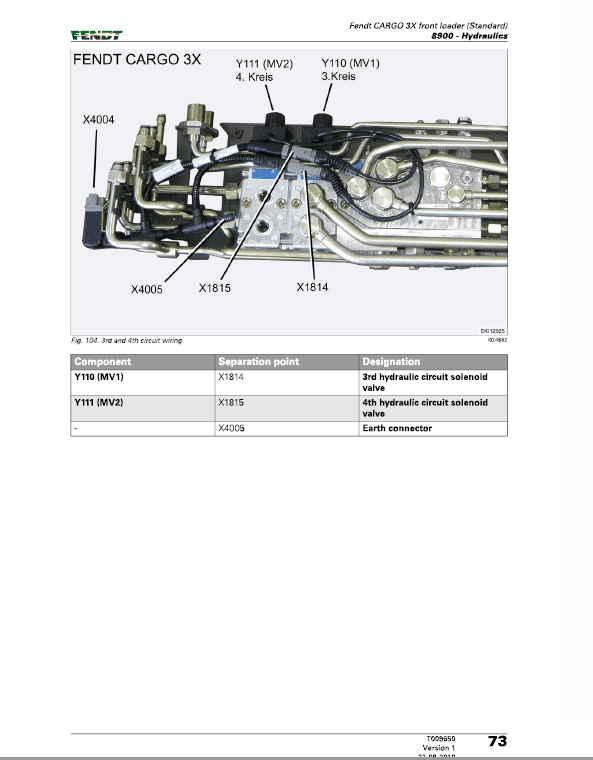

Fendt CARGO 3X front loader (Standard), Fendt CARGO 4X/5X front loader (Standard and Profi), Fendt CARGO R rear loader Service Manual of 492 Pages Description Fendt 3X, 4X, 5X Front Loader Service Manual Manual for: AGCO Fendt Format: PDF Book Number:  X990.005.461.013 English Issued July 2013 Fendt CARGO 3X front loader (Standard), Fendt CARGO 4X/5X front loader (Standard and Profi), Fendt CARGO R rear loader Service Manual of 492 Pages Service Manual TABLE OF CONTENTS General Faults Documents and Diagrams Component Location Testing Setting and Calibration Repair Service info Preliminary work: – Apply the hand brake. Raise and fold up the lower links of the front hydraulic power lift (FENDT 400/700/800 Vario) Check front air pressure and track adjustment. Drive the tractor slowly into the front-loader console. Clean the mating faces of the multi-coupler. Insert the multi-coupler with integrated electric lines. Swivel the bracket downwards until catch (A) snaps into place. NOTE: Do not load the foldaway supports by using the DA function to lift the front loader out of the mounting console. Doing this may damage the foldaway supports.
