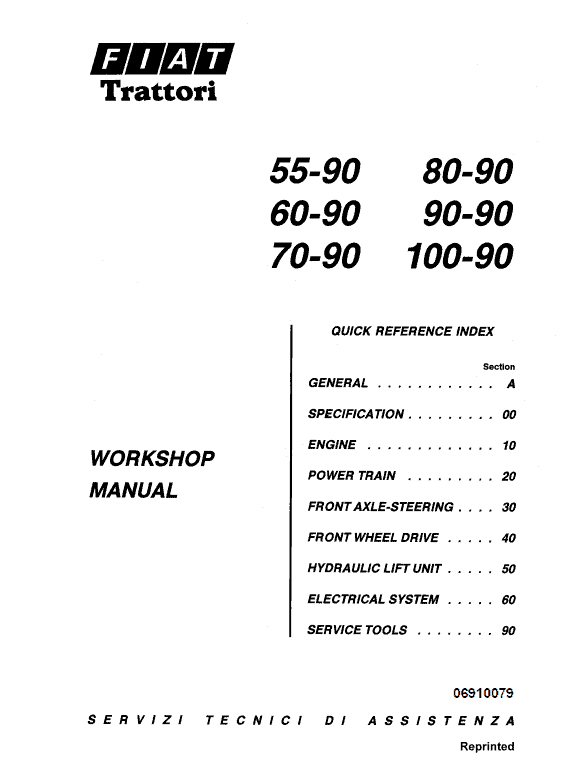

Fiat 50-90, 60-90, 70-90, 80-90, 90-90, 100-90 Tractor Service Manual Workshop Guide

Brand: Fiat Trattori Equipment Type: Tractor 50-90, 60-90, 70-90, 80-90, 90-90, 100-90 Format: PDF Language of the Manual: English Publication: 06910079 Fiat Trattori tractor 50-90, 60-90, 70-90, 80-90, 90-90, 100-90 Workshop Repair Manual: 586 Pages Description Fiat 50-90, 60-90, 70-90, 80-90, 90-90, 100-90 Tractor Service Manual Brand: Fiat Trattori Equipment Type: Tractor 50-90, 60-90, 70-90, 80-90, 90-90, 100-90 Format: PDF Language of the Manual: English Publication: 06910079 Fiat Trattori tractor 50-90, 60-90, 70-90, 80-90, 90-90, 100-90 Workshop Service Manual: 586 Pages Table of Content of the 50-90, 60-90, 70-90, 80-90, 90-90, 100-90 Tractors Manual: General Specificaion Engine Power Train Front Axle-Steering Front Wheel Drive Hydraulic Lift Unit Electrical System Service Tools The Fiat Service Manual provides you with all the technical specification and information needed for you to properly service the Fiat Tractor 50-90, 60-90, 70-90, 80-90, 90-90, 100-90. By using this repair service manual in addition to your operators manual supplied, you should be able to correctly service and maintain your tractor. The manual describes the procedures of removal, disassembly, reassembly, troubleshooting, maintenance that have been found to be the easiest and least time consuming way to fix any issues with your tractor. There may be several other ways of completing the same job, but it has been established that the described methods are the best. Any diversion to these procedures mentioned in this manual are your own decisions. Anyone who performs repair and maintenance operations without complying with the procedures provided herein shall be responsible for any subsequent damages. Manual is applicable to: FIAT Tractorri 50-90, 60-90, 70-90, 80-90, 90-90, 100-90 Model Tractors STEERING Independent circuit hydrostatic steering with antishock valves and flow proportioning pump. Linkage joints Sealed for life Turning radius (no brakes): – 55-90 and 60-90 3900 mm (11 ft 3 in) – 55-90 OT, front wheel drive out 5100 mm (16 ft 9 in) – 60-90 OT, front wheel drive out 5200 mm (17 ft} – 70-90 and 80-90 4100 mm (13 ft 5 in) – 70-90 OT and 80-90 DT, front wheel drive out 5300 mm (17 ft 4 in) – 90-90 and 100-90 5000 mm (16 ft 5 in) – 90-90 OT and 100-90 DT, front wheel drive out 5700 mm (18 ft 8 in)
