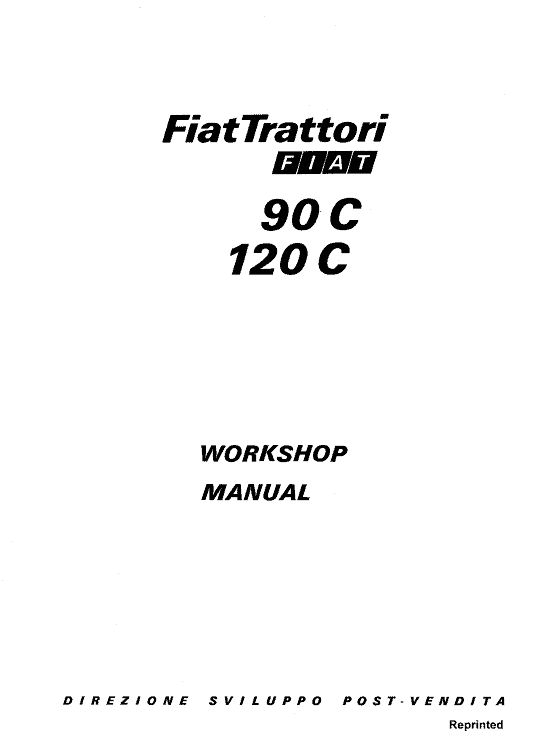

Fiat 90C, 120C Tractor Workshop Service Manual Workshop Guide

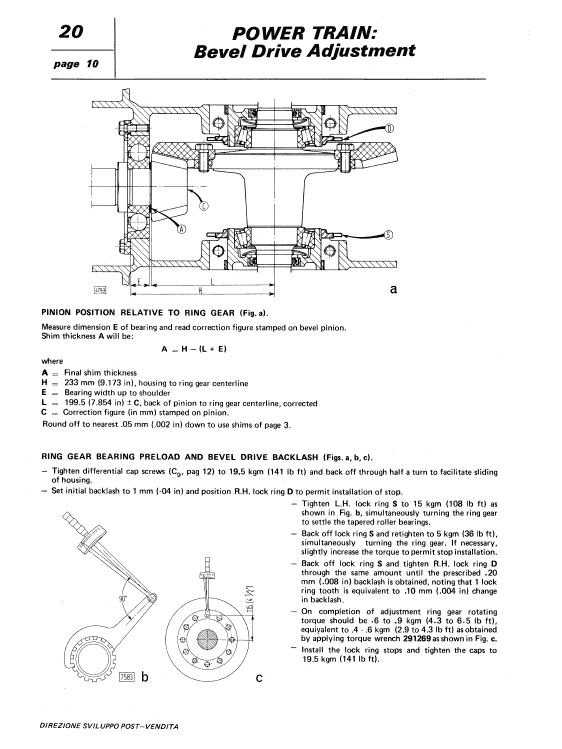

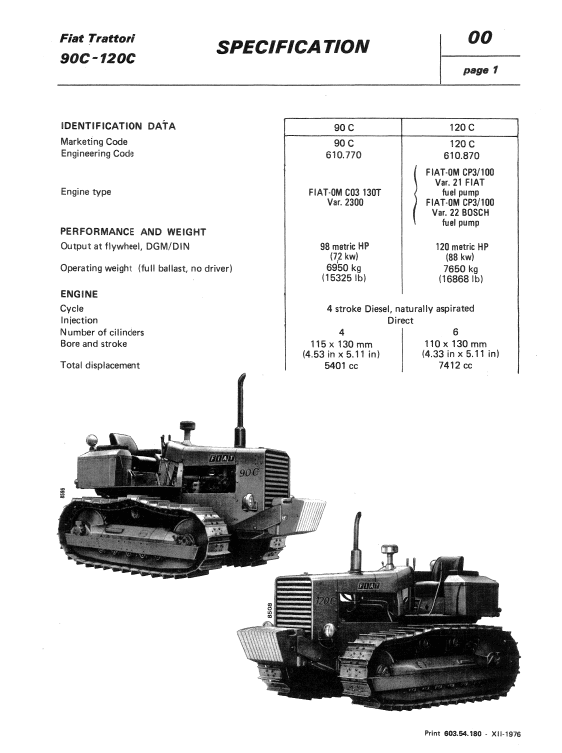

Brand: Fiat Trattori Equipment Type: Tractor Equipment Model: 90C, 120C Format: PDF Language of the Manual: English Publication: 60354180 Fiat 90C, 120C Tractor Workshop Repair Manual: 72Pages Description Fiat 90C, 120C Tractor Workshop Service Manual Brand: Fiat Trattori Equipment Type: Tractor Equipment Model: 90C, 120C Format: PDF Language of the Manual: English Publication: 60354180 Fiat 90C, 120C Tractor Workshop Service Manual: 72Pages Table of Content of the 90C, 120C Tractors Manual: General Specification Engine Power Train Undercarriage Remote Control System Electrical System Service Tools The manual is divided into separately numbered sections. The sections identified by two digits (0 as second numeral) contain: – Tractor specifications (00). – Tractor sub-assembly specifications and data (10-Engine, 20-Power Train, etc.). The sections identified by two digits (1 to 9 as second numeral) deal with the overhaul of the sub-assembles whose data are listed in the above sections. The first numeral is the same as the distinctive numeral of the associated data section;is (e.g. 20 – Power Train;. then 22 – Clutch; 23 – Transmission, splitter etc.). • A contents list is provided to facilitate retrieval of desired information. The Fiat Service Manual provides you with all the technical specification and information needed for you to properly service the Fiat Tractor 90C, 120C. By using this repair service manual in addition to your operators manual supplied, you should be able to correctly service and maintain your tractor. The manual describes the procedures of removal, disassembly, reassembly, troubleshooting, maintenance that have been found to be the easiest and least time consuming way to fix any issues with your tractor. There may be several other ways of completing the same job, but it has been established that the described methods are the best. Any diversion to these procedures mentioned in this manual are your own decisions. Anyone who performs repair and maintenance operations without complying with the procedures provided herein shall be responsible for any subsequent damages. Confirm the disassembling section before starting work, determine the disassembly procedure taking the conditions in work shop into account, and request to procure necessary parts in advance. Manual is applicable to FIAT Trattori 90C, 120C
