Ford 100, 120, 125, 145, 165, 195 Lawn Tractor Service Manual Workshop Guide

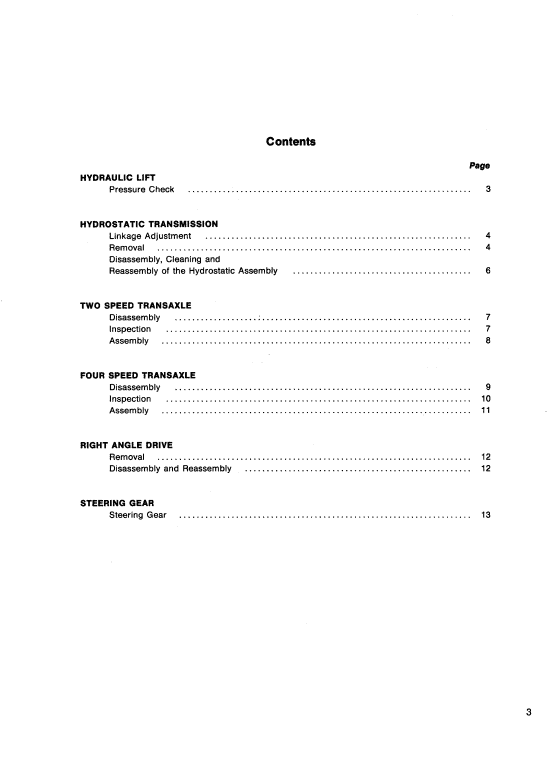

Brand: Ford Equipment Type: Lawn and Garden Tractor Equipment Model: 100, 120, 125, 145, 165, 195 Format: PDF Language of the Manual: English Publication: 40010060 Ford Lawn Tractors 100, 120, 125, 145, 165, 195 Technical Manual: 242 Pages Description Ford 100, 120, 125, 145, 165, 195 Lawn Tractor Service Manual Brand: Ford Equipment Type: Lawn and Garden Tractor Equipment Model: 100, 120, 125, 145, 165, 195 Format: PDF Language of the Manual: English Publication: 40010060 Ford Lawn Tractors 100, 120, 125, 145, 165, 195 Service Manual: 242 Pages Table of Content of the 100, 120, 125, 145, 165, 195 Tractors Manual: Hydraulic Lift Hydrostatic Transmission Two Speed Transaxle Four Speed Transaxle Right Angle Drive Steering Gear This Manual Contains Service Information For The Ford 100, 120, 125, And 145 Lawn And Garden Tractors. Information Is Provided On Description And Operation, Pressure Checks And Adjustments, And Component Overhaul. Refer To The Kohler Engine Repair Manual for Information Concerning The Engine; Its Components, Specifications, And Repair. Keep This Manual Along With Your Other Service Literature, Avail-able For Ready Reference. HYDRAULIC LIFT The hydraulic Implement lift in the 145 Ford Lawn and Garden Tractor consists of three components; the hydraulic pump, hydraulic valve, and hydraulic cylinder. The hydraulic pump is used as a charge pump for the hydrostatic transmission as well as a source of hydraulic power for the hydraulic system. The hydraulic valve is an open center, single spool, double-acting valve which has an integral flow restrictor type relief valve. This Manual is applicable for the Ford 100, 120, 125, 145, 165, 195 Lawn Tractor
