Hitachi Zaxis ZX8-2, ZX10U-2 Mini Excavator Repair Service Manual

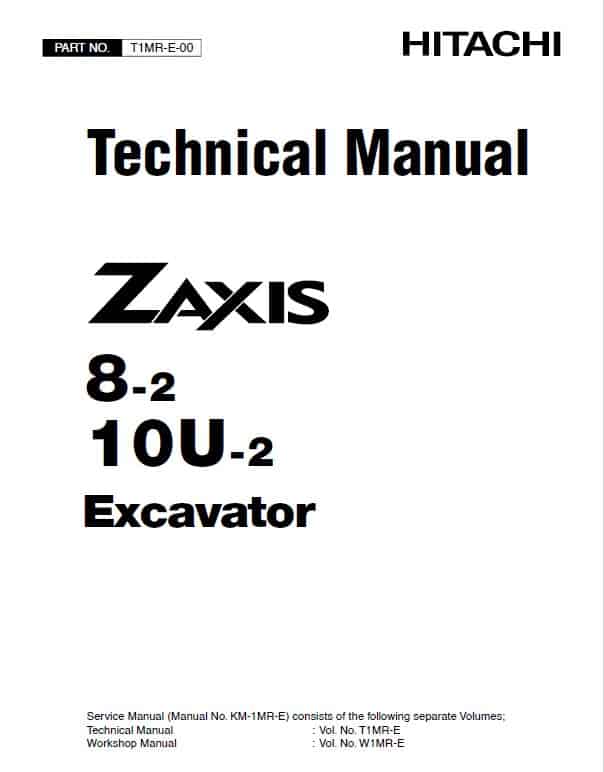

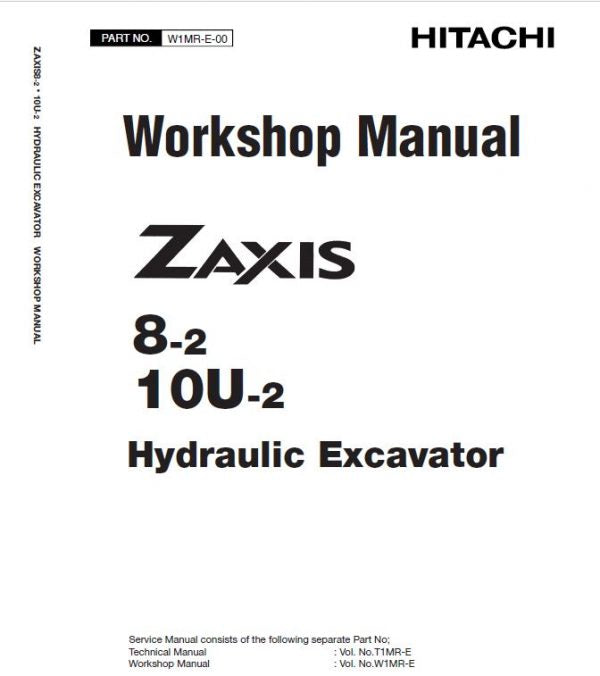

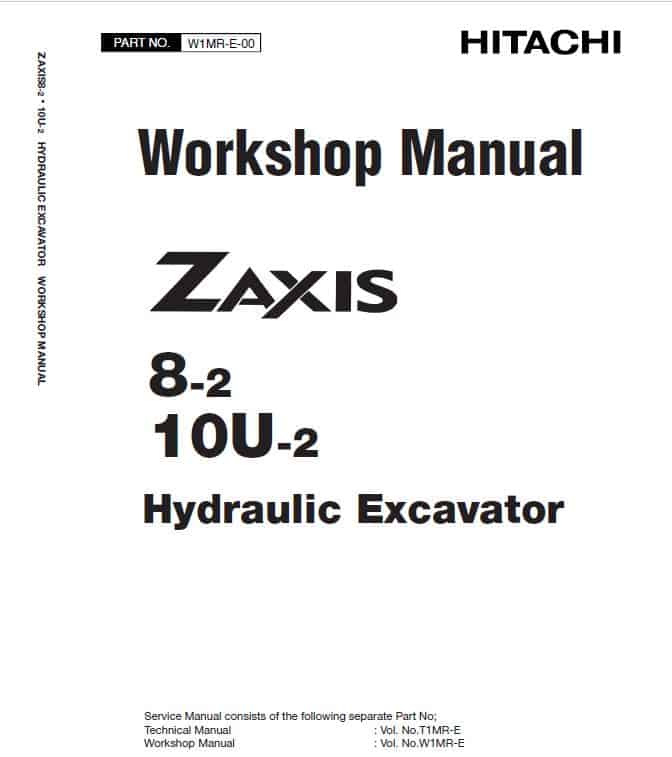

Excavator Model : ZX8-2, ZX10U-2 English Format: PDF Hitachi Zaxis ZX8-2, ZX10U-2 Excavator Manual: Technical Manual: Vol No. T1MR-E – 252 Pages Workshop Manual: Vol No. W1MR-E – 628 Pages Hydraulic Schematics: 7 Pages Description Hitachi Zaxis ZX8-2, ZX10U-2 Mini Excavator Repair Service Manual Excavator Model : ZX8-2, ZX10U-2 English Format: PDF Hitachi Zaxis ZX8-2, ZX10U-2 Excavator Manual: Technical Manual: Vol No. T1MR-E – 252 Pages Workshop Manual: Vol No. W1MR-E – 628 Pages Hydraulic Schematics: 7 Pages Manual Table of Content: Workshop Manual Covers: Safety General Information Upperstructure Undercarriage Front Attachment Engine Technical Manual Covers: General System Component Operation Operational Performance Test Troubleshooting Manual Extract: Centre Joint 1. Install flange (5) of center joint (1) to the center frame with washers (4) (4 used) and bolts (3) (4 used). : 17 mm : 50 N⋅m (5 kgf⋅m, 37 lbf⋅ft) 2. Install hoses (2) (12 used) to center joint (1). : 19 mm : 29.5 N⋅m (3 kgf⋅m, 22 lbf⋅ft) : 22 mm : 39 N⋅m (4 kgf⋅m, 29 lbf⋅ft) 3. Install the main frame to the center frame. Refer to the Remove and Install Main Frame group on page W2-1-1. IMPORTANT: After completing the work, check the oil level. Start the engine and check for any oil leaks.
