Hitachi ZX160LC-5A and ZX160LC-5B Excavator Service Repair Manual Workshop Guide

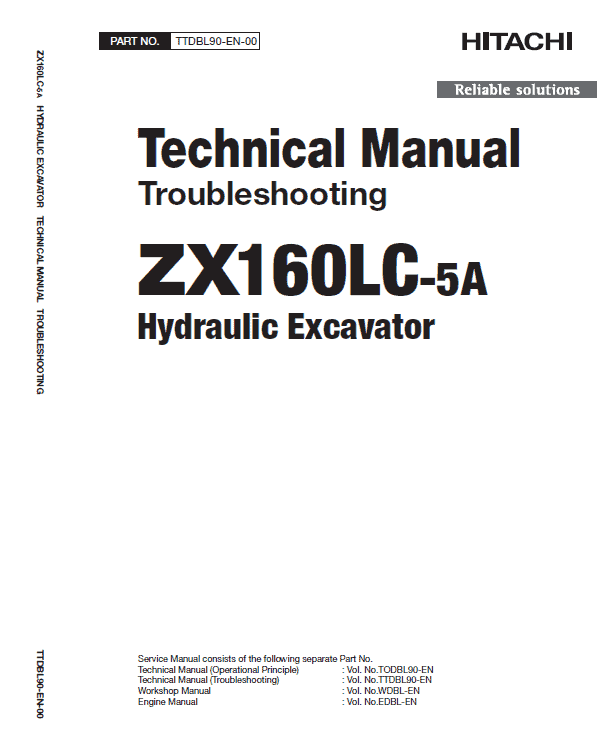

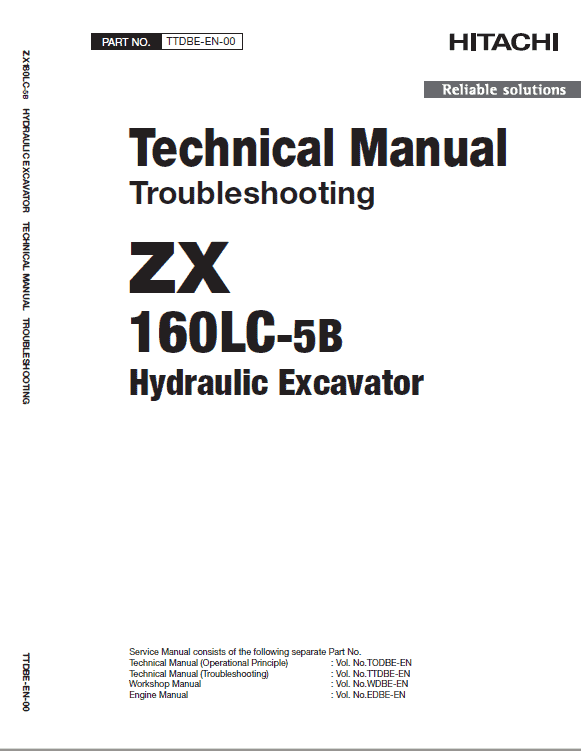

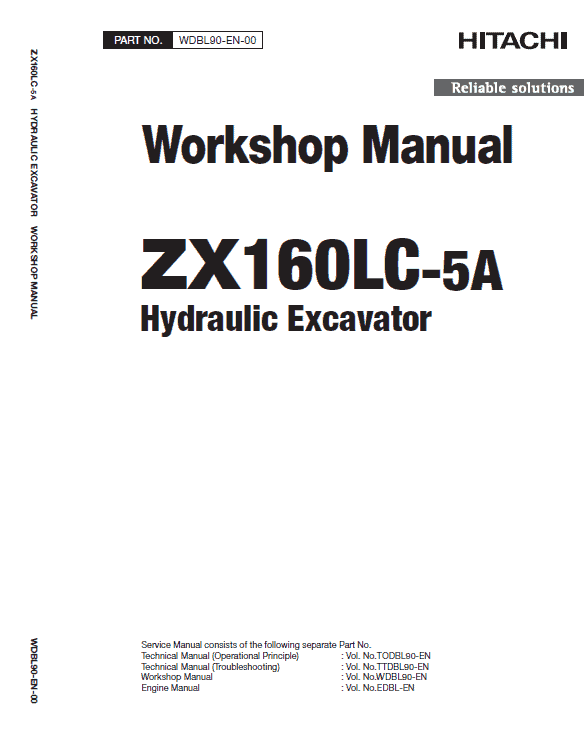

For Model: Excavator ZX160LC-5A, ZX160LC-5B and ZX160LC-5G Format: PDF Language: English Service Repair Manual consists of the following: For Model ZX160LC-5A: Service Repair Manual (Operational Principle) : Vol. No.TODBL90-EN (377 Pages) Service Repair Manual (Troubleshooting) : Vol. No.TTDBL90-EN (466 Pages) Workshop Manual : Vol. No.WDBL90-EN (512 Pages) See description for the other models. Description Hitachi ZX160LC-5A and ZX160LC-5B Excavator Service Manual For Model: Excavator ZX160LC-5A and ZX160LC-5B Format: PDF Language: English Service Manual consists of the following: For Model ZX160LC-5A: Service Manual (Operational Principle) : Vol. No.TODBL90-EN (377 Pages) Service Manual (Troubleshooting) : Vol. No.TTDBL90-EN (466 Pages) Workshop Manual : Vol. No.WDBL90-EN (512 Pages) Electrical Circuit Diagram – 15 Pages For Model ZX160LC-5B: Service Manual (Operational Principle) : Vol. No.TTDBE-EN (494 Pages) Service Manual (Troubleshooting) : Vol. No.TODBE-EN (492 Pages) Workshop Manual : Vol. No.WDBE-EN (523 Pages) Electrical Circuit Diagram – 17 Pages SI Units (International System of Units) are used in those manual. Manual guide composition Hitachi ZX160LC-5A and ZX160LC-5B service manual consists of the Operating, Troubleshooting and the Workshop Manual. Information included in the Service Manual: Technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures. Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assemble / disassemble procedures. To avoid injury and damage refer to the service manual and be sure to use appropriate lifting techniques and equipment when lifting heavy parts. The Cab assembly weight: 370 kg (820 lb) The Hitachi excavators ZX160LC-5A and ZX160LC-5B has been built to deliver reliable performance with fewer emissions and less fuel. Less fuel consumption for owners, easier for operators and better for the environment, the ZX160LC-5A and ZX160LC-5B incorporates the latest technologies made for the hydraulic, electric and capacitor-powered excavators. We will only send you either the 5A or 5B variant manual. Please specify which model when ordering.
