Hitachi ZX170W-5A and ZX170W-5B Excavator Service Repair Manual Workshop Guide

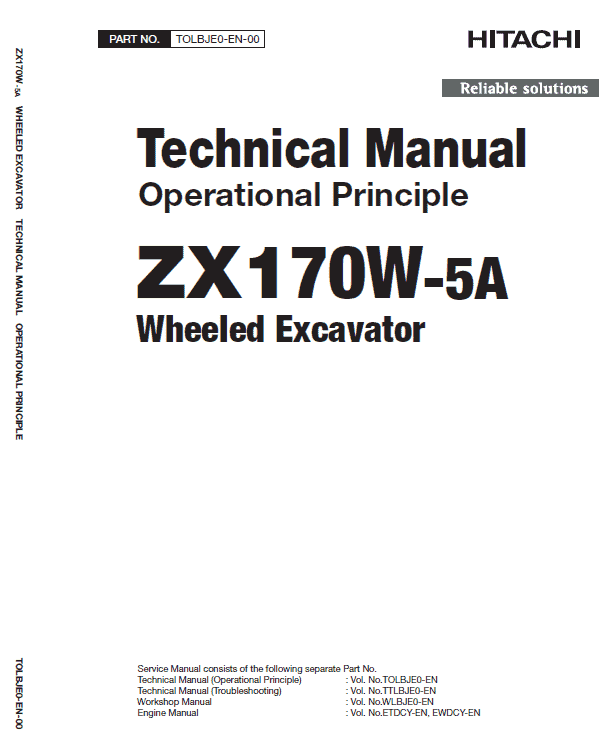

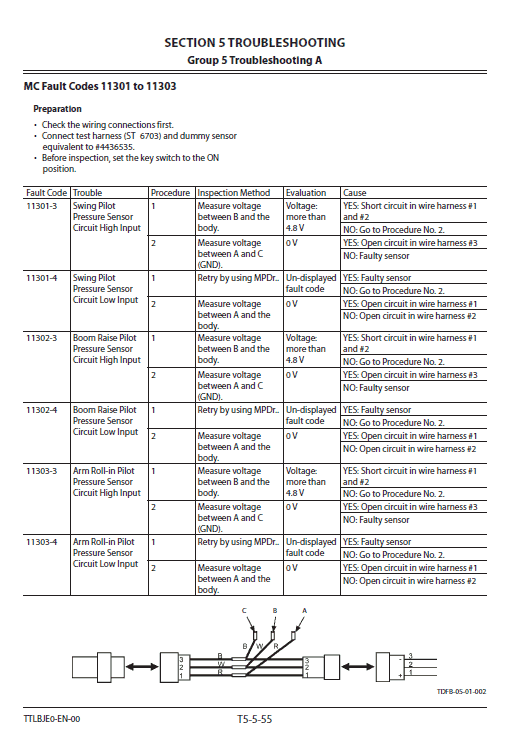

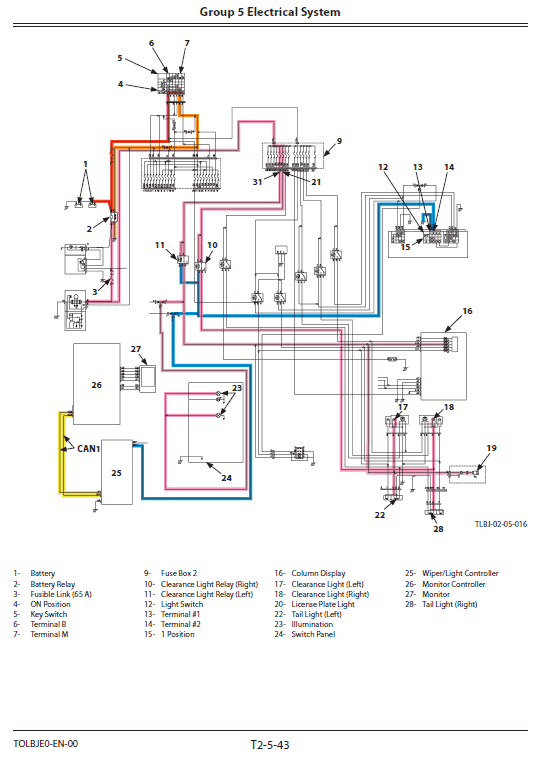

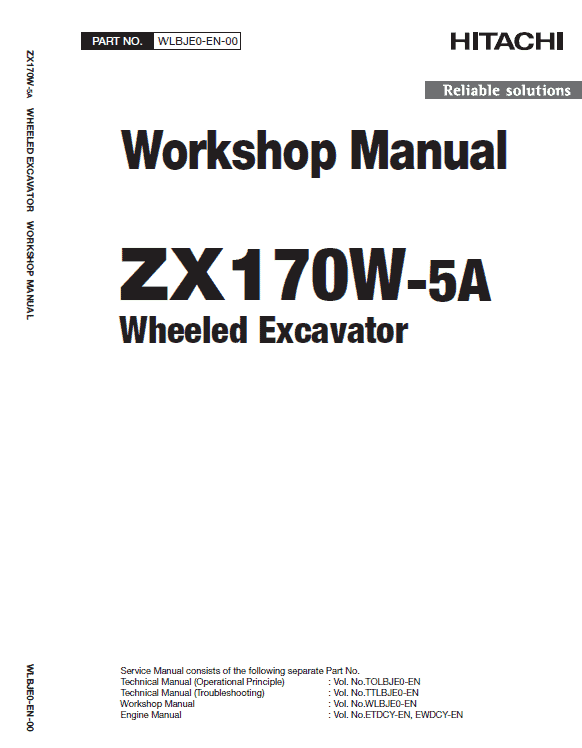

For Model: Excavator ZX170W-5A and ZX170W-5B Format: PDF Language: English Service Repair Manual consists of the following: For Model ZX170W-5A: Service Repair Manual (Troubleshooting) : Vol. No.TOLBJEO (531 Pages) Service Repair Manual (Operation) : Vol. No.TTLBJEO (541 Pages) Workshop Manual : Vol. No.WLBJEO (508 Pages) See description for full details Description Hitachi ZX170W-5A and ZX170W-5B Excavator Service Manual For Model: Excavator ZX170W-5A and ZX170W-5B Format: PDF Language: English Service Manual consists of the following: For Model ZX170W-5A: Service Manual (Troubleshooting) : Vol. No.TOLBJEO (531 Pages) Service Manual (Operation) : Vol. No.TTLBJEO (541 Pages) Workshop Manual : Vol. No.WLBJEO (508 Pages) For Model ZX170W-5B: Service Manual (Troubleshooting) : Vol. No.TOLBA-EN (624 Pages) Service Manual (Operation) : Vol. No.TTLBA-EN (616 Pages) Workshop Manual : Vol. No.WLBA-EN (714 Pages) SI Units (International System of Units) are used in those manual. Circuit Diagram: 19 Pages Manual guide composition Hitachi ZX170W-5A and ZX170W-5B service manual consists of the Operating, Troubleshooting and the Workshop Manual. Information included in the Service Manual: Technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures. Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assemble / disassemble procedures. To avoid injury and damage refer to the service manual and be sure to use appropriate lifting techniques and equipment when lifting heavy parts. The Cab assembly weight: 370 kg (820 lb) The Hitachi excavators ZX170W-5A and ZX170W-5B has been built to deliver reliable performance with fewer emissions and less fuel. Less fuel consumption for owners, easier for operators and better for the environment, the ZX170W-5A and ZX170W-5B incorporates the latest technologies made for the hydraulic, electric and capacitor-powered excavators. We will only send you either the 5A variant manual or the 5B. Please specify which model when ordering.
