Hitachi ZX190W-5A and ZX190W-6 Wheeled Excavator Service Repair Manual Workshop Guide

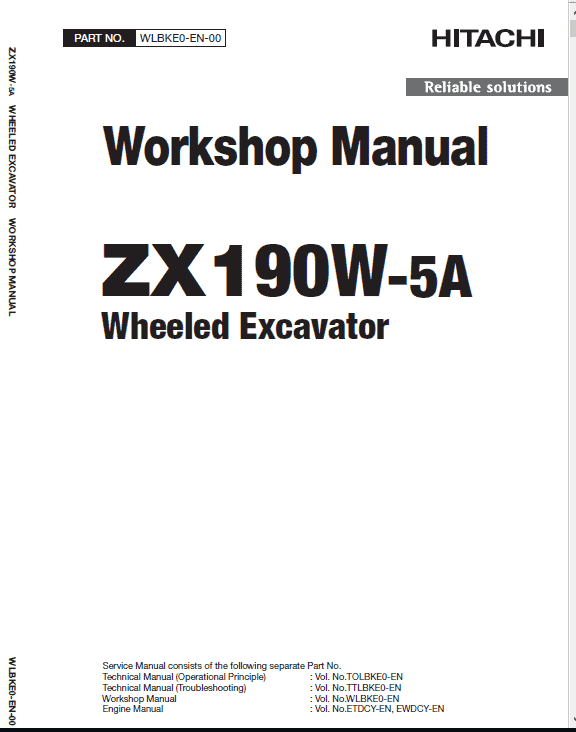

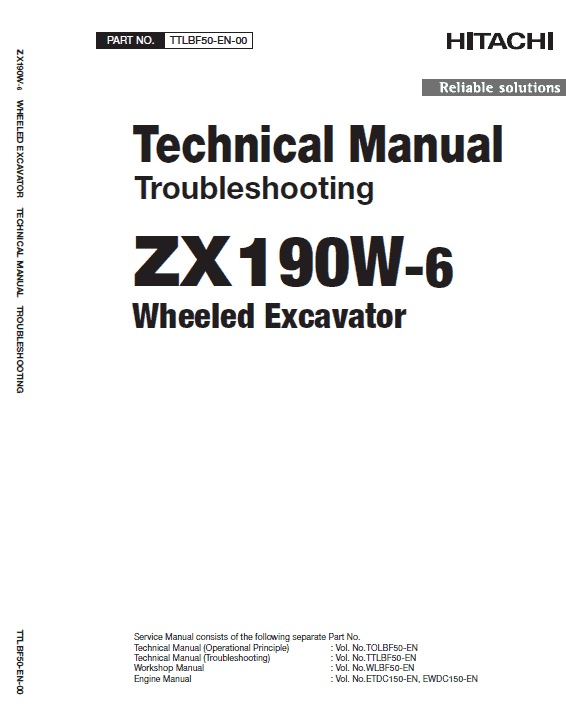

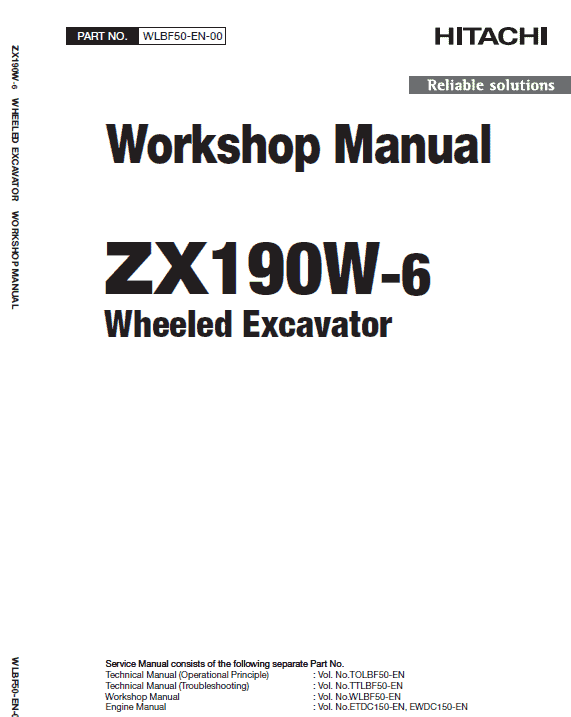

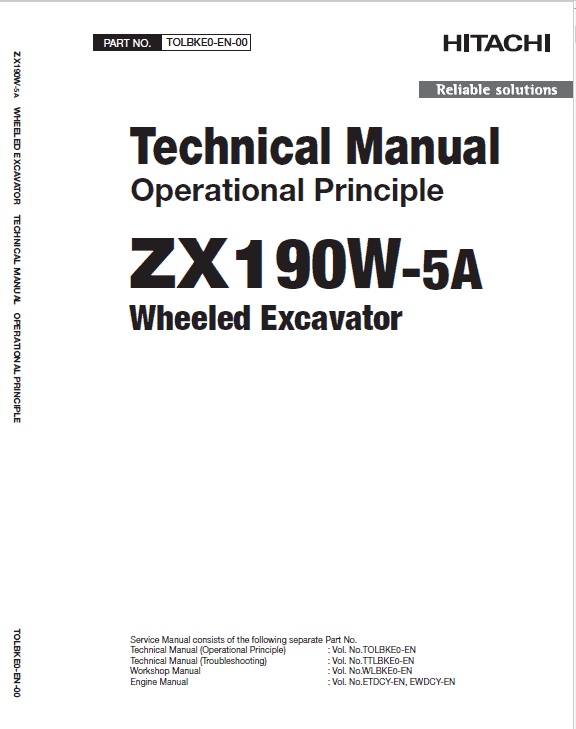

For Model ZX190W-5A: Service Repair Manual (Troubleshooting) : Vol. No.TOLBKE0 (531 Pages) Service Repair Manual (Operation) : Vol. No.TTLBKE0 (540 Pages) Workshop Manual : Vol. No.WLBKE0 (508 Pages) See description for full details Description Hitachi ZX190W-5A and ZX190W-6 Wheeled Excavator Service Manual For Model: Excavator ZX190W-5A and ZX190W-6 Format: PDF Language: English Service Manual consists of the following: For Model ZX190W-5A: Service Manual (Troubleshooting) : Vol. No.TOLBKE0 (531 Pages) Service Manual (Operation) : Vol. No.TTLBKE0 (540 Pages) Workshop Manual : Vol. No.WLBKE0 (508 Pages) Circuit Diagram: 15 Pages For Model ZX190W-6: Service Manual (Troubleshooting) : Vol. No.TODBS50 (651 Pages) Service Manual (Operation) : Vol. No.TTDBS50 (641 Pages) Workshop Manual : Vol. No.WDBS50 (893 Pages) Circuit Diagram: 24 Pages SI Units (International System of Units) are used in those manual. Manual guide composition Hitachi ZX190W-5A and ZX190W-6 service manual consists of the Operating, Troubleshooting and the Workshop Manual. Information included in the Service Manual: Technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures. Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assemble / disassemble procedures. To avoid injury and damage refer to the service manual and be sure to use appropriate lifting techniques and equipment when lifting heavy parts. The cab assembly weight: 360 kg Mobile and manoeuvrable, the ZX190W-6 is prepared to roll on your jobsites. It quietly goes does its business with a strong, fuel-efficient Final Tier four (FT4)/EU Stage IV Isuzu diesel motor that options associate improved piston style and doesn't need a diesel particulate filter (DPF). A redesigned counterweight enhances visibility and options just like the HIOS IV half-lever management for hydraulic flow and fuel consumption contribute to potency. Plus, trailer-free travel makes transportation to your next job simple. The ZX190W-6 comes normal equipped with 5 years of ZXLink final, supplying you with 24/7 on-line access to machine location, health, utilization, fuel consumption and different valuable data.
