Hitachi ZX200-5A and ZX210LCN-5A Excavator Service Repair Manual Workshop Guide

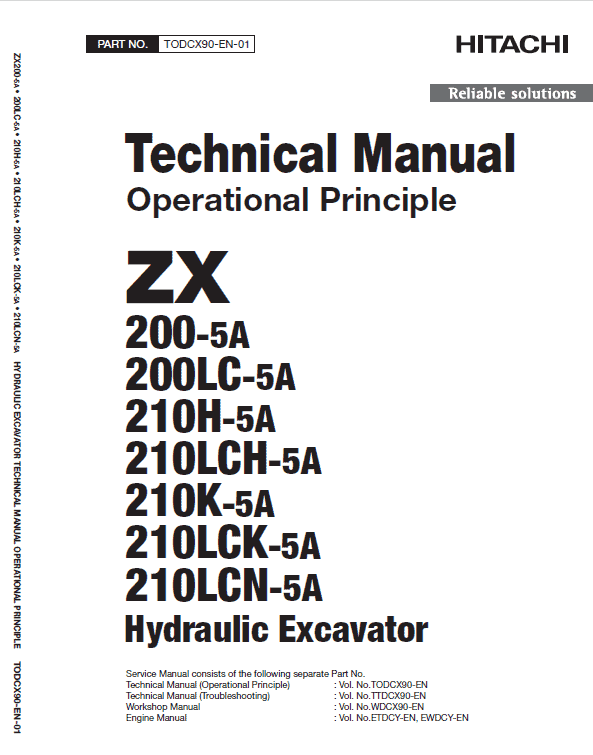

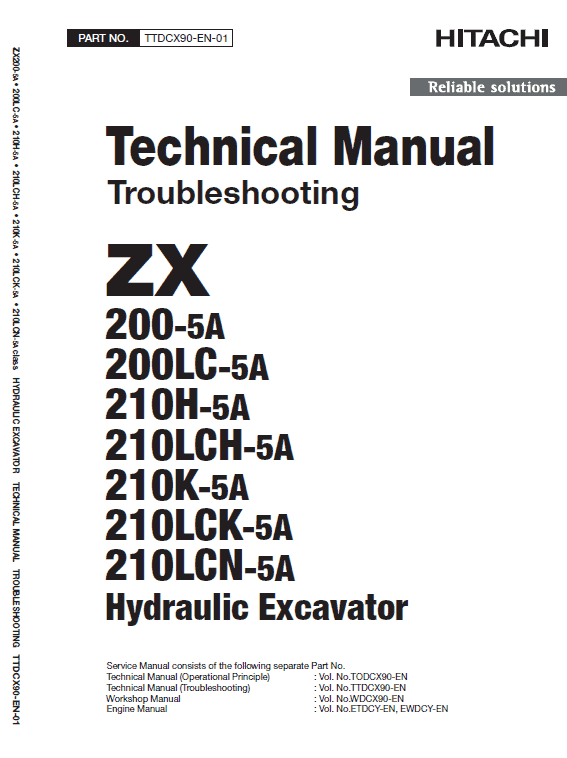

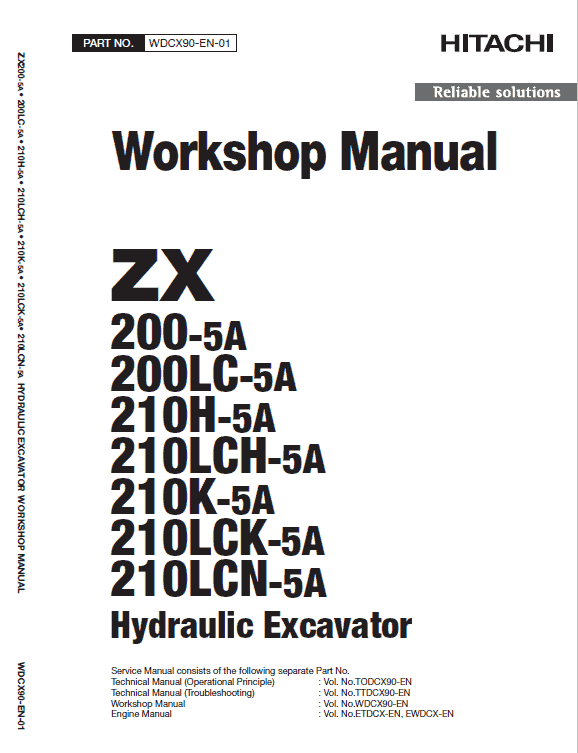

For Model: Excavator 200-5A 200LC-5A 210H-5A, 210LCH-5A 210K-5A 210LCK-5A 210LCN-5A Format: PDF Language: English Service Repair Manual consists of the following: See description for full details Description Hitachi ZX200-5A and ZX210LCN-5A Excavator Service Manual Hitachi Model: Excavator 200-5A 200LC-5A 210H-5A, 210LCH-5A 210K-5A 210LCK-5A 210LCN-5A Format: PDF Language: English Service Manual consists of the following: For Model ZX200-5A and all variant model mentioned above: Service Manual (Troubleshooting) : Vol. No.TODCX90 (470Pages) Service Manual (Operation) : Vol. No.TTDCX90 (395Pages) Workshop Manual : Vol. No.WDCX90 (543Pages) Circuit Diagram: 15 Pages SI Units (International System of Units) are used in those manual. Manual guide composition Hitachi ZX200-5A service manual consists of the Operating, Troubleshooting and the Workshop Manual. Information included in the Service Manual: Technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures. Information included in the Workshop Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assemble / disassemble procedures. To avoid injury and damage refer to the service manual and be sure to use appropriate lifting techniques and equipment when lifting heavy parts. The cab assembly weight: 370 kg (820 lb) Mobile and manoeuvrable, the ZX200LC is prepared to roll on your jobsites. It quietly goes does its business with a strong, fuel-efficient Final Tier four (FT4)/EU Stage IV Isuzu diesel motor that options associate improved piston style and doesn't need a diesel particulate filter (DPF). A redesigned counterweight enhances visibility and options just like the HIOS IV half-lever management for hydraulic flow and fuel consumption contribute to potency. Plus, trailer-free travel makes transportation to your next job simple. The ZX200-5A comes normal equipped with 5 years of ZXLink final, supplying you with 24/7 on-line access to machine location, health, utilization, fuel consumption and different valuable data.
