Hitachi ZX650LC-3 and ZX670LCH-3 Excavator Service Repair Manual Workshop Guide

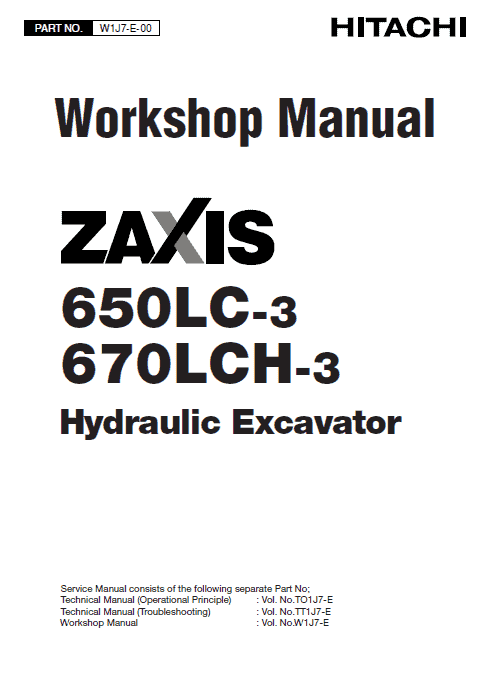

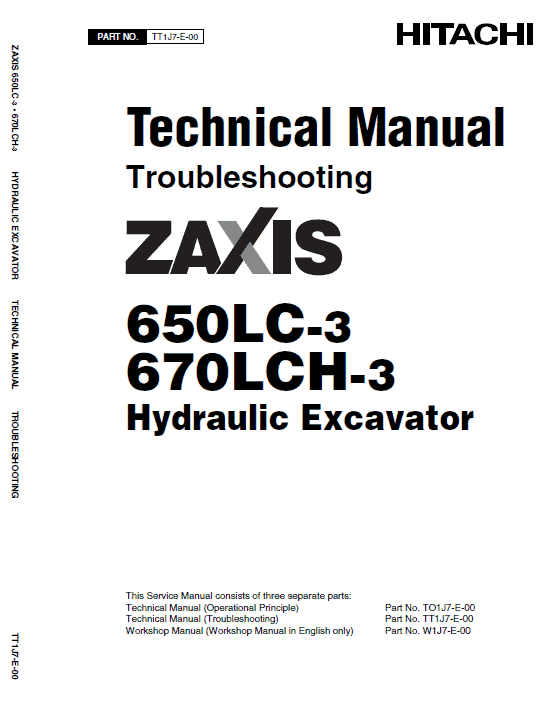

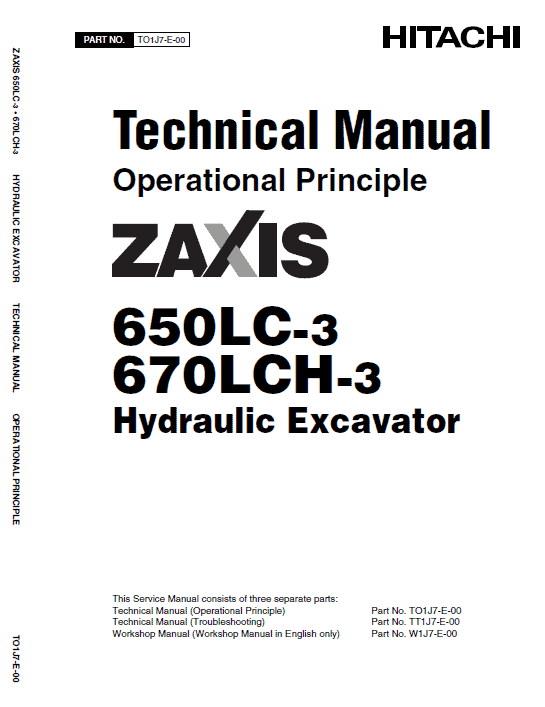

Manual is applicable for ZX650LC-3 and ZX670LCH-3 Language: English Format: PDF Service Repair Manual consists of the following separate Part No; Technical Manual (Operational Principle) : Vol. No.TO1J7 Technical Manual (Troubleshooting) : Vol. No.TT1J7 Workshop Manual : Vol. No.W1J7 Description Hitachi ZX650LC-3 and ZX670LCH-3 Excavator Manual Manual is applicable for ZX650LC-3 and ZX670LCH-3 Language: English Format: PDF Service Manual consists of the following separate Part No; Technical Manual (Operational Principle) : Vol. No.TO1J7 (338 Pages) Technical Manual (Troubleshooting) : Vol. No.TT1J7 (586 Pages) Workshop Manual : Vol. No.W1J7 (650 Pages) Owners Manuals: 365 Pages Electrical Circuit Diagram: 29 Pages This manual is written for an experienced technician to provide technical information needed to maintain and repair this machine. The machine specification and description according to destination may be explained on this manual. Hitachi ZX650LC-3 and ZX670LCH-3 Manual Composition This manual consists the Technical Manual, the Workshop Manual and the Service Manual. Information included in the Technical Manual: Technical information needed for redelivery and delivery, operation and activation of all devices and systems, operational performance tests, and troubleshooting procedures. Information included in the Service Manual: Technical information needed for maintenance and repair of the machine, tools and devices needed for maintenance and repair, maintenance standards, and removal / installation and assemble / disassemble procedures. Repair any defects and damage found, such as oil or water leaks, loose bolts, cracks and so on, before starting to test.
