HONDA BRV BR-V DG3 2021 Full Manual Set – WIRING DIAGRAMS

HONDA BR-V DG3 (2021) SYSTEMS WIRING DIAGRAMS + GROUND LOCATION LIST + RELAY LIST + COMPONENTS LOCATIONS SUPPLIED BOTH AS DOWNLOADABLE LINK AND PEN DRIVE SHIPPED.

This manuals include:

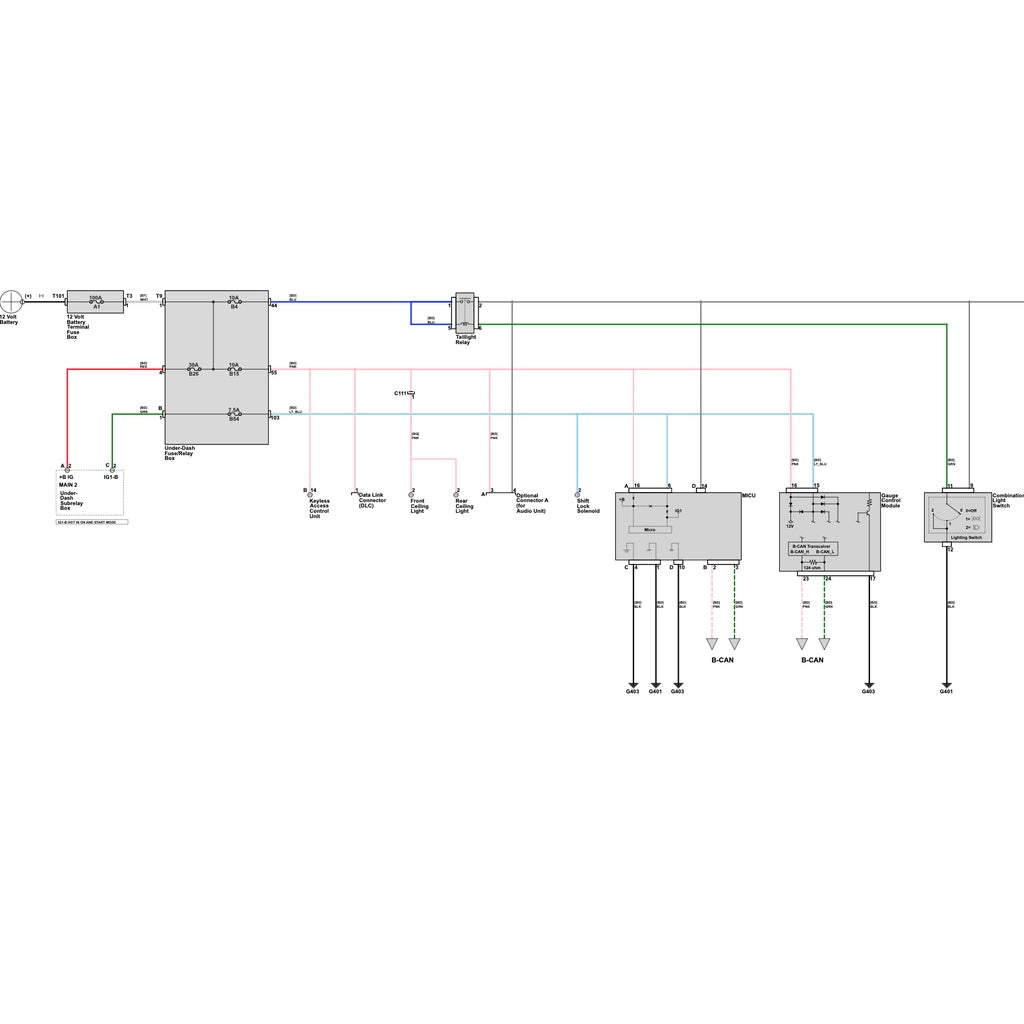

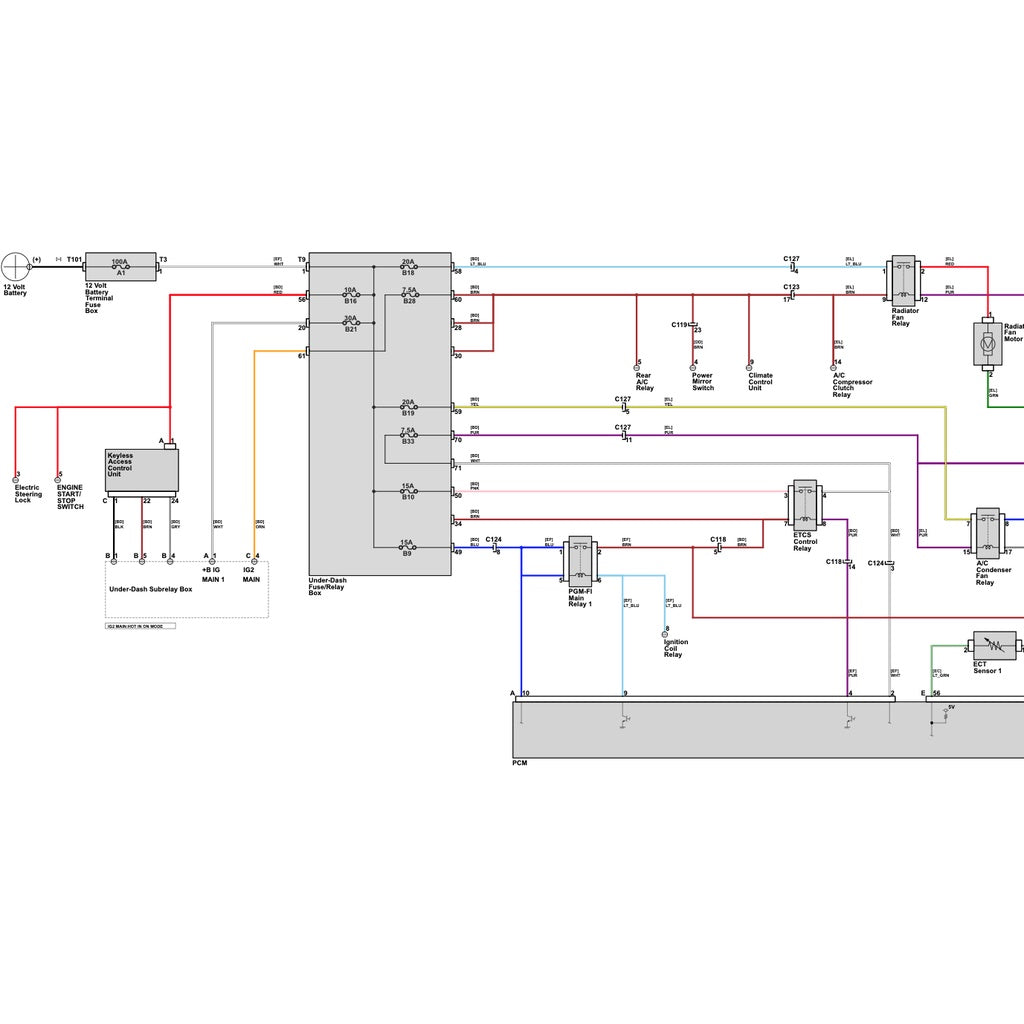

-  System wiring diagrams

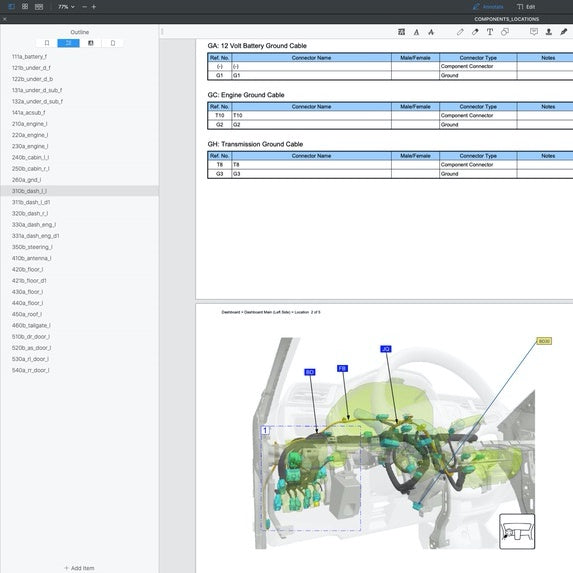

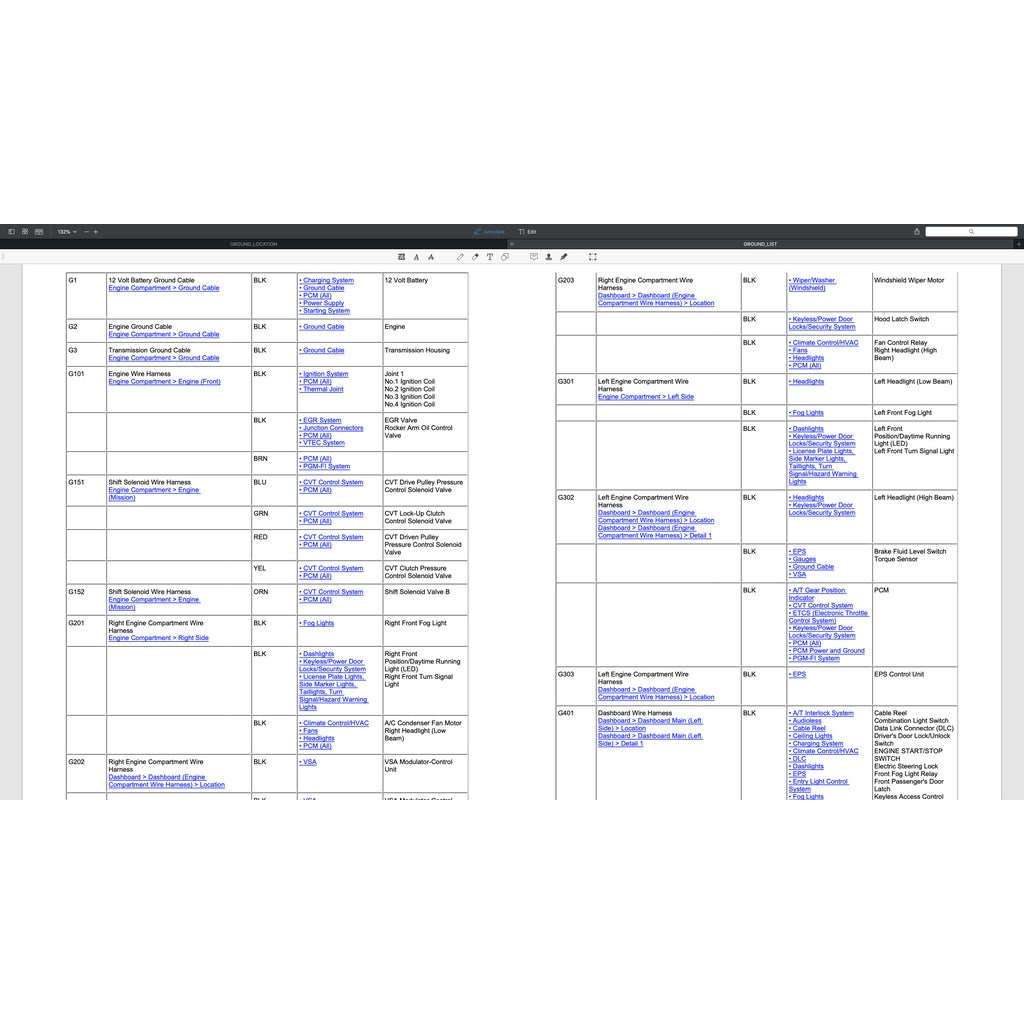

-  Ground location list
-  Relay list

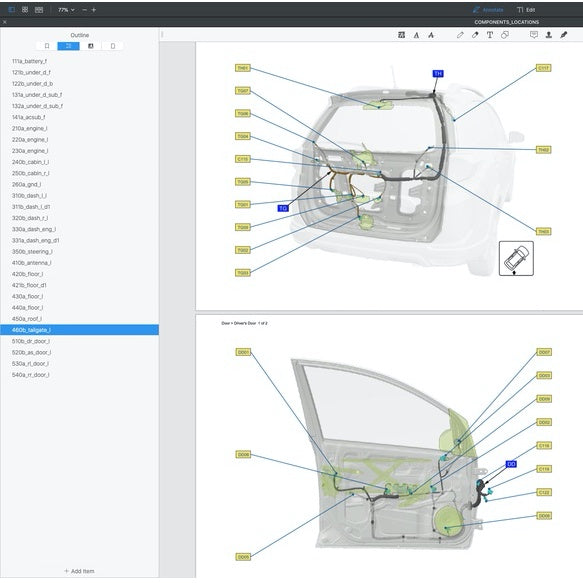

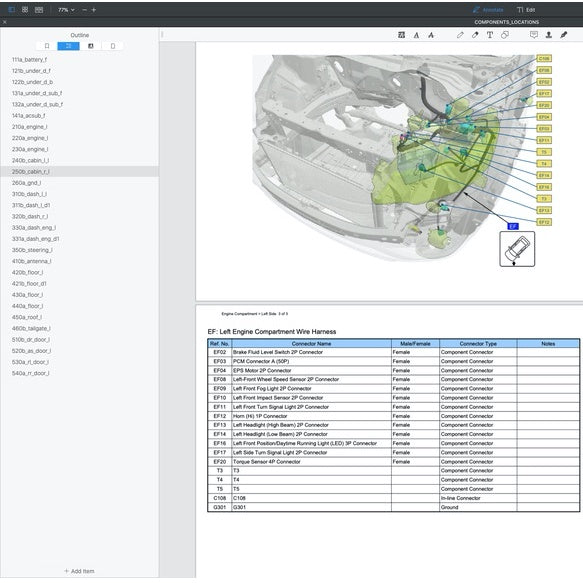

-  Components locations

Powertrain
Engine
Petrol:
1.5 L L15ZF DOHC i-VTEC I4 (DG3)
Transmission
6-speed manual
CVT
