HYUNDAI IONIQ HYBRID AE (2016-2022) SERVICE WORKSHOP MANUAL IN PDF FORMAT (1376 PAGES) SUPPLIED AS DOWNLOADABLE LINK.
This is an essential MUST-HAVE workshop manual issued by Hyundai Motors to their workshop dealers and technicians. It is perfectly suitable for the DIY mechanic or professional technician called in for servicing and trouble shooting. It's easy to browse through and highly visual with lots of targeted diagrams, blow aways and tables.
POWERTRAIN
Engine: 1.6 L Kappa II GDI HEV I4

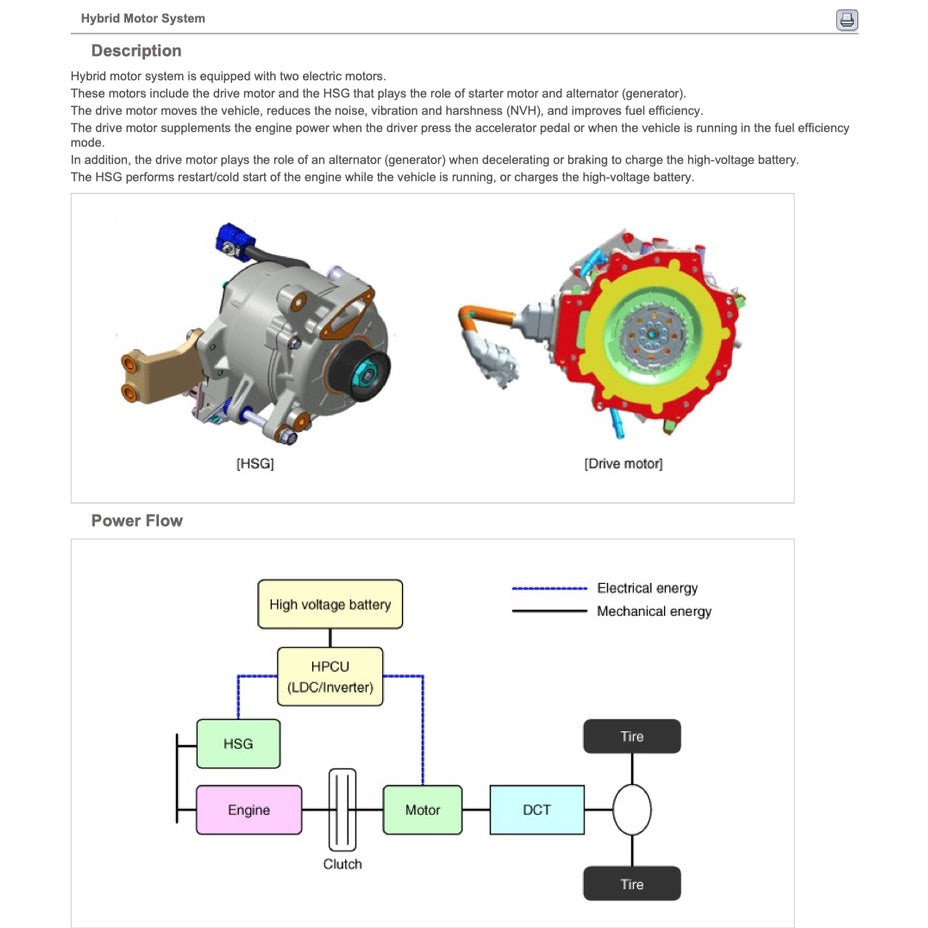

Electric motor: 32 kW (43 hp) AC Synchronous Permanent Magnet Motor

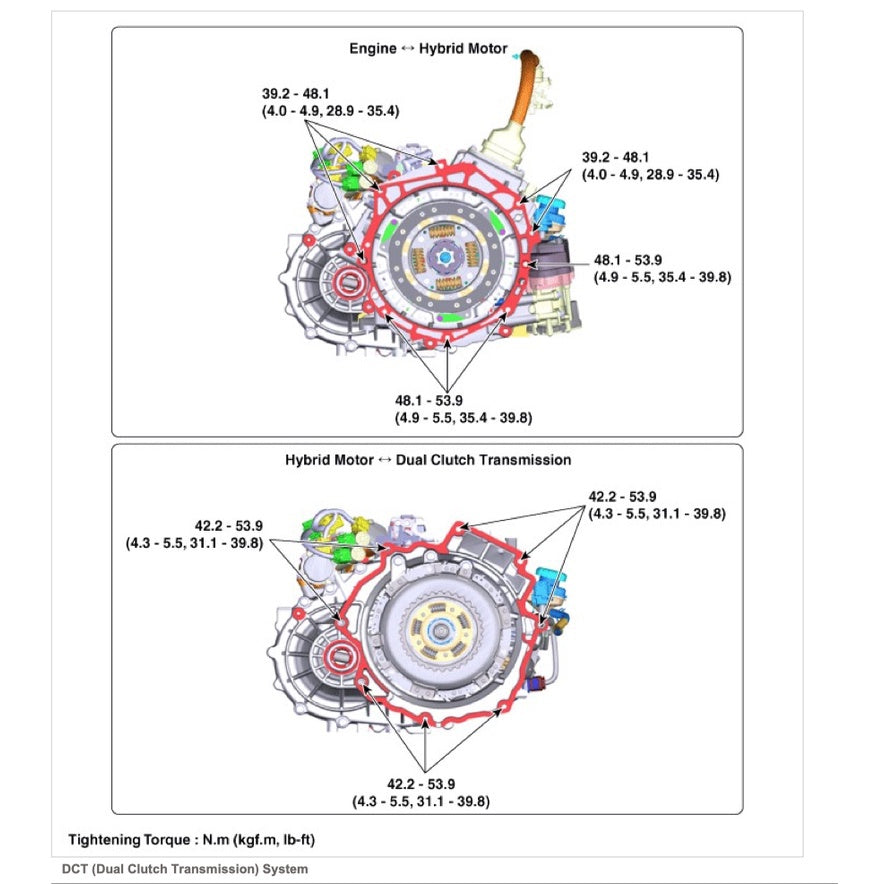

Transmission: 6-speed DCT
Battery: 1.56 kWh lithium-ion polymer battery
WHAT'S INSIDE ?
Detailed sub-steps expand on repair procedure information
Notes, cautions and warnings throughout each chapter pinpoint critical information.
Numbered instructions guide you through every repair procedure step by step.
Bold figure number help you quickly match illustrations with instructions.

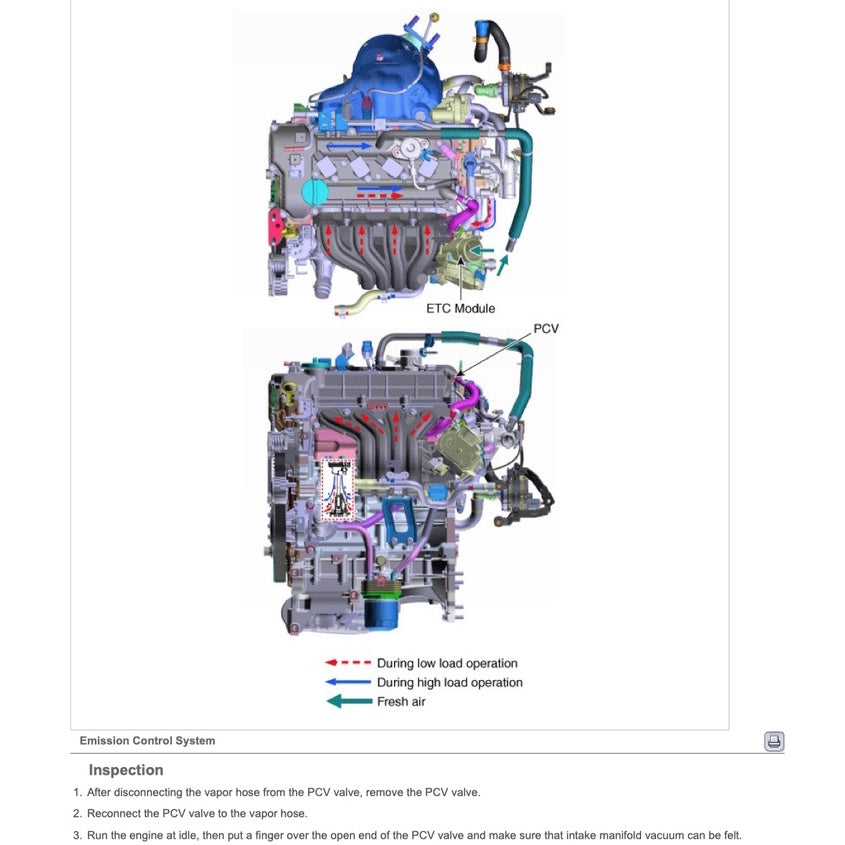

Detailed illustrations, drawings and photos guide you through every procedure.
Enlarged inset helps you identify and examine parts in detail.
Numbered table of contents easy to use so that you can find the information you need fast.
This manual also makes it easy to diagnose and repair problems with your machines electrical system.
Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use.
