HYUNDAI TUCSON ix35 LM (2010-2015) FACTORY SERVICE WORKSHOP MANUAL IN PDF FORMAT (
2100 PAGES
) AVAILABLE AS DOWNLOADABLE LINK.
This is the same service manual your local HYUNDAI dealer will use when doing a repair. This manual has detailed illustrations as well as step by step instructions. Pages are printable, so run off what you need and take it with you into the garage or workshop.
ENGINES FEATURED IN THIS MANUAL: 2.0 L Theta II MPi I4 & 2.4 L Theta II MPi I4
CAVEAT: MANUAL DOES
NOT
INCLUDE AIR CONDITIONING SYSTEM (HVAC)
REFERENCE POWERTRAIN:
Engine
Petrol:
1.6 L Gamma GDi I4
2.0 L Nu GDi I4
2.0 L Theta II MPi I4
2.4 L Theta II MPi I4
Diesel:
1.7 L U II CRDi I4
2.0 L R II CRDi I4
Transmission
5-speed manual
6-speed manual
6-speed automatic
WHAT'S INSIDE ?
Detailed sub-steps expand on repair procedure information
Notes, cautions and warnings throughout each chapter pinpoint critical information.
Numbered instructions guide you through every repair procedure step by step.
Bold figure number help you quickly match illustrations with instructions.

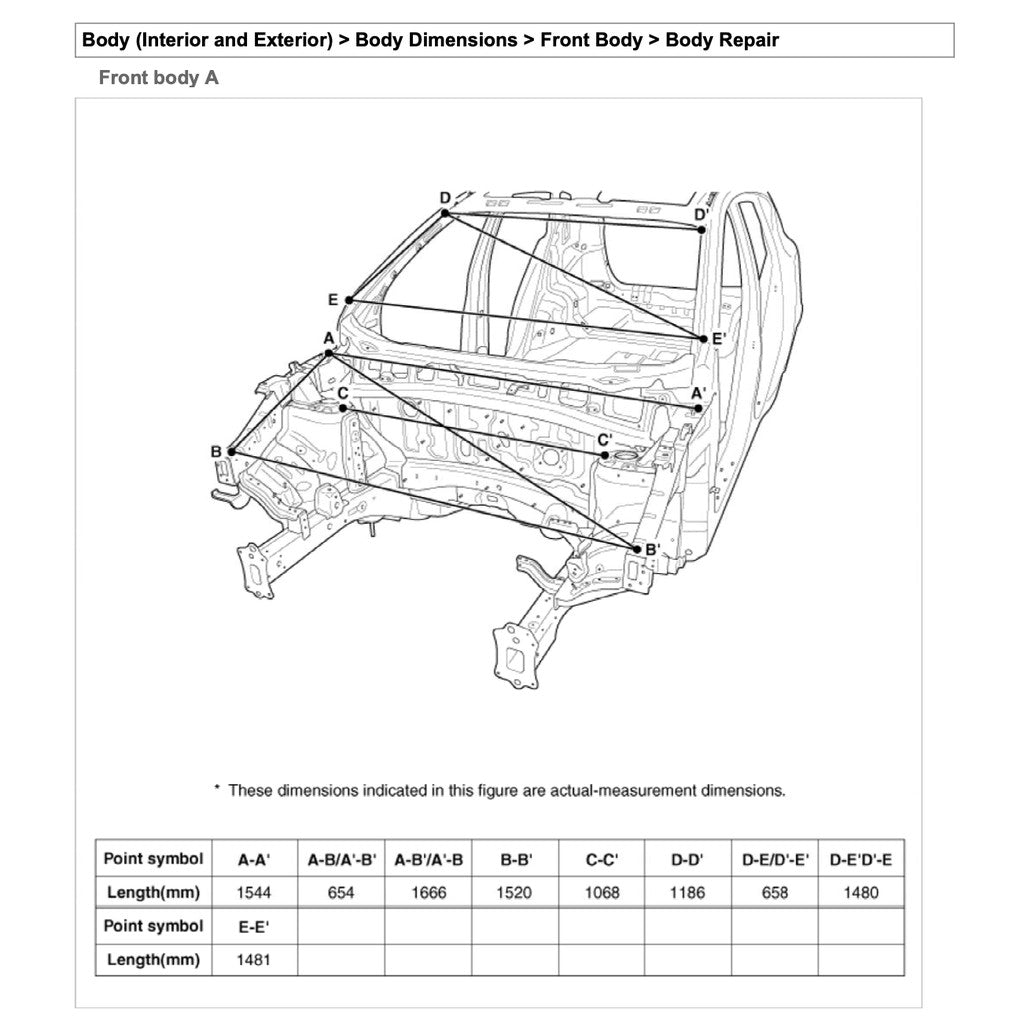

Detailed illustrations, drawings and photos guide you through every procedure.
Enlarged inset helps you identify and examine parts in detail.
Numbered table of contents easy to use so that you can find the information you need fast.
This manual also makes it easy to diagnose and repair problems with your machines electrical system.
Troubleshooting and electrical service procedures are combined with detailed wiring diagram for ease of use.
