Kawasaki 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Service Manual

Kawasaki 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Service Manual

Regular price $32.00 USD
Regular price Sale price $32.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

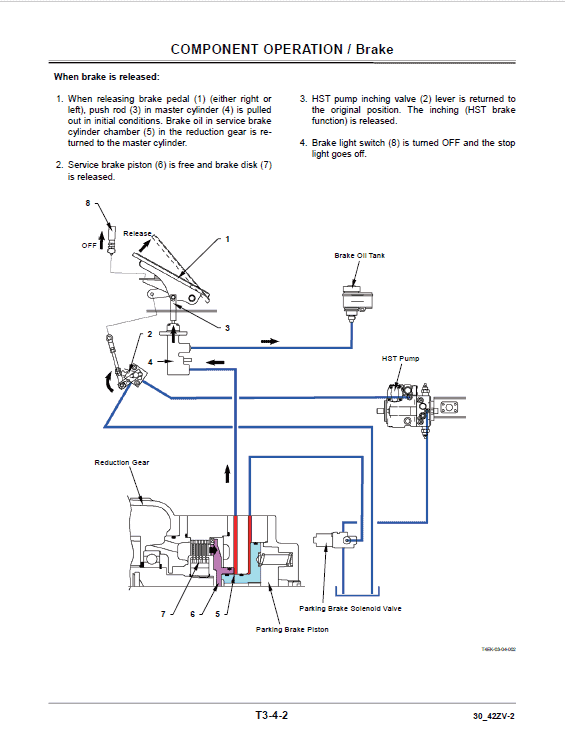

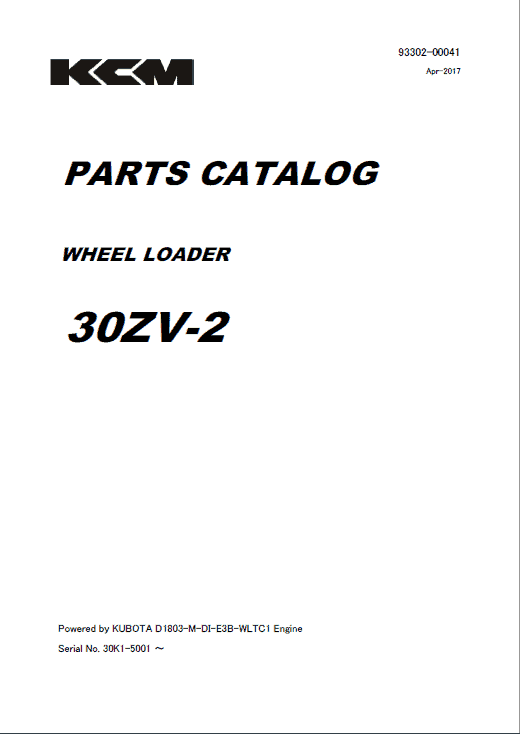

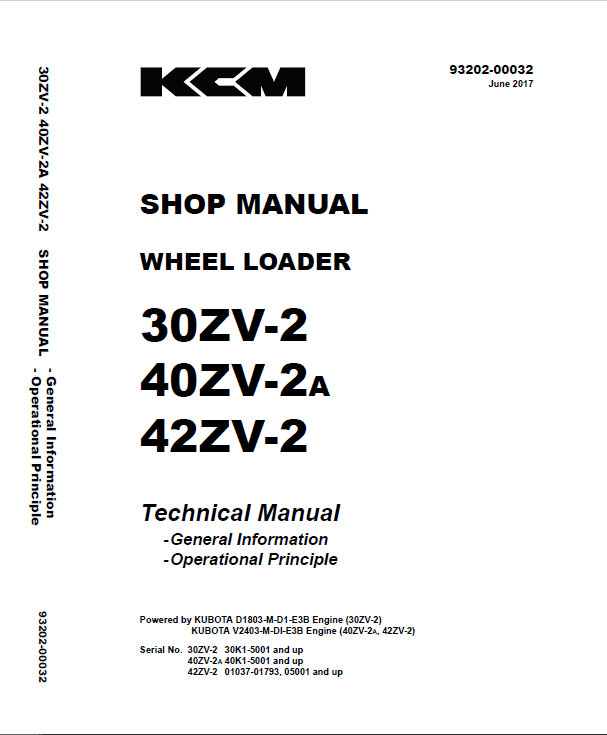

Machinery Type: 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Language English Format: PDF Kawasaki 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Repair Service Manual – 642 Pages Kawasaki 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Operating (Owners) Manual – 267 Pages Parts Catalog: 327 Pages Description Kawasaki 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Service Manual Machinery Type: 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Language English Format: PDF Kawasaki 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Repair Service Manual – 642 Pages Kawasaki 30ZV-2, 40ZV2A, 42ZV-2 Wheel Loader Operating (Owners) Manual – 267 Pages Parts Catalog: 327 Pages Manual Details This manual contains guidelines on repair and maintenance work for the 30ZV-2, 40ZV2A, 42ZV-2 Loader. All explanations, drawings and photographs are current at the time of going to press. Repair and maintenance work should be carried out systematically and logically after thoroughly reading and understanding this manual to ensure that the shovel loader gives reliable, long-term service. The manual is structured as follows to make it easy to use SHOP SERVICE MANUAL CONTENT: 01 GENERAL OUTLINE 10 FUNCTIONS AND CONSTRUCTION 20 INSPECTION AND ADJUSTMENT 30 DISASSEMBLY AND ASSEMBLY 40 MAINTENANCE STANDARDS The most important maintenance operations are those related to safety. The points that  have special significance from the safety point-of-view are indicated with a A mark in this manual. Manual Extract: PRACTICE SAFE MAINTENANCE Before servicing the machine: 1. Park the machine on a level surface. 2. Lower the bucket to the ground. 3. Turn the auto-idle switch off. 4. Run the engine at slow idle speed without load for 3 minutes. 5. Turn the key switch to OFF to stop engine. 6. Relieve the pressure in the hydraulic system by moving the control levers several times. 7. Remove the key from the switch. 8. Attach a "Do Not Operate" tag on the control lever. 9. Lower the lock lever to the LOCK position. 10. Lock bar connects the front and rear frames. 11. Allow the engine to cool. • If a maintenance procedure must be performed with the engine running, do not leave machine unattended. • Never work under a machine raised by the lift arm.
