Komatsu HM300-1 Dump Truck Service Manual Workshop Guide

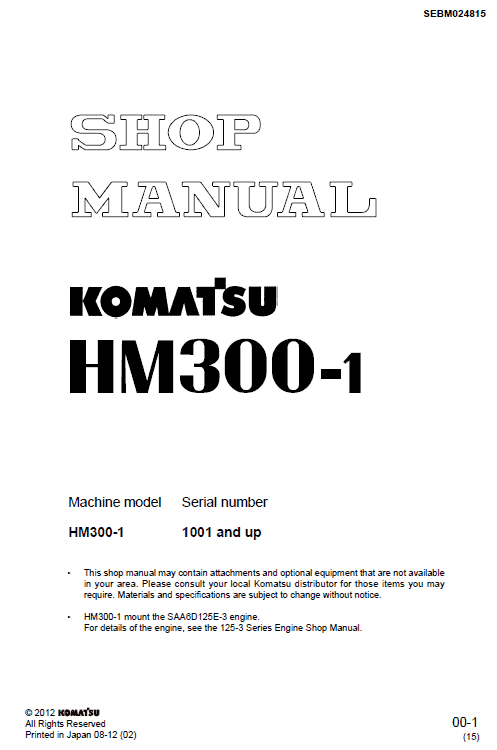

Manual Included: Shop Manual: 1056 pages (SEBM024815) Operating Manual: 277 pages (TEN00044-10) Specifications: Brand: Komatsu Model: HM300-1 Serial Number: 1001 and up Type: Dump Truck Manuals: Shop Manual and Operating Manual Publication Number: SEBM024815 and TEN00044-10 Language: English Format: PDF Description Table of Contents 01 GENERAL …………………………………………………………………………….. 01-1 10 STRUCTURE, FUNCTION AND MAINTENANCE STANDARD …… 10-1 20 TESTING AND ADJUSTING ……………………………………………………. 20-1 30 DISASSEMBLY AND ASSEMBLY …………………………………………… 30-1 90 OTHERS ……………………………………………………………………………….. 90-1 GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING for KOMATSU Dump Truck HM300-1 This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. Removing, installing, and drying connectors and wiring harnesses Disconnecting connectors (1) Hold the connectors when disconnecting. When disconnecting the connectors, hold the connectors and not the wires. For connectors held by a screw, loosen the screw fully, then hold the male and female connectors in each hand and pull apart. For connectors which have a lock stopper, press down the stopper with your thumb and pull the connectors apart. Never pull with one hand. (2) When removing from clips When removing a connector from a clip, pull the connector in a parallel direction to the clip. If the connector is twisted up and down or to the left or right, the housing may break
