Komatsu PC138USLC-10 Excavator Service Manual Workshop Guide

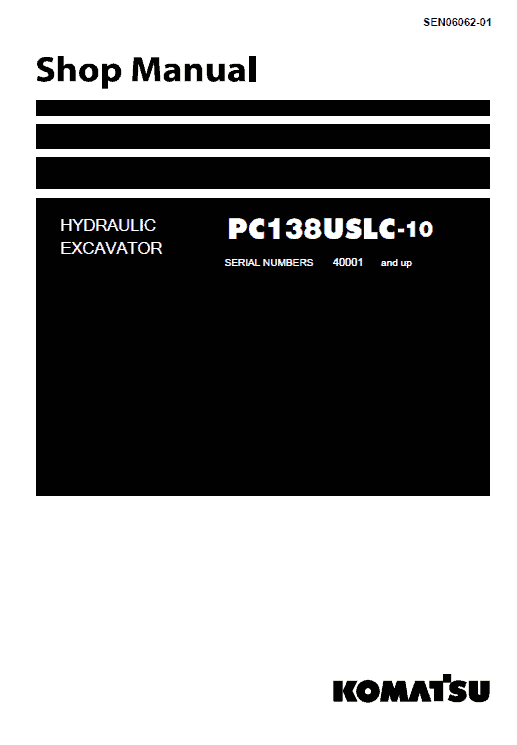

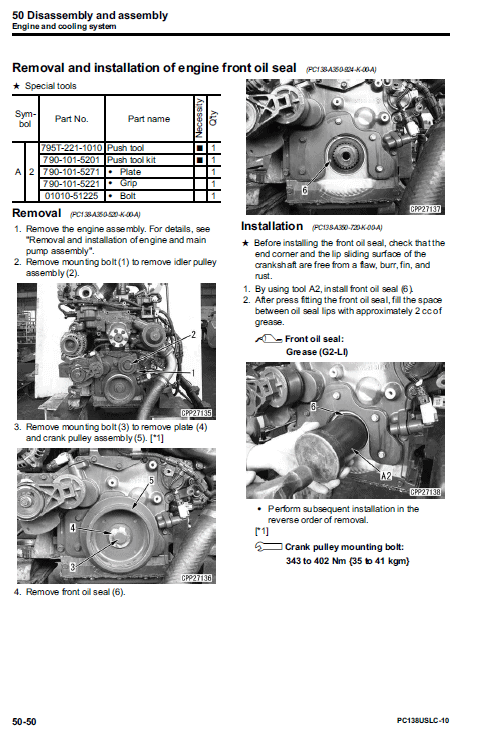

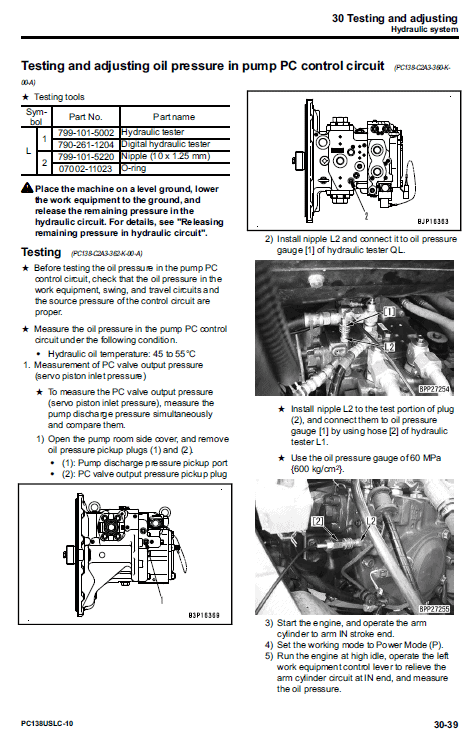

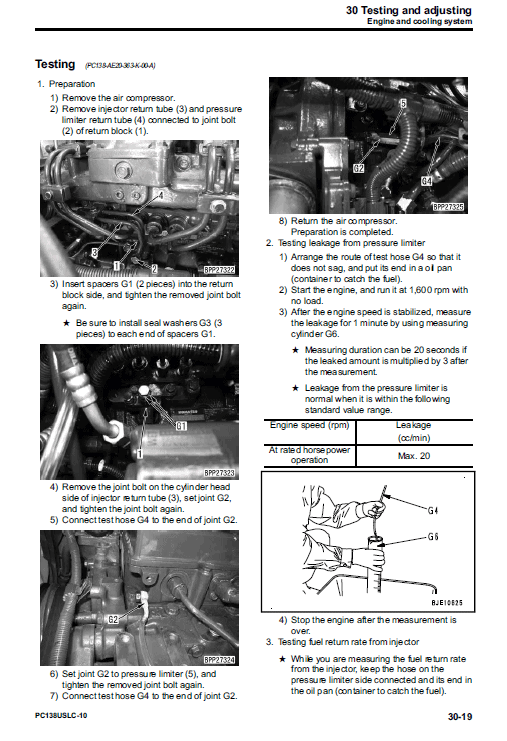

Manual Included: Shop Manual: 1388 pages Specifications: Brand: Komatsu Model: PC138USLC-10 Type: Excavator Serial Number: 40001 and up Manuals: Shop Manual Publication Number: SEN06062-01 Language: English Format: PDF Description Table of Contents 00 Index and foreword 01 Specification 10 Structure, function and maintenance standard 20 Standard value table 40 Troubleshooting 50 Disassembly and assembly 60 Maintenance standard 90 Diagrams and drawings GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator PC138USLC-10 This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. When raising heavy components, use a hoist or crane. Check that the wire rope, chains and hooks are free from damage. Always use lifting equipment which has ample capacity. Install the lifting equipment at the correct places. Use a hoist or crane and operate slowly to prevent the component from hitting any other part. Do not work with any part still raised by the hoist or crane. When replacing the air conditioner unit, air conditioner compressor, condenser or receiver drier, etc., collect the refrigerant (air conditioner gas: R134a) from the air conditioner circuit before disconnecting the air conditioner hoses.
