Komatsu PC150LC-5 Excavator Service Manual Workshop Guide

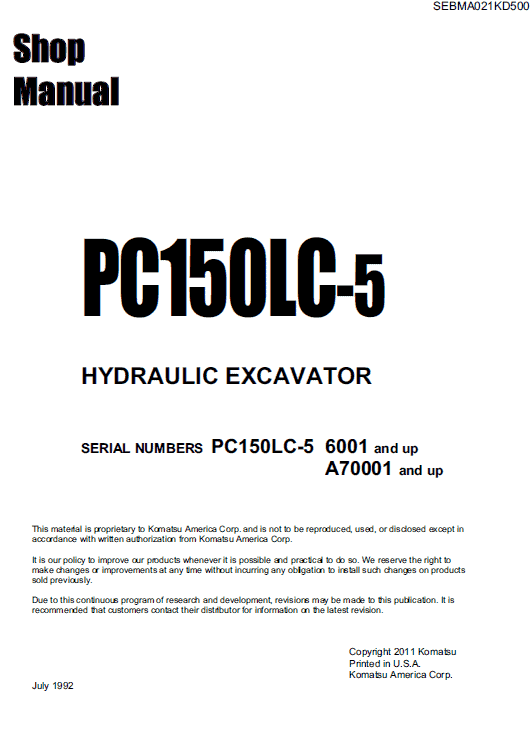

Manual Included: Shop Manual: 495 pages Specifications: Brand: Komatsu Model: PC150LC-5 Type: Excavator Serial Numbers: 6001 and up A70001 and up Manuals: Shop Manual Publication Number: SEBMA021KD500 Language: English Format: PDF Description Table of Contents 10 STRUCTURE, FUNCTION 20 TESTING AND ADJUSTING 30 DISASSEMBLY AND ASSEMBLY 40 MAINTENANCE STANDARD GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator This section of the manual explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations.
