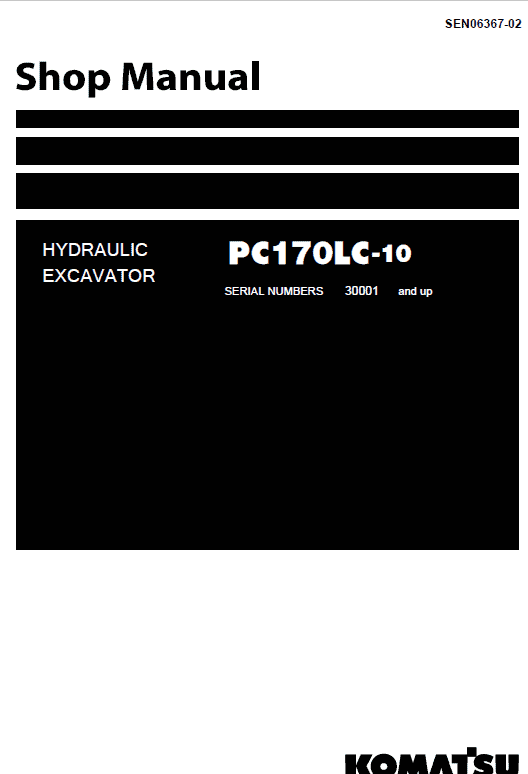

Komatsu PC170LC-10 Excavator Service Manual Workshop Guide

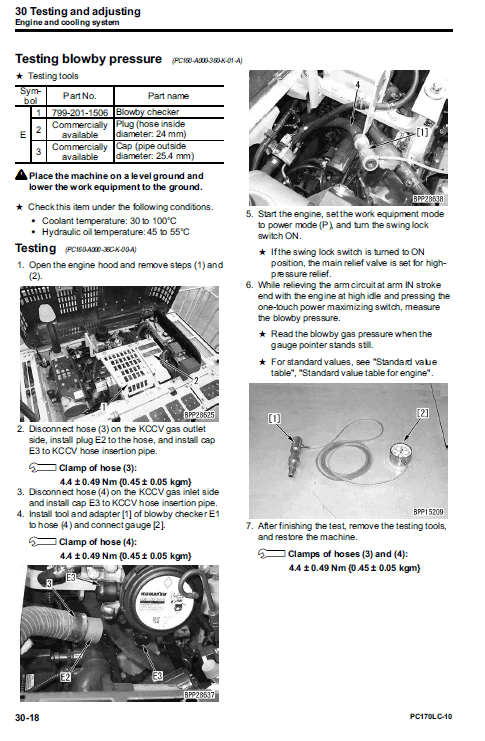

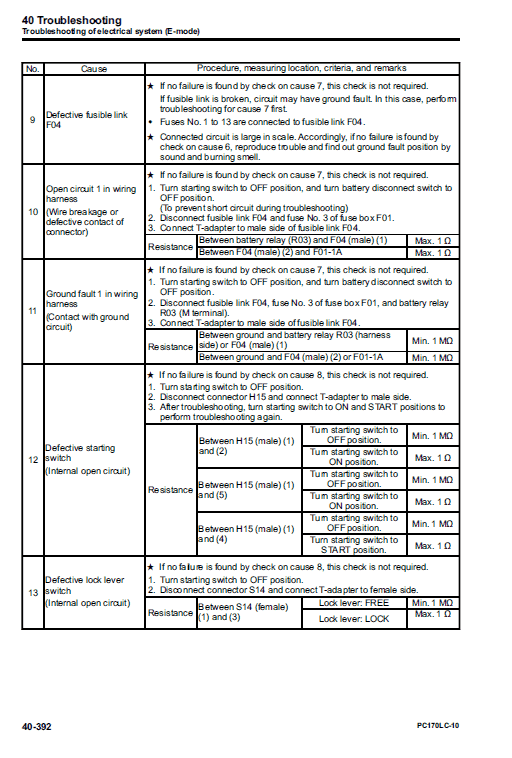

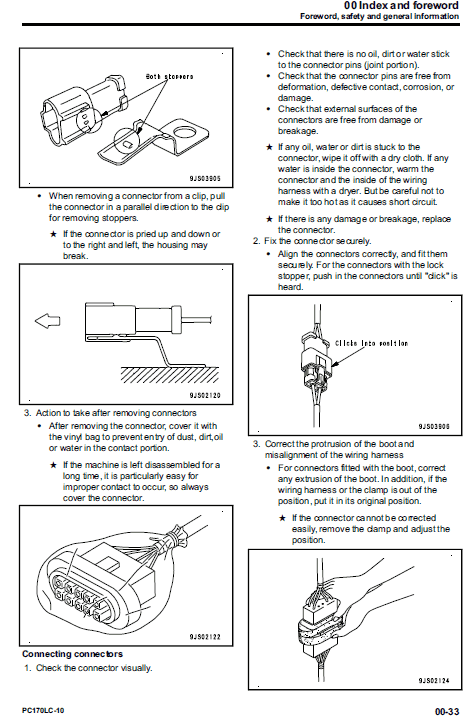

Manual Included: Shop Manual: 1450 pages Specifications: Brand: Komatsu Model: PC170LC-10 Type: Excavator Serial Numbers: 30001 and up Manuals: Shop Manual Publication Number: SEN06367-02 Language: English Format: PDF Description Table of Contents 00 Index and foreword 01 Specification 10 Structure and function 20 Standard value tables 30 Testing and adjusting 40 Troubleshooting 50 Disassembly and assembly 60 Maintenance standard 80 Appendix GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. The symbol ! is the manual is used for such matters that require special cautions during the work. The work indicated by the caution mark should be performed according to the instructions with special attention to the cautions. Should hazardous situation occur or be anticipated during such work, be sure to keep safe first and take every necessary measure.
