Komatsu PC200LL-6 PC220LL-6 Excavator Service Manual Workshop Guide

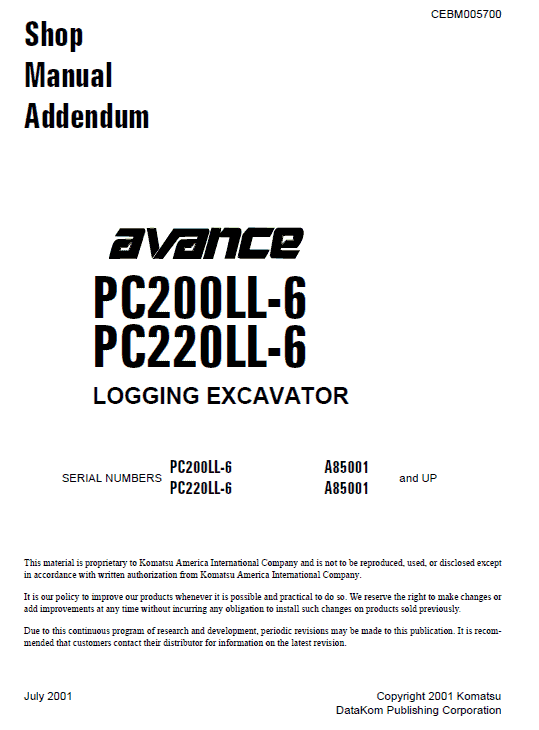

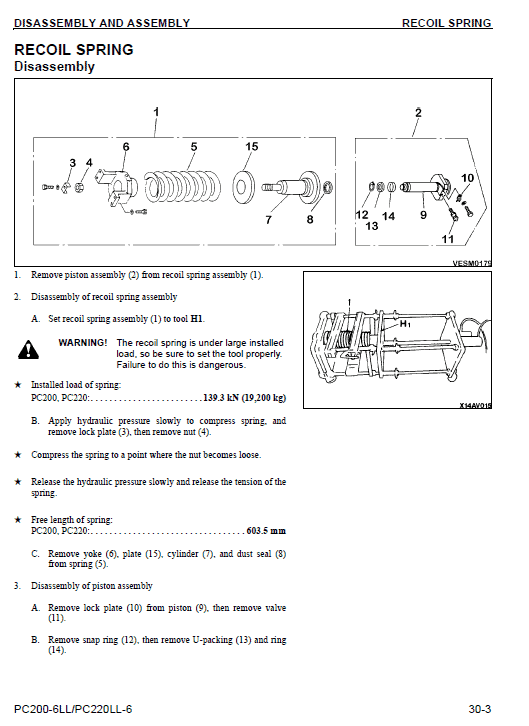

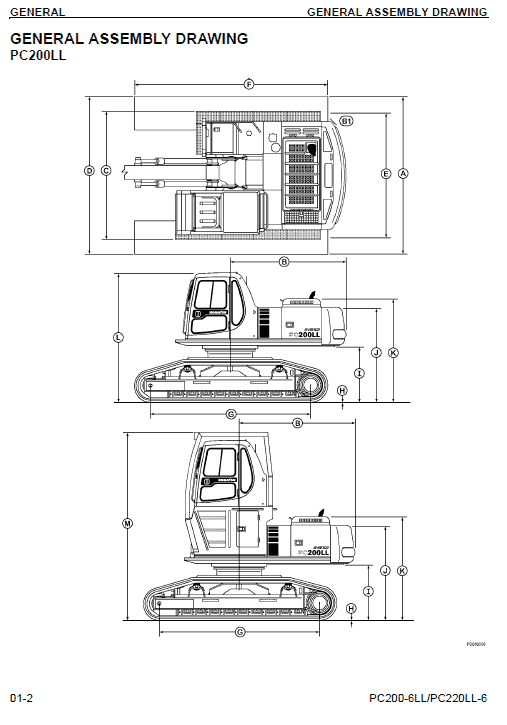

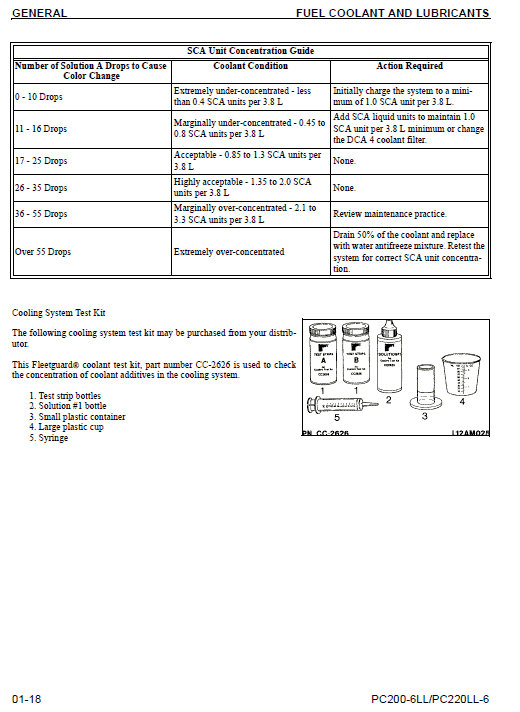

Manual Included: Shop Manual: 708 pages Specifications: Brand: Komatsu Model: PC200LL-6, PC220LL-6 Serial Numbers: PC200LL-6: A85001 and up PC220LL-6: A85001 and up Type: Excavator Manuals: Shop Manual Publication Number: CEBM005700 Language: English Format: PDF Description Table of Contents 01 GENERAL 10 STRUCTURE AND FUNCTION 20 STANDARD VALUE TABLES 30 TESTING AND ADJUSTING 40 TROUBLESHOOTING 50 DISASSEMBLY AND ASSEMBLY 60 MAINTENANCE STANDARD 80 AIR CONDITIONER 90 DIAGRAMS AND SCHEMATICS GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations.
