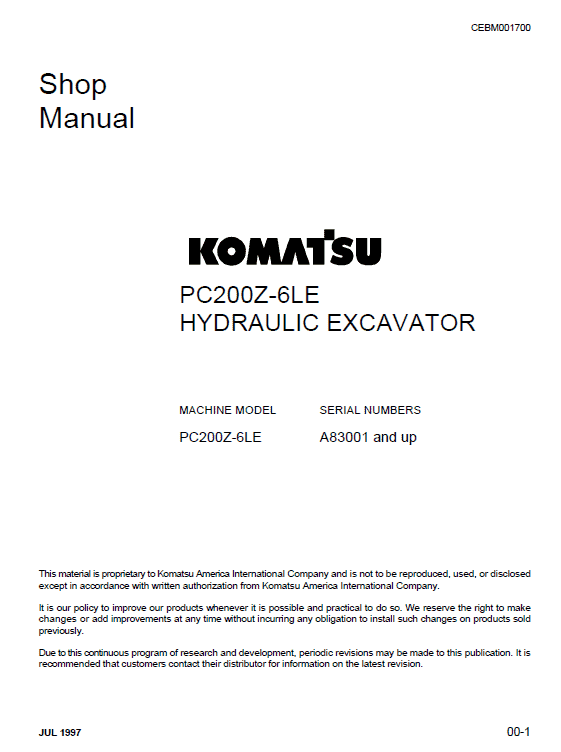

Komatsu PC200Z-6LE Excavator Service Manual Workshop Guide

Manual Included: Shop Manual: 485 pages Specifications: Brand: Komatsu Model: PC200Z-6LE Serial Number: A83001 and up Type: Excavator Manuals: Shop Manual Publication Number: CEBM001700 Language: English Format: PDF Description Table of Contents 01 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 01-1 10 STRUCTURE AND FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1 20 TESTING, ADJUSTING AND TROUBLESHOOTING . . . . . . . . . . 20-1 30 DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . 30-1 40 MAINTENANCE STANDARD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40-1 GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. Method of using troubleshooting table for each troubleshooting mode. a. Troubleshooting code number and problem. The title of the troubleshooting chart gives the troubleshooting code, service code and failure mode (problem with the machine). b. Distinguishing conditions. Even with the same failure mode (problem), the method of troubleshooting may differ according to the model, component, or problem. In such cases, the failure mode (problem) is further divided into sections marked with small letters, so go to the appropriate section to carry out troubleshooting. If the troubleshooting table is not divided into sections, start the troubleshooting from the first check item in the failure mode.
