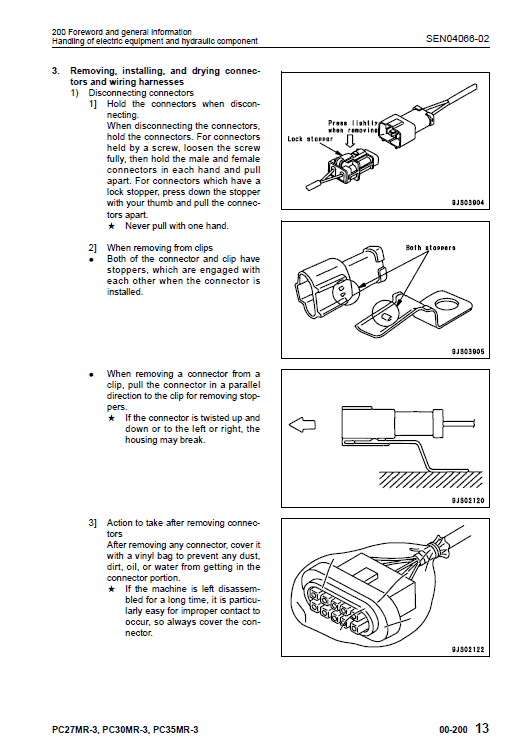

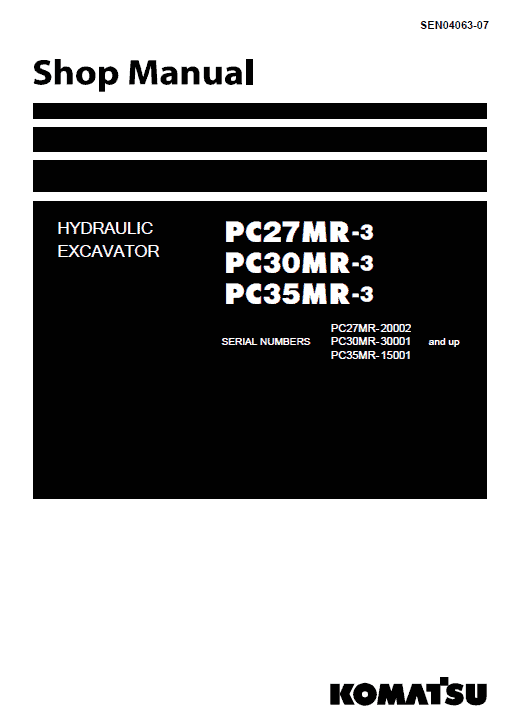

Komatsu PC27MR-3, PC30MR-3, PC35MR-3 Excavator Service Manual Workshop Guide

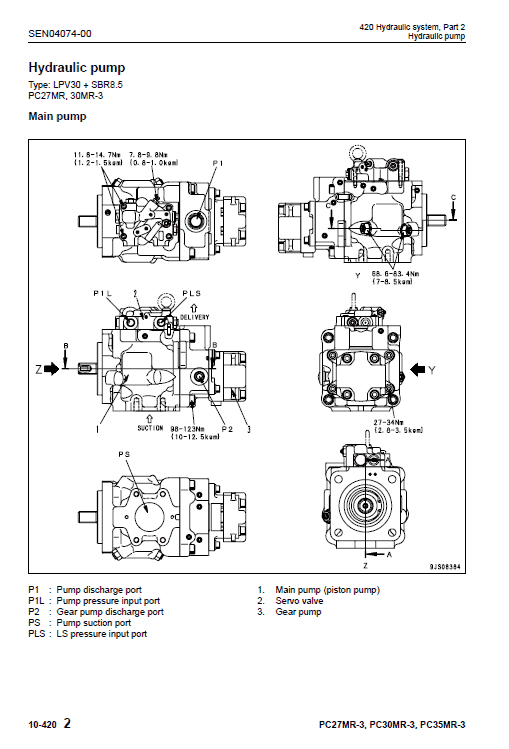

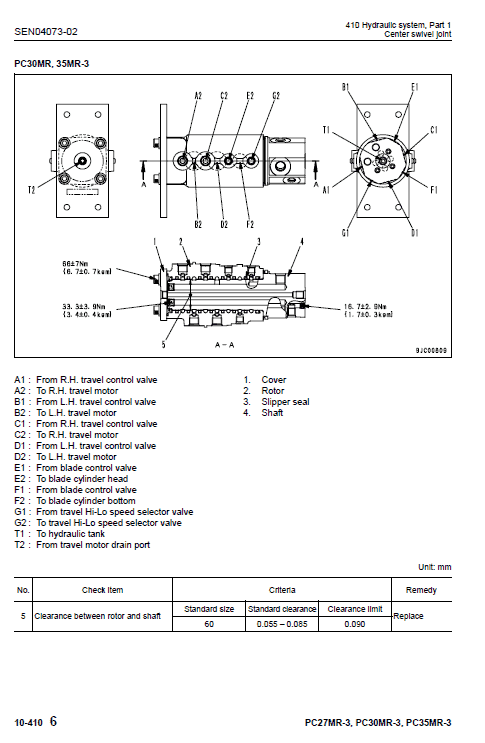

Manual Included: Shop Manual: 779 pages Specifications: Brand: Komatsu Model: PC27MR-3, PC30MR-3, PC35MR-3 Type: Excavator Serial Numbers: PC27MR-3: 20002 and up PC30MR-3: 30001 and up PC35MR-3: 15001 and up Manuals: Shop Manual Publication Number: SEN04063-07 Language: English Format: PDF Description Table of Contents 00 Index and foreword 01 Specification 10 Structure, function and maintenance standard 20 Standard value table 40 Troubleshooting 50 Disassembly and assembly 90 Diagrams and drawings GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator PC27MR-3, PC30MR-3, PC35MR-3 This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. When raising heavy components, use a hoist or crane. Check that the wire rope, chains and hooks are free from damage. Always use lifting equipment which has ample capacity. Install the lifting equipment at the correct places. Use a hoist or crane and operate slowly to prevent the component from hitting any other part. Do not work with any part still raised by the hoist or crane. In the Manual Interference limit refers to the allowable maximum interference between the hole of a part and the shaft of another part to be assembled is called the interference limit. The interference limit shows the repair limit of the part of smaller tolerance. If the interference between the parts exceeds the interference limit, they must be replaced or repaired.
