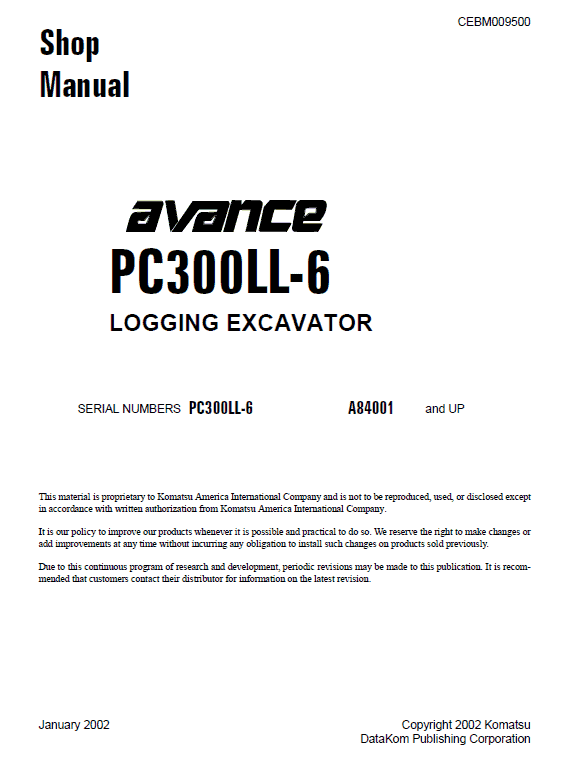

Komatsu PC300LL-6 Excavator Service Manual Workshop Guide

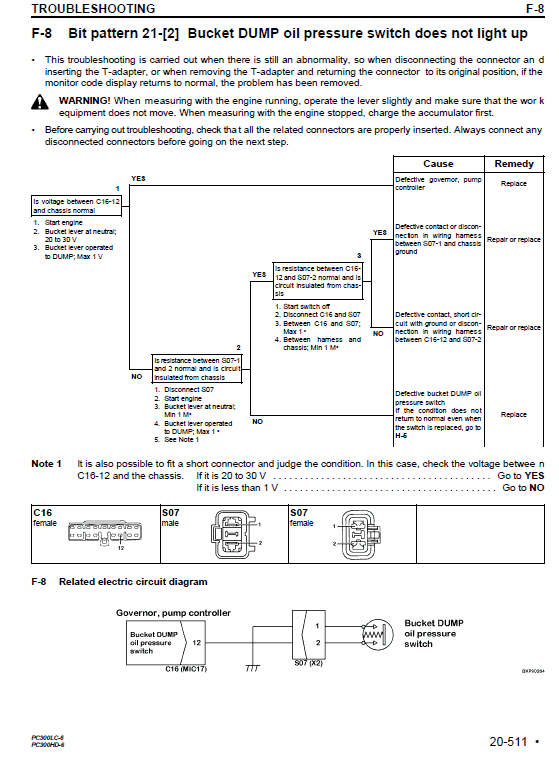

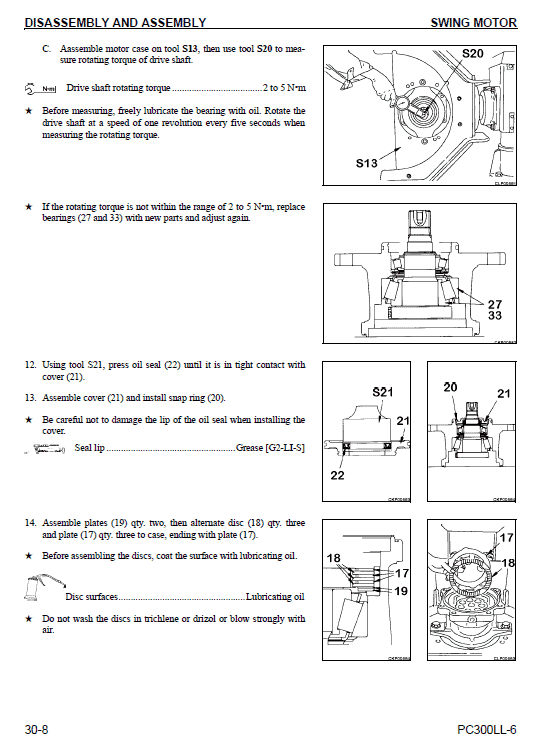

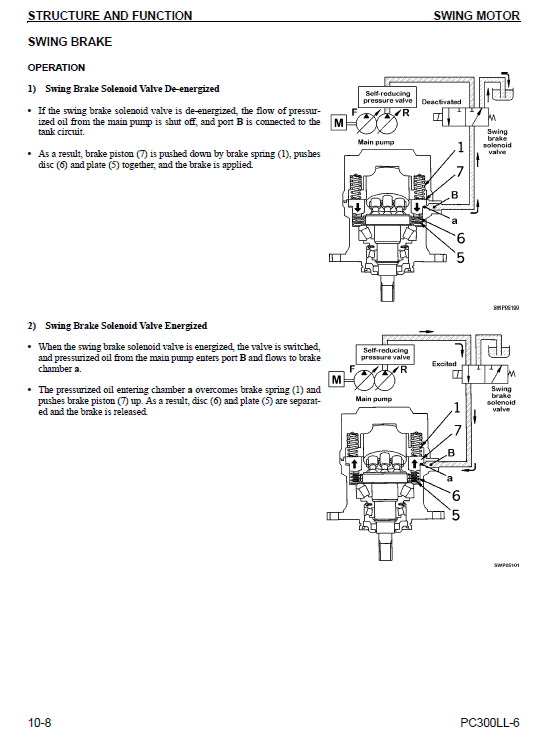

Manual Included: Shop Manual: 862 pages Specifications: Brand: Komatsu Model: PC300LL-6 Serial Number: A84001 and up Type: Excavator Manuals: Shop Manual Publication Number: CEBM009500 Language: English Format: PDF Description Table of Contents 10. STRUCTURE AND FUNCTION……………………………………………………………………. 10-1 20. TESTING AND ADJUSTING ……………………………………………………………………….. 20-1 30. DISASSEMBLY AND ASSEMBLY ………………………………………………………………. 30-1 90. OTHER………………………………………………………………………………………………………. 90-1 GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. When installing the idler and recoil spring, assemble so that the position of the greasing plug on the idler is on the outside for the right side of the machine and on the inside for the left side of the machine.
