Komatsu PC400-5, PC400LC-5, PC400HD-5 Excavator Service Manual Workshop Guide

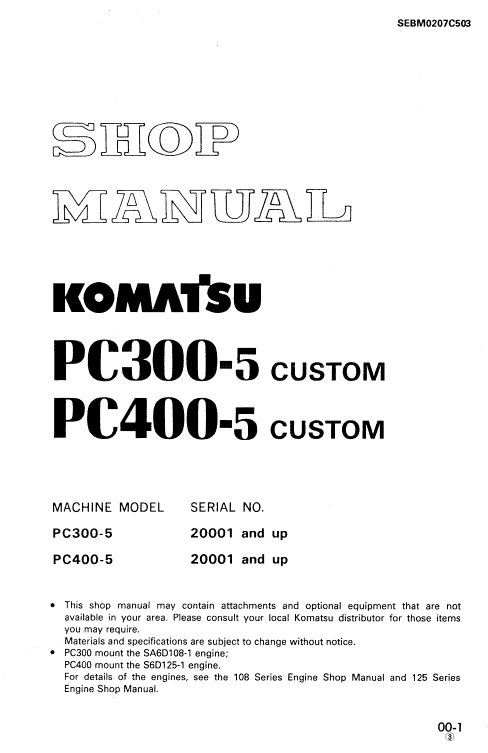

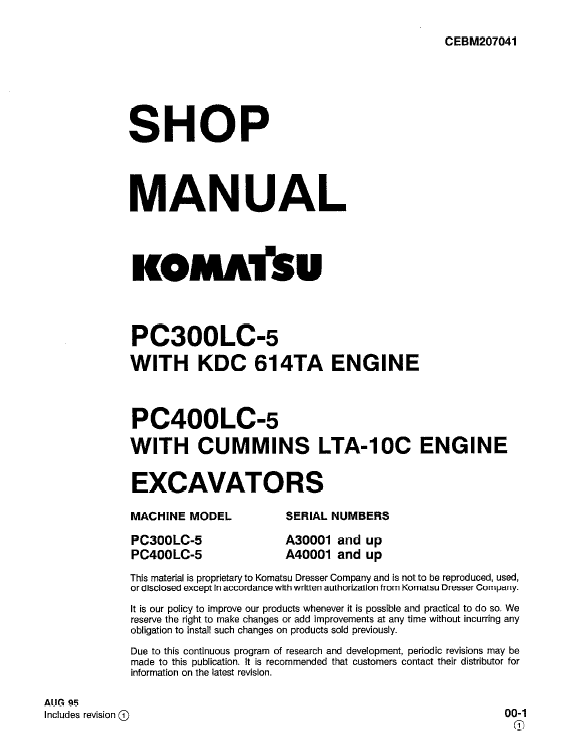

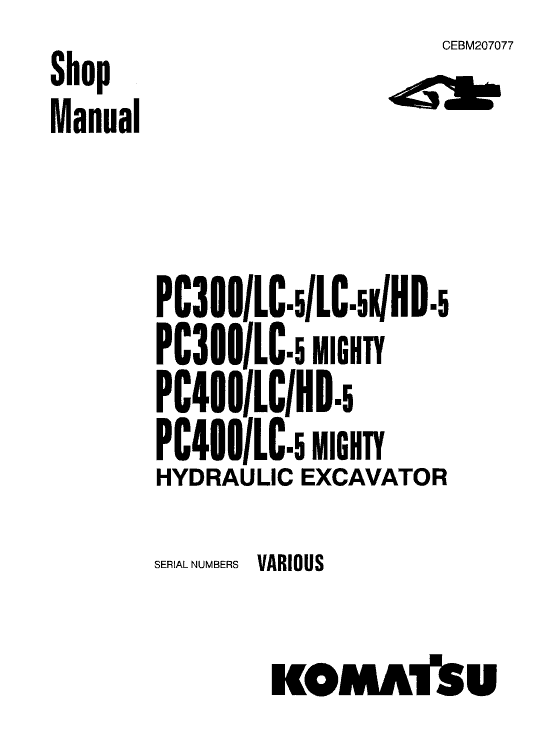

Manual Included: Shop Manual: 683 pages, 748 pages and 525 pages Specifications: Brand: Komatsu Model: PC400-5, PC400LC-5, PC400HD-5 Type: Excavator Serial Numbers: CEBM207077: Various CEBM207041: PC300LC-5: A30001 and up, PC400LC-5: A40001 and up SEBM0207C503: PC300-5: 20001 and up, PC400-5: 20001 and up Manuals: Shop Manual Publication Number: CEBM207077, CEBM207041, SEBM0207C503 Language: English Format: PDF Description Table of Contents 01 GENERAL 10 STRUCTURE AND FUNCTION 20 TESTING AND ADJUSTMENT 30 DISASSEMBLY AND ASSEMBLY 40 MAINTENANCE STANDARD 99 OTHER METRIC CONVERSIONS GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. MAINTENANCE STANDARD This section gives the judgement standards when inspecting disassembled parts.
