Komatsu PC600-6, PC600LC-6 Excavator Service Manual Workshop Guide

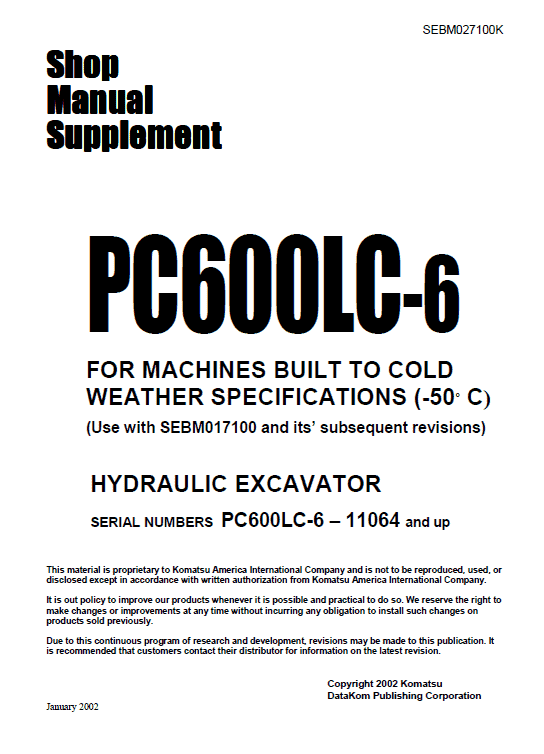

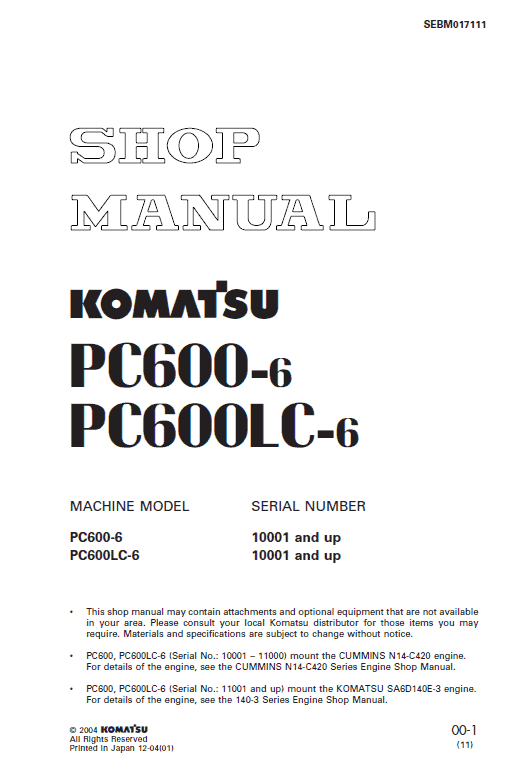

Manual Included: Shop Manual: 1041 pages and 766 pages Specifications: Brand: Komatsu Model: PC600-6, PC600LC-6 Type: Excavator Serial Numbers: SEBM017111: PC600-6, PC600LC-6 – 10001 and up SEBM027100K: PC600LC-6 – 11064 and up Manuals: Shop Manual Publication Number: SEBM017111 and SEBM027100K Language: English Format: PDF Description Table of Contents 01 GENERAL ……………………………………………………………… 01-1 10 STRUCTURE AND FUNCTION ……………………………….. 10-1 20 TESTING AND ADJUSTING…………………………………… 20-1 30 DISASSEMBLY AND ASSEMBLY …………………………… 30-1 40 MAINTENANCE STANDARD………………………………….. 40-1 90 OTHERS………………………………………………………………… 90-1 GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations.
