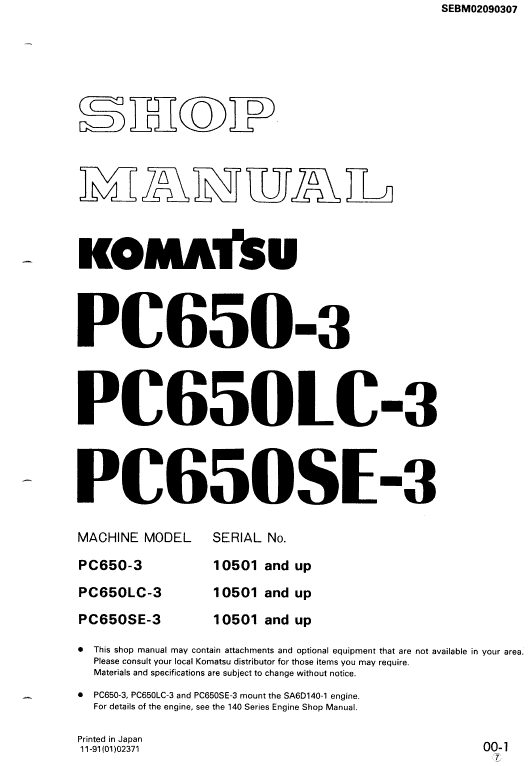

Komatsu PC650-3, PC650LC-3, PC650SE-3 Excavator Service Manual Workshop Guide

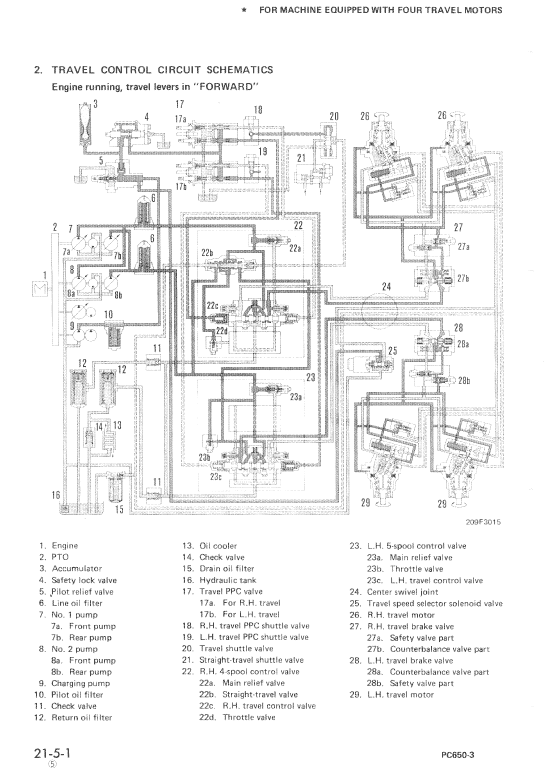

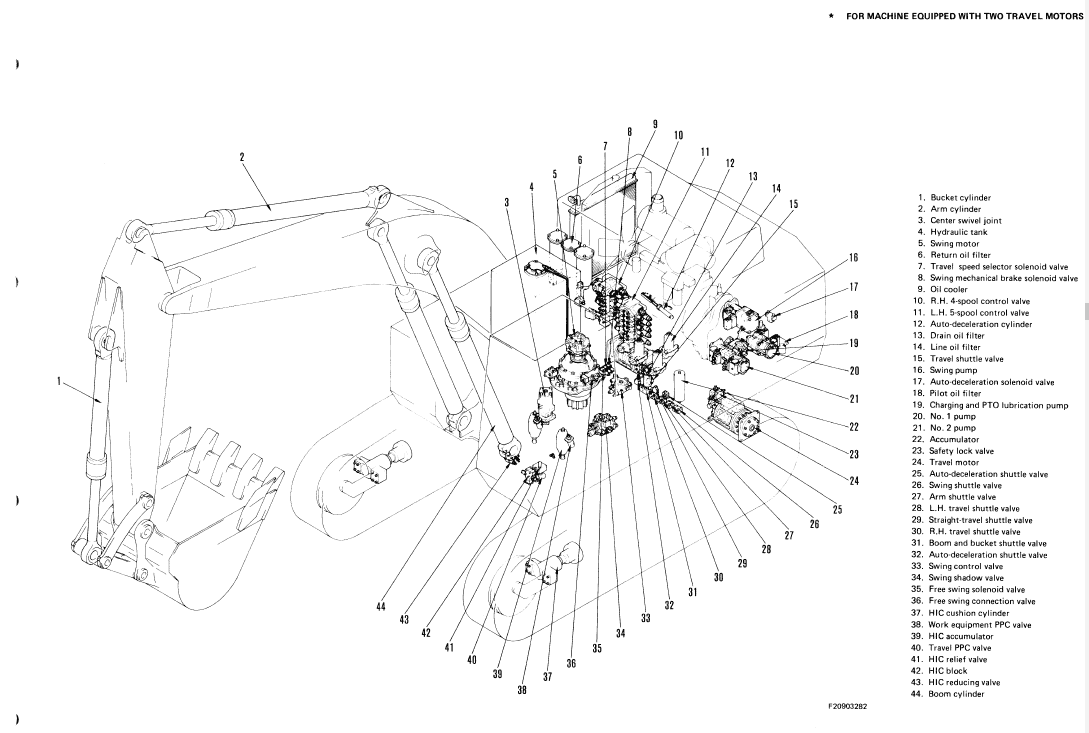

Manual Included: Shop Manual: 801 pages Specifications: Brand: Komatsu Model: PC650-3, PC650LC-3, PC650SE-3 Type: Excavator Serial Numbers: PC650-3: 10501 and up PC650LC-3: 10501 and up PC650SE-3: 10501 and up Manuals: Shop Manual Publication Number: SEBM02090307 Language: English Format: PDF Description Table of Contents 01 GENERAL 10 ENGINE 20 POWER TRAIN 30 UNDERCARRIAGE 50 AIR SYSTEM 60 HYDRAULIC SYSTEM 80 ELECTRIC AND ELECTRONIC SYSTEM GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator PC650-3, PC650LC-3, PC650SE-3 This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. When raising heavy components, use a hoist or crane. Check that the wire rope, chains and hooks are free from damage. Always use lifting equipment which has ample capacity. Install the lifting equipment at the correct places. Use a hoist or crane and operate slowly to prevent the component from hitting any other part. Do not work with any part still raised by the hoist or crane.
