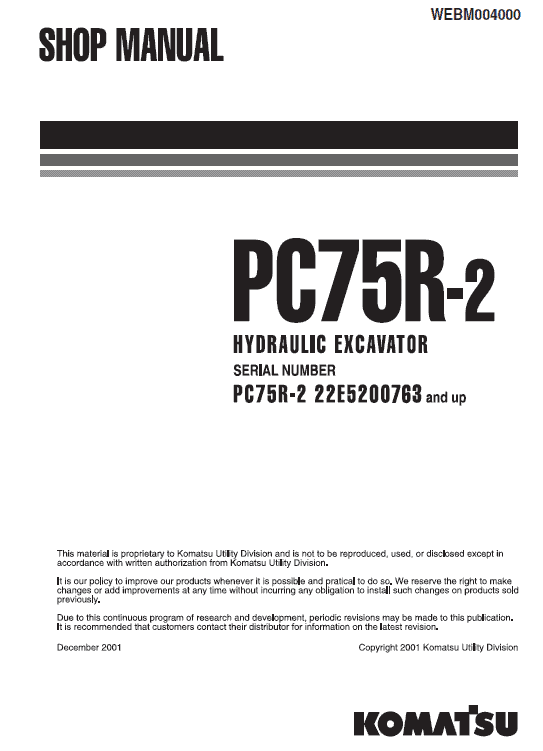

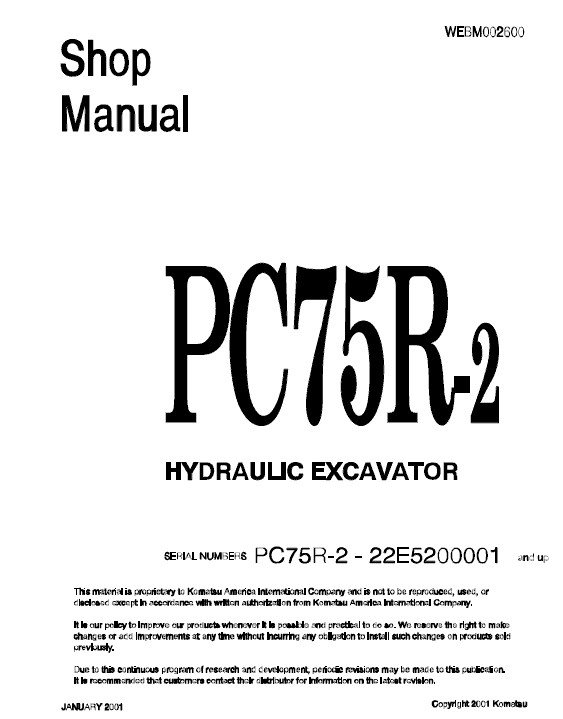

Komatsu PC75R-2 Excavator Service Manual Workshop Guide

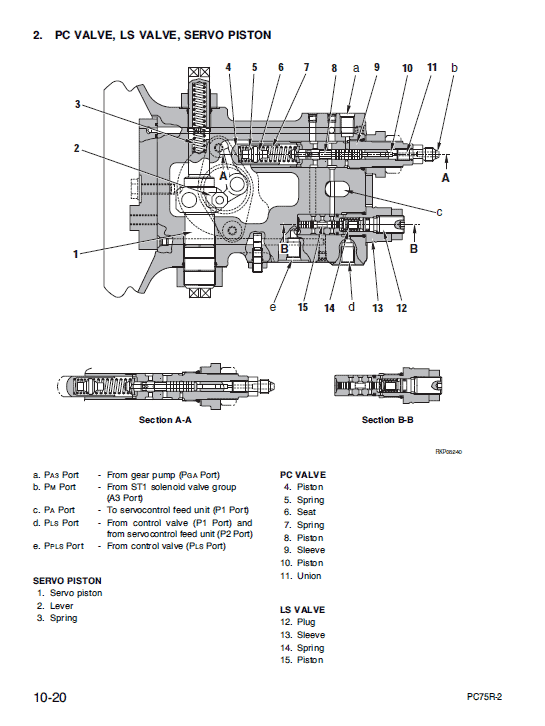

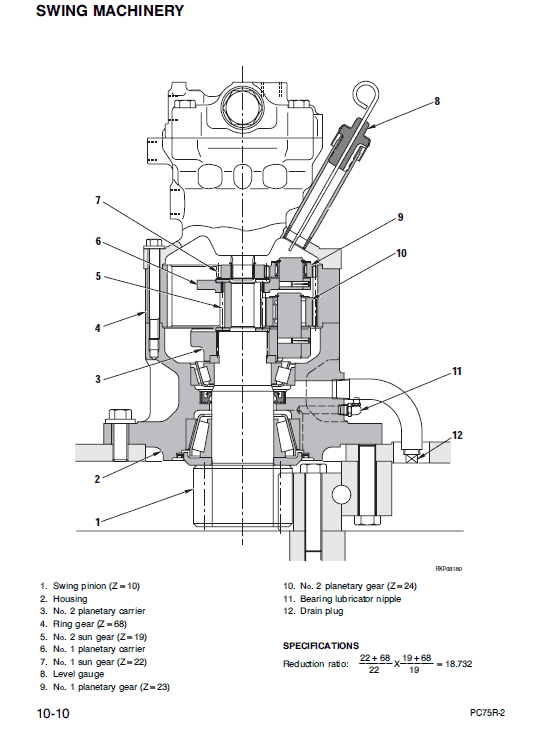

Manual Included: Shop Manual: 346 pages Specifications: Brand: Komatsu Model: PC75R-2 Type: Excavator Serial Number: WEBM004000- 22E5200763 and up WEBM002600- 22E5200001 and up Manuals: Shop Manual Publication Number: WEBM002600, WEBM004000 Language: English Format: PDF Description Table of Contents 10 STRUCTURE, FUNCTION 20 TESTING AND ADJUSTING 30 REMOVAL AND INSTALLATION 40 MAINTENANCE STANDARD GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY KOMATSU Excavator This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations.
