Komatsu WB140PS-2 and WB150PS-2 Backhoe Loader Service Manual Workshop Guide

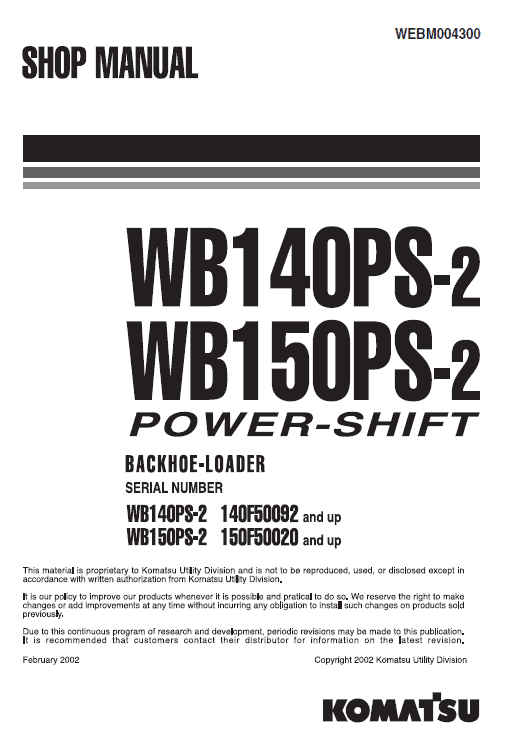

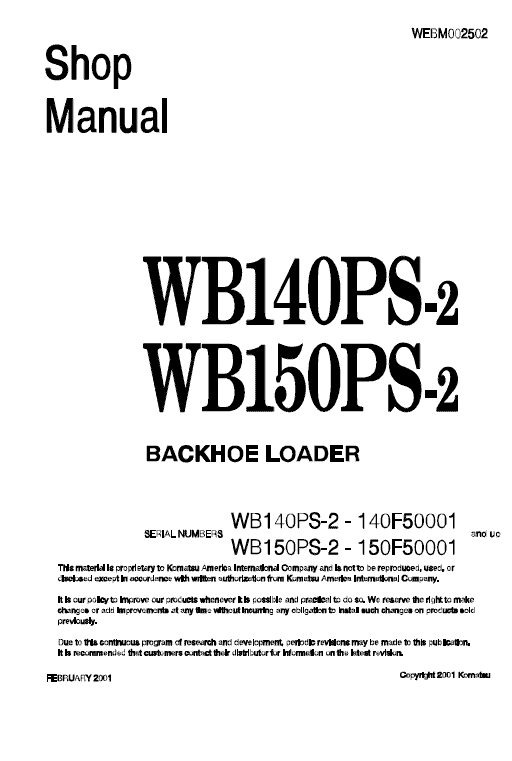

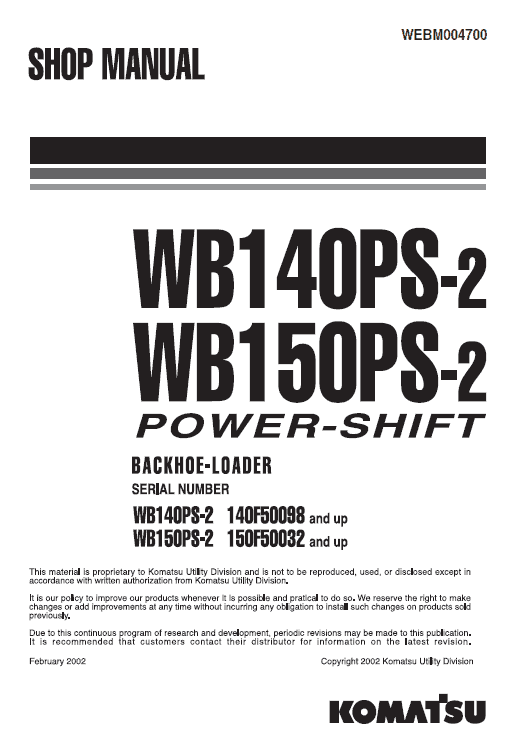

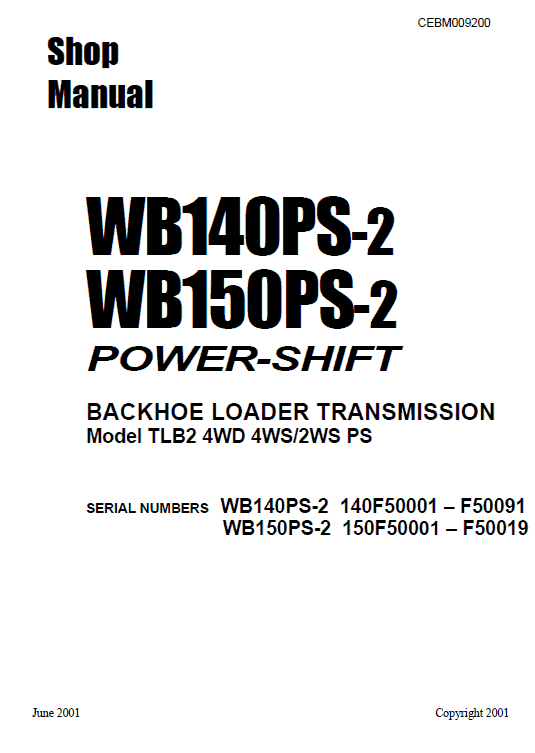

Manual Included: Shop Manual: 492 pages Specifications: Brand: Komatsu Model: WB140PS-2, WB150PS-2 Serial Number: (140F50001 and up,  150F50001 and up) applicable for WEBM002502 (140F50092 and up, 150F50029 and up) applicable for WEBM004300 (140F50098 and up, 150F50032 and up) applicable for WEBM004700 (140F5001 – F50091, 150F50001 – F50019) applicable for CEBM009200 Type: Backhoe Loader Manuals: Shop Manual Publication Numbers: WEBM002502, WEBM004300, WEBM004700, CEBM009200 Language: English Format: PDF Description Table of Contents 10 STRUCTURE AND FUNCTION……………………………………………………………………………. 10-1 20 TESTING AND ADJUSTING ……………………………………………………………………………….. 20-1 30 DISASSEMBLY AND ASSEMBLY………………………………………………………………………. 30-1 40 MAINTENANCE STANDARD………………………………………………………………………………. 40-1 GENERAL This section lists the general machine dimensions, performance specifications, component weights, and fuel, coolant and lubricant specification charts. STRUCTURE, FUNCTION AND MAINTENANCE STANDARD This section explains the structure and function of each component. It serves not only to give an understanding of the structure, but also serves as reference material for troubleshooting. TESTING, ADJUSTING AND TROUBLESHOOTING This section explains checks to be made before and after performing repairs, as well as adjustments to be made at completion of the checks and repairs. Troubleshooting charts correlating Problems to Causes are also mention in this section. DISASSEMBLY AND ASSEMBLY This section explains the order to be followed when removing, installing, disassembling or assembling each component, as well as precautions to be taken for these operations. When removing covers which are under internal pressure or under pressure from a spring, always leave two bolts in position on opposite sides. Slowly release the pressure, then slowly loosen the bolts to remove. When removing covers which are under internal pressure or under pressure from a spring, always leave two bolts in position on opposite sides. Slowly release the pressure, then slowly loosen the bolts to remove.
