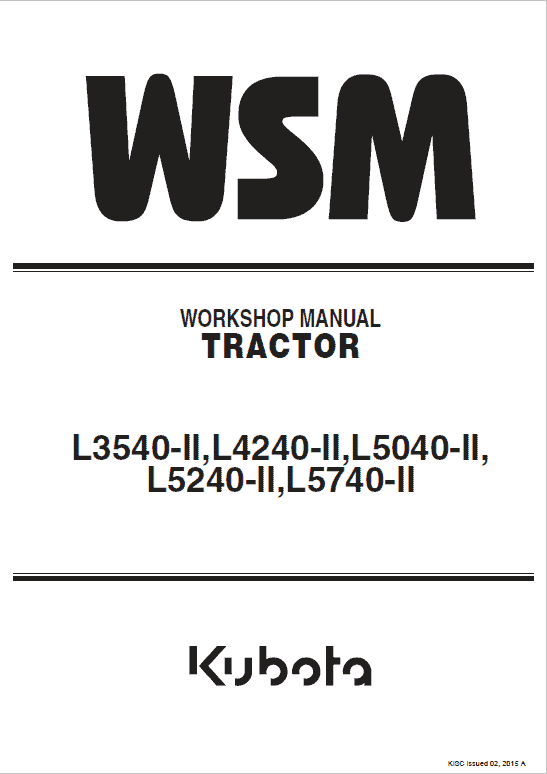

Kubota L3540-II, L4240-II, L5040-II, L5240-II, L5740-II Tractor Service Manual

Kubota L3540-II, L4240-II, L5040-II, L5240-II, L5740-II Tractor Workshop Manual – 672 Pages Format: PDF Publication: 9Y111-11670 Language: English Description Kubota L3540-II, L4240-II, L5040-II, L5240-II, L5740-II Tractor Workshop Service Manual Kubota Tractor Model L3540-II, L4240-II, L5040-II, L5240-II, L5740-II Format: PDF Publication: 9Y111-11670 Language: English Kubota L3540-II, L4240-II, L5040-II, L5240-II, L5740-II Tractor Workshop Manual – 672 Pages Table of Content of the Workshop Service Manual Information General Engine Clutch Transmission Rear Axle Brakes Front Axle Steering Hydraulic System Electrical System Cabin This Workshop Manual tells the servicing personnel about the mechanism, servicing and maintenance of the L3540-II, L4240-II, L5040-II, L5240-II, L5740-II. It contains 4 parts: "Information", "General", "Mechanism" and "Servicing". – Information This section contains information below. • Safety First • Safety Decal • Specification • Dimension – General This section contains information below. • Engine Identification • Model Identification • General Precautions • Maintenance Check List • Check and Maintenance • Special Tools – Mechanism This section contains information on the structure and the function of the unit. Before you continue with the subsequent sections, make sure that you read this section. Refer to the latest version of Workshop Manual (Code No. 9Y021-01870 / 9Y021-18200) for the diesel engine / tractor mechanism that this workshop manual does not include. – Servicing This section contains information below. • Troubleshooting • Servicing Specifications • Tightening Torques • Checking, Disassembling and Servicing Manual Extract – Oil Flow Oil is sucked into the charge pump through the a-port and pass through the HST filter. Then oil passes through the b-port and fed into the HST. Then oil is supplied to the main circuit of the HST as charge oil by means of the charge relief valve. Oil from the b-port passes through the c-port and is supplied to the Hi-Lo solenoid valve. When the Hi-Lo solenoid valve is switched, the Hi-Lo spool is switched by the oil pressure of the main circuit of the HST. When the Hi-Lo solenoid valve is switched "ON", the Hi-Lo spool is activated by the oil pressure of the main circuit of the HST. When the Hi-Lo solenoid valve is switched "OFF", the Hi-Lo spool is activated by the charge pressure. When the Hi-Lo spool is switched "ON", oil on the high-pressure side (forward or backward) passes through the spool (pressure selector) and flows to the piston H (9). Oil from the hydraulic pump is fed to the c-port of the regulator valve. The regulator valve sets the pressure of the PTO valve and proportional valve. Oil from the regulator valve is guided to the servo piston by the motion of the proportional valve. The proportional valve is controlled by the operation of the HST pedal. Oil from the regulator valve is supplied to the PTO valve and power steering controller.
