Kubota M96S, M108S Tractor Workshop Service Repair Manual

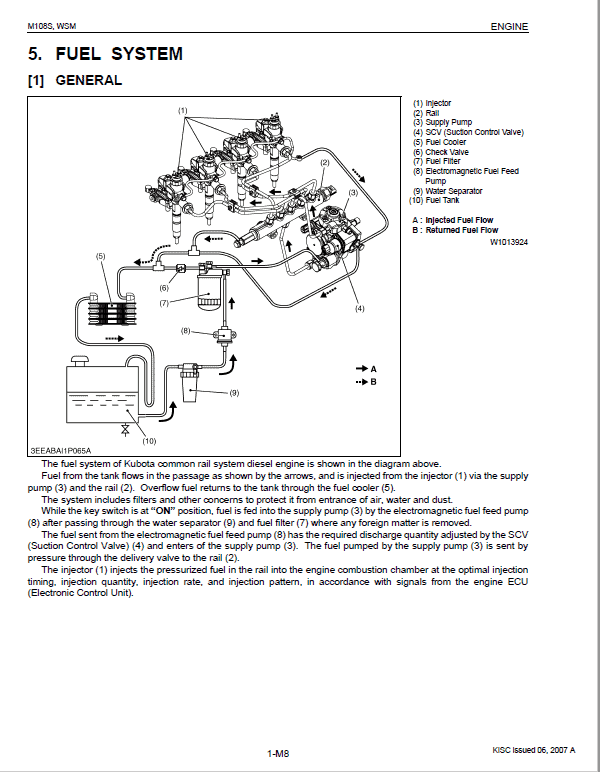

Kubota Tractor Model M96S, M108S Format: PDF Publication: 9Y111-00720 & 9Y111-04320 Language: English Kubota M96S, M108S Tractor Workshop Service Repair Manual – 523 Pages & 708 Pages Operators (Owners) Manual – 124 Pages Description Kubota M96S, M108S Tractor Workshop Service Repair Manual Kubota Tractor Model M96S, M108S Format: PDF Publication: 9Y111-00720 & 9Y111-04320 Language: English Kubota M96S, M108S Tractor Workshop Service Repair Manual – 523 Pages & 708 Pages Operators (Owners) Manual – 124 Pages Table of Content of the Workshop Service Manual This Workshop Manual has been prepared to provide servicing personnel with information on the mechanism, service and maintenance of M108S. It is divided into three parts, "General", "Mechanism" and "Servicing". ■ General Information on the tractor identification, the general precautions, maintenance check list, check and maintenance and special tools are described. ■ Mechanism Information on the construction and function are included. This part should be understood before proceeding with troubleshooting, disassembling and servicing. Refer to Diesel Engine / Tractor Mechanism Workshop Manual for the one which has not been described to this workshop manual. ■ Servicing Information on the troubleshooting, servicing specification lists, tightening torque, checking and adjusting, disassembling and assembling, and servicing which cover procedures, precautions, factory specifications and allowable limits. Regarding the failures of Common Rail System (CRS), refer to "DIAGNOSIS MANUAL" at the end of this manual INDICATION ITEMS The operator must check the conditions of the tractor before and during operations. To facilitate checking, the Easy-Checker (TM) lamps on the panel board is provided. ■ Easy Checker (TM) If the warning lamps in the Easy Checker (TM) come on during operation, immediately stop the engine, and find the cause as shown below. Never operate the tractor while Easy Checker (TM) lamp is on. ■ Electrical charge If the alternator is not charging the battery, the lamp (3) will come ON. If this should happen during operation, check the electrical charging system. ■ Engine oil pressure If the oil pressure in the engine goes below the prescribed level, the warning lamp (6) will come ON. If this should happen during operation, and it does not go off when the engine is accelerated to more than 1000 rpm, check level of engine oil. ■ Engine warning indicator This indicator serves the following two functions. If the indicator lights up, pinpoint the cause and take a proper measure. 1. Error with the engine control system If during operation the water temperature gauge reads an acceptable level but the warning lamp (3) in the Easy Checker (TM) comes on, stop the engine and get it restarted. If the error happens again, check the tractor. 2. Engine overheat If the water temperature gauge reads an unusual level and the warning lamp in the Easy Checker (TM) comes on, the engine may have got overheated. Check the tractor by referring to "TROUBLESHOOTING" section.
