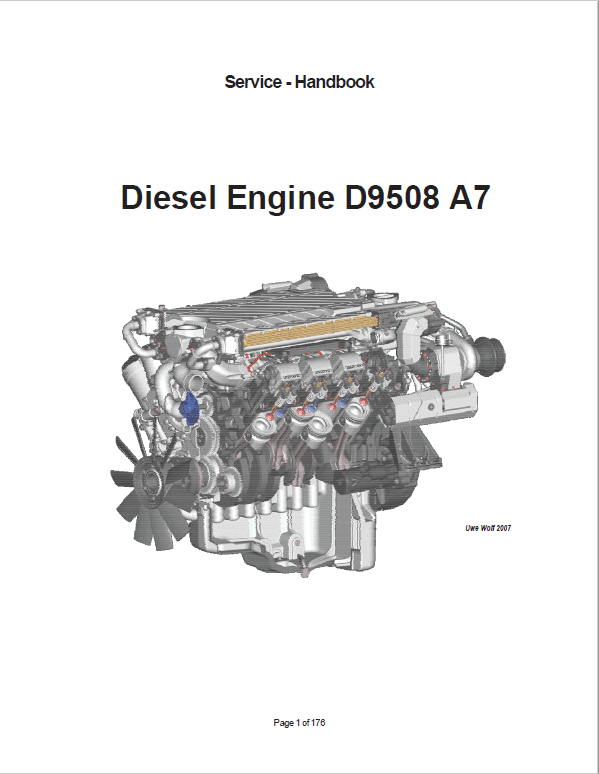

Liebherr D9508 A7 Engine Service Manual

Language: English Publication: 95016990602 Format: PDF March 2007 Liebherr D9508 A7 Engine Service Manual – 176 Pages Description Liebherr D9508 A7 Engine Service Manual Engine Applicable Model : D9508 A7 Language: English Publication: 95016990602 Format: PDF March 2007 Liebherr D9508 A7 Engine Service Manual – 176 Pages Table of Content of the Service Manual: Product description Description of basic engine Cylinder Head Lube oil circuit Water circuit Suction side Electronic injection system Mechanical injection system Description of accessories Electrical system Maintenance and inspection chart Mechanical fault list Electronic fault list This service handbook comprises a summary of the most important maintenance, adjustment and repair tasks, as well as details regarding technical data and tightening specifications for screws for Liebherr diesel engine D 9508 A 7 It is prerequisite that these tasks are performed by trained, specialist personnel. The repair work is divided into sections and sub-sections. Each sub-section begins with a page, which lists the necessary prerequisites for the work. The prerequisites for the work contain a summary of the essential specification for the represented repair section. The work prerequisites can take the form of a detailed description of the work. In the repair chapters the only torque tightening values quoted are those which differ from the values given in the standard for screw connections. Important instructions, which relate to technical safety and personal protection, are, as indicated in the following, given special emphasis. During all repair work the general safety instructions must be observed.
