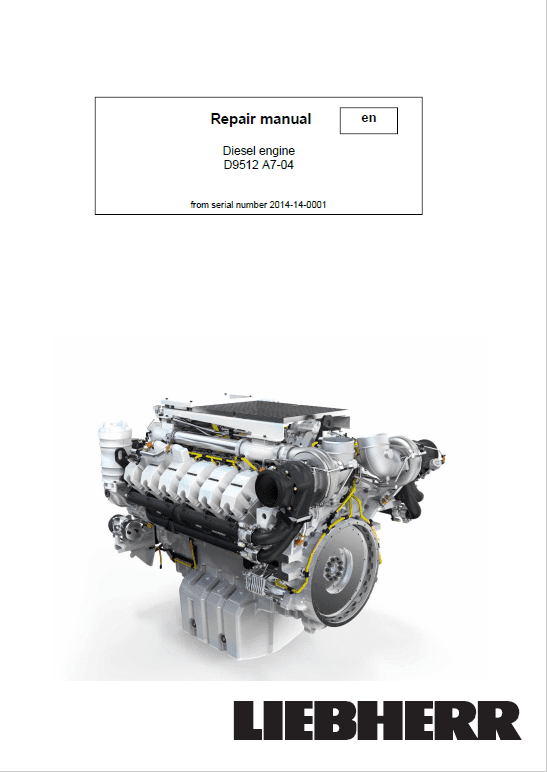

Liebherr D9512 A7-04 Engine Service Manual

Language: English Publication: 11387178 Format: PDF June 2015 Liebherr D9512 A7-04 Engine Service Manual – 282 Pages Description Liebherr D9512 A7-04 Engine Service Manual Engine Applicable Model : D9512 A7-04 Language: English Publication: 11387178 Format: PDF June 2015 Liebherr D9512 A7-04 Engine Service Manual – 282 Pages Table of Content of the Service Manual: General information Cylinder head, engine control and valves Engine Fuel system and injection system Belt drive Charge air and exhaust system Electrical system Lubrication system Cooling system Power take-off, air-conditioning compressor, fan These repair instructions provide you with technical documents to hand, which you can use for removal and installation, dismantling and assembling, setting tasks and technical data for Liebherr diesel engines. The operating instructions D9512 A7-04 / are part of these repair instructions and provide descriptions for maintenance and care. Screw connections are to be tightened according to the standard torques if no specific torque and tensioning instructions are stated. These are included in the "Technical data" chapter. Specific torques, tensioning instructions and instructions for mounting are included in the chapter "Technical data" and in the respective work descriptions. Chapter 1, "General information", provides you with an overview on the structure of this manual. The manual describes multiple types and construction states. The information applies to the types specified in the footer. This does not apply to specifications that are specific to types or serial numbers in the relevant descriptions. Certain illustrations in this manual may depict details that differ from your diesel engine. The relevant work must then be carried out in accordance with the work description provided. Improvements that have been made to the diesel engines may result in changes that are not mentioned in this man- ual.
