Liebherr TA 230, TA 240 Articulated Truck Service Manual

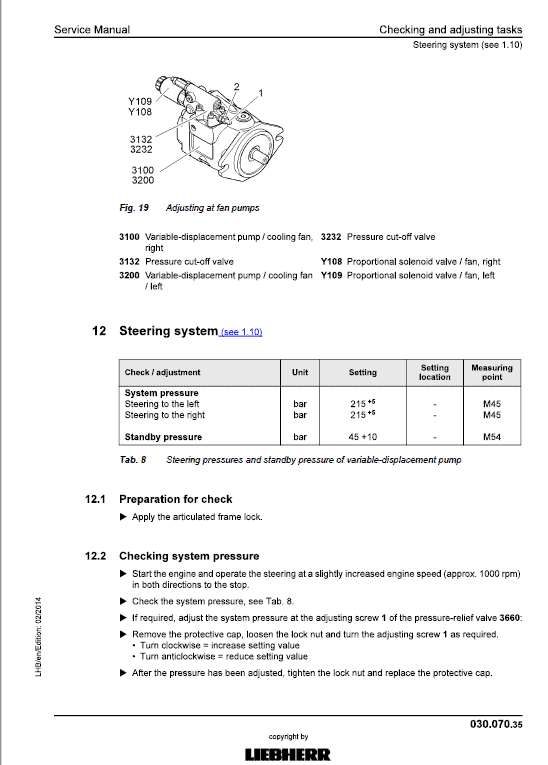

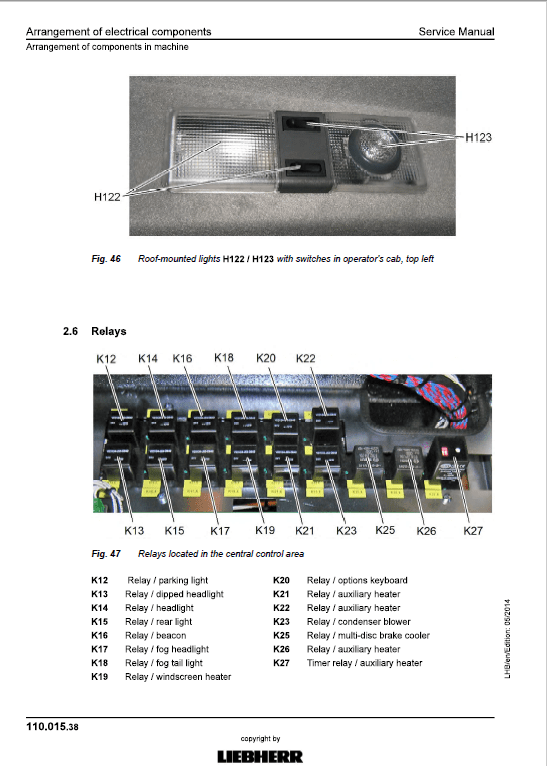

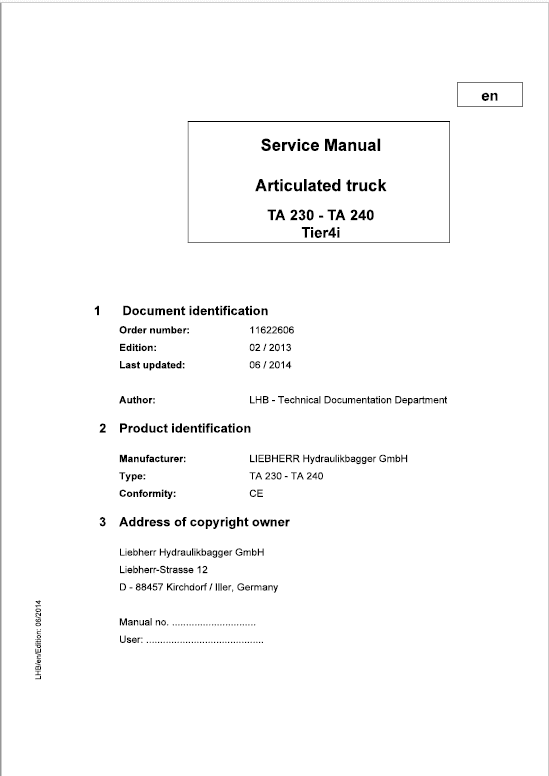

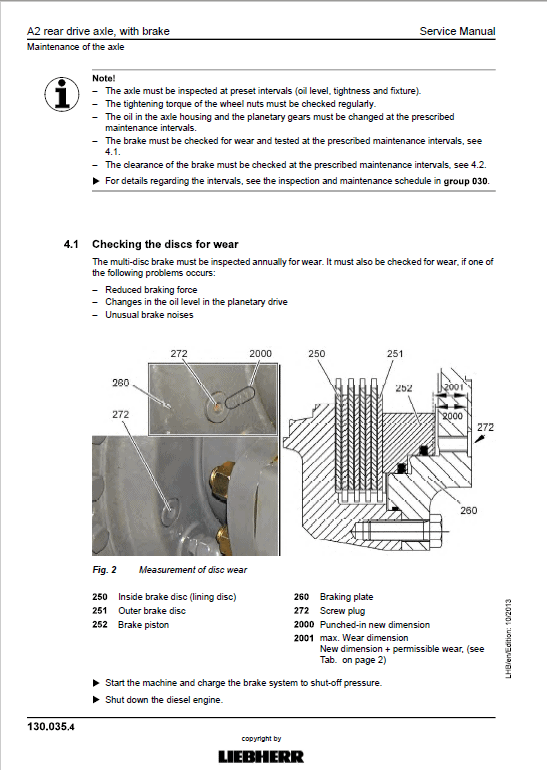

TA 230 Type 1156, 1386, 1387, 1587 TA 240 Type 1157 Language: English Publication: 11622606 & 11066140 Format: PDF January 2016 Liebherr TA 230, TA 240 Articulated Truck Service Manual – 1131 Pages & 937 Pages Operating manual – 214 Pages Description Liebherr L576 Type 1169 Articulated Truck Manual Articulated Truck Applicable Model : TA 230 Type 1156, 1386, 1387, 1587 TA 240 Type 1157 Language: English Publication: 11622606 & 11066140 Format: PDF January 2016 Liebherr TA 230, TA 240 Articulated Truck Service Manual – 1131 Pages & 937 Pages Operating manual – 214 Pages Table of Content of the Service Manual: Introduction Technical Data Maintenance Drive Group Cooling System Working Hydraulics Travel Hydraulics Hydraulic Components Steering System Brake System Electrical System Transfer Gear Axles Steel and parts of the basic machine Working Attachments Cab / heating / air conditioning Lubrication System Software / Hardware Options This manual contains technical data, design and functional descriptions as well as instructions for the operation and the adjustment of machine settings. The document includes a number of drawings, functional schematics and detailed views of units and assemblies of LIEBHERR articulated dump trucks. The documentation has been designed to support customer support services, but does of course not replace proper technical training and qualification of the user, and participation in LIEBHERR operator training courses. General basic technical information is not included in the manual. For operating instructions and information on spare parts, please refer to the separate documentation. The main groups are listed in the main group directory. The subgroups are listed on the first page of each main group section. The subgroup list also includes the machines and serial numbers to which the subgroup is relevant. In the event of minor changes, we will send you the amended page showing the current date. If an existing subgroup is completely revised and re-edited, the new version will be assigned a new subgroup number.
