Linkbelt 330LX (Tier 3) Excavator Service Repair Manual Workshop Guide

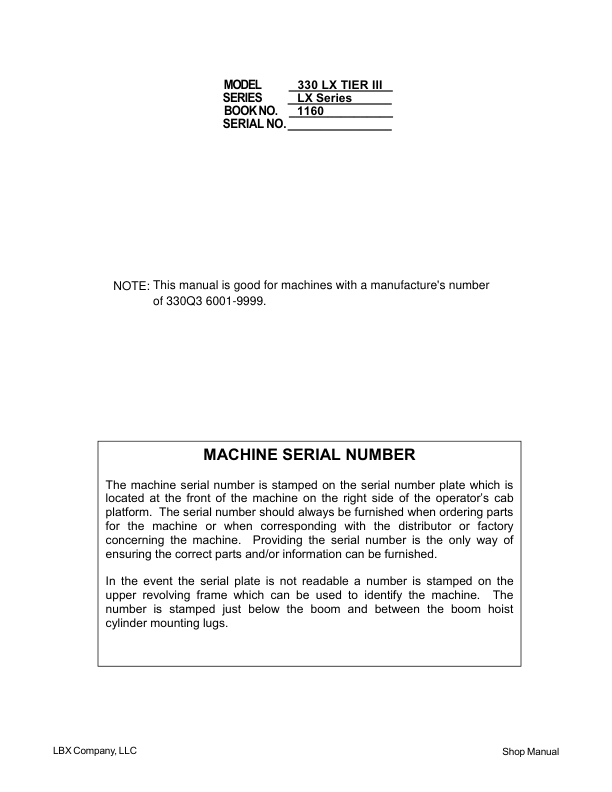

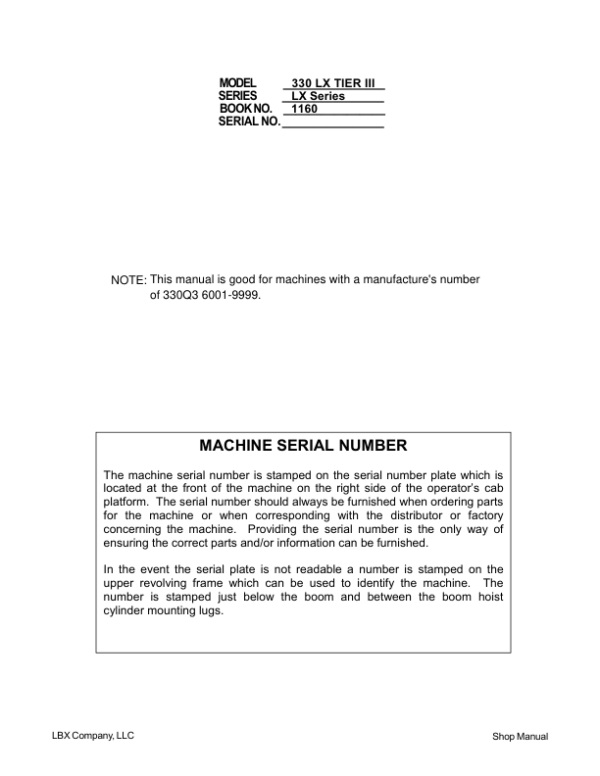

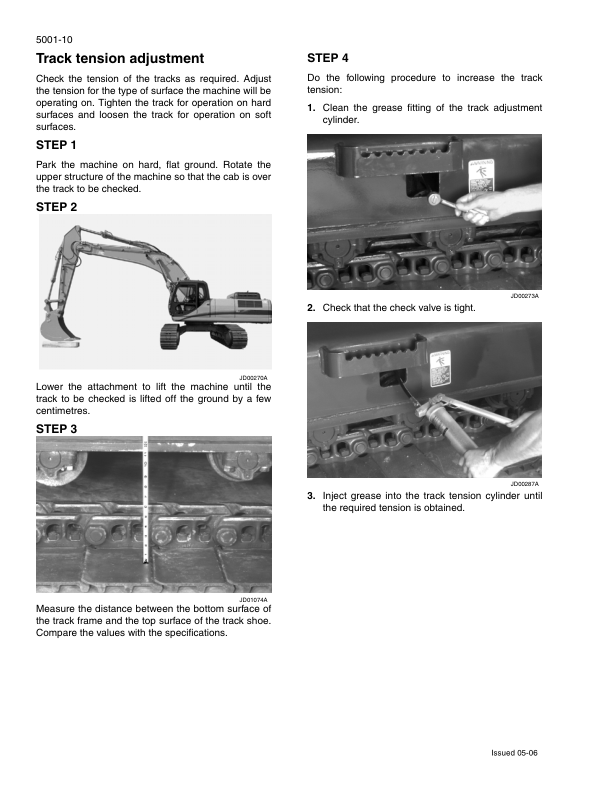

Manual Included: Service Repair Manual: 674 pages Operators Manual: 220 pages Hydraulic and Electrical Schematics Specifications: Brand: LinkBelt Model: 330LX Tier 3 (330Q3) Serial Number: 6001-9999 Type: Excavator Manuals: Repair and Operators Manual Publication Numbers: 1160 Language: English Format: PDF Description Table of Contents 1. General Information Safety, General Information and Standard Torque Data (1001) General Specifications and Special Torque Settings (1002) 2. Engine Removal and Installation of the Engine Radiator and Oil-Cooler (2001) Engine Specifications (*) Disassembly and Assembly of the Engine (*) 3. Fuel System Fuel Tank (3001) Fuel Engine System (*) 4. Electrical System Electrical System, Electrical and Electronic Troubleshooting (4001) Inspection and Maintenance of Batteries and Connecting a Booster Battery (4002) Main and Engine Electronic Control Boxes (4003) 5. Undercarriage Removal and Installation of Tracks (5001) Rollers (5003) Sprocket (5004) Idler Wheel and Tension Shock Absorber (5005) 6. Drive Train Drive Motor and Final Drive Transmission Removal and Installation (6001) Swing Reduction Gear, Removal and Installation (6003) Swing Reduction Gear, Disassembly and Assembly (6004) Travel Reduction Gear Assembly and Disassembly (6005) 7. Undercarriage Hydraulics Undercarriage Hydraulics Overview 8. Upper Structure Hydraulics Depressurizing and Decontaminating the Hydraulic System, Use of the Vacuum Pump and Bleeding the Components (8000) Specifications, Troubleshooting, Checks and Hydraulic Pressure Settings (8001) Hydraulic Reservoir Removal and Installation (8002) Main and Pilot Pumps, Removal and Installation (8003) Main Hydraulic Control Valve, Removal and Installation (8004) Attachment Cylinders, Removal and Installation (8005) Hydraulic Swivel, Removal and Installation (8006) Pilot Blocks, Removal and Installation (8007) Swing Motor, Removal and Installation (8008) Free Swing, Disassembly and Assembly (8009) Main Hydraulic Pump, Disassembly and Assembly (8010) Main Hydraulic Control Valve, Disassembly and Assembly (8011) Attachment Cylinders, Disassembly and Assembly (8012) Hand Control Levers, Disassembly and Assembly (8013) Foot Control Levers, Disassembly and Assembly (8014) Six-Solenoid Valves, Disassembly and Assembly (8015) Cushion Valve, Disassembly and Assembly (8016) Safety Valve (8017) Hydraulic Swivel, Disassembly and Assembly (8018) Swing Motor, Disassembly and Assembly (8019) Hydraulic Functions (8020) Travel Hydraulic Motor, Disassembly and Assembly (8021) Hydraulic Component Functions (8030) 9. Upper Structure Upper Structure, Turntable, and Counterweight (9002) Boom, Arm, and Bucket (9003) Seat and Seat Belt (9004) Cab and Cab Equipment (9005) Air Conditioning Unit Disassembly and Assembly (9007)
