Massey Ferguson 1160, 1180, 1190 Tractor Service Manual Workshop Guide

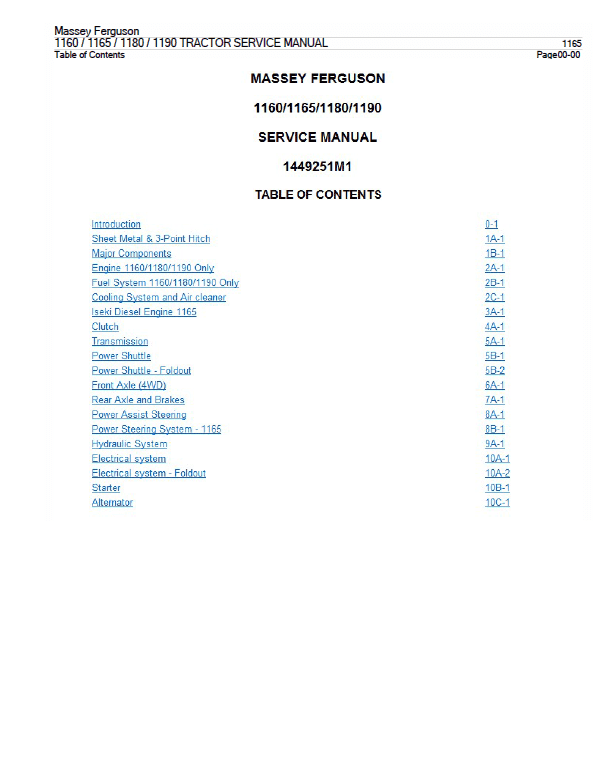

Massey Ferguson 1160, 1180, 1190 Tractors Workshop Manual – 663 Pages Format PDF Type: Workshop Manual Publication No: 1449251M1 Description Massey Ferguson 1160, 1180, 1190 Tractor Manual Model: Tractor 1160, 1180, 1190 Format PDF Type: Workshop Manual Publication No: 1449251M1 Massey Ferguson 1160, 1180, 1190 Tractors Workshop Manual – 663 Pages Manual Table of Content Introduction Sheet Metal & 3 Point Hitch Major Components Engine 1160/1180/1190 Fuel System Cooling System and Air Cleaner Iseki Diesel Engine Clutch Transmission Power Shuttle Front Axle Rear Axle Power Assist Steering Hydraulic System Electrical System Starter Alternator Rear Axle The rear axle system is of the central axle type, which contains final reduction gears, differential gears with differential lock, and brakes. The power from engine is transmitted to right and left wheel pinions through differential gears, and reduced in revolution to rear wheels by final drive gears. A wet, multi-disc, mechanical operated brake system is employed. Friction plates use can produce significant braking force with excellent durability. The two actuators work to push their friction plates in opposite direction, that is, outward, so that stable braking force can be realized in both forward and reverse movements of tractor. A differential gear and is activated by depressing differential lock pedal, resulting in same rotary speeds of both wheels.
